Focus Axis Event

A focus axis event is an event triggered by interacting with a game controller through the directional pad or joystick. This type of event is dispatched to the component that currently has focus and are then passed back to the application. Components that are focusable by default, such as Button, do not require additional attributes to handle focus axis events. For components that are not focusable by default, such as Text and Image, you can enable focus axis events by setting the focusable attribute to true.

NOTE

The focus axis event is supported since API version 15. Updates will be marked with a superscript to indicate their earliest API version.

onFocusAxisEvent

onFocusAxisEvent(event: Callback<FocusAxisEvent>): T

Triggered when any operation is performed with the game controller’s directional pad or joystick on the bound component.

Atomic service API: This API can be used in atomic services since API version 15.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
event	FocusAxisEvent	Yes	FocusAxisEvent object.

Return value

Type	Description
T	Current component.

FocusAxisEvent

Inherits from BaseEvent.

Atomic service API: This API can be used in atomic services since API version 15.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Description
axisMap	Map<AxisModel, number>	Axis value table of the focus axis event.
stopPropagation	Callback<void>	Stops a key event from bubbling upwards or downwards.

Example

This example demonstrates how to set up a focus axis event on a button. When the button gains focus, operating the game controller’s directional pad or joystick will trigger the onFocusAxisEvent callback.

// xxx.ets
@Entry
@Component
struct FocusAxisEventExample {
  @State text: string = ''
  @State axisValue: string = ''

  aboutToAppear(): void {
    this.getUIContext().getFocusController().activate(true)
  }

  aboutToDisappear(): void {
    this.getUIContext().getFocusController().activate(false)
  }

  build() {
    Column() {
      Button('FocusAxisEvent')
        .defaultFocus(true)
        .onFocusAxisEvent((event: FocusAxisEvent) => {
          let absX = event.axisMap.get(AxisModel.ABS_X);
          let absY = event.axisMap.get(AxisModel.ABS_Y);
          let absZ = event.axisMap.get(AxisModel.ABS_Z);
          let absRz = event.axisMap.get(AxisModel.ABS_RZ);
          let absGas = event.axisMap.get(AxisModel.ABS_GAS);
          let absBrake = event.axisMap.get(AxisModel.ABS_BRAKE);
          let absHat0X = event.axisMap.get(AxisModel.ABS_HAT0X);
          let absHat0Y = event.axisMap.get(AxisModel.ABS_HAT0Y);
          this.axisValue = 'absX: ' + absX + '; absY: ' + absY + '; absZ: ' + absZ + '; absRz: ' + absRz + '; absGas: ' + absGas + '; absBrake: ' + absBrake + '; absHat0X: ' + absHat0X + '; absHat0Y: ' + absHat0Y;
          this.text = JSON.stringify(event);
        })
      Text(this.axisValue).padding(15)
      Text(this.text).padding(15)
    }.height(300).width('100%').padding(35)
  }
}

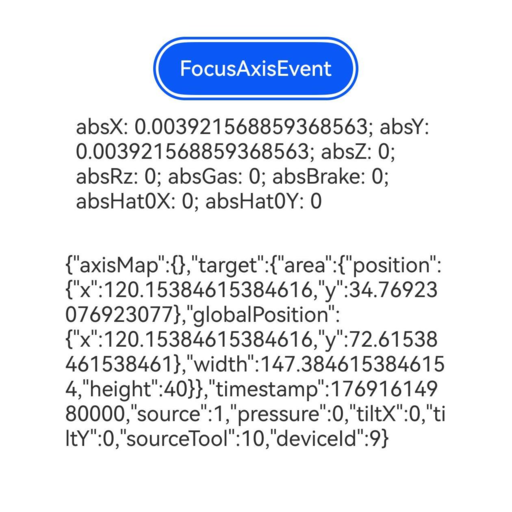

When the game controller’s joystick is moved, the onFocusAxisEvent callback is triggered, and the axis values are updated accordingly.

onFocusAxisEvent
