ComposeTitleBar

ComposeTitleBar represents a common title bar that contains a title, subtitle (optional), and profile picture (optional). It can come with a Back button for switching between pages of different levels.

NOTE

This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { ComposeTitleBar } from '@kit.ArkUI'

Child Components

Not supported

Attributes

The universal attributes are not supported.

ComposeTitleBar

ComposeTitleBar({item?: ComposeTitleBarMenuItem, title: ResourceStr, subtitle?: ResourceStr, menuItems?: Array<ComposeTitleBarMenuItem>})

Decorator: @Component

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
item	ComposeTitleBarMenuItem	No	A single menu item for the profile picture on the left.
title	ResourceStr	Yes	Title.
subtitle	ResourceStr	No	Subtitle.
menuItems	Array<ComposeTitleBarMenuItem>	No	List of menu items on the right.

NOTE

The input parameter cannot be undefined, that is, calling ComposeTitleBar(undefined) is not allowed.

ComposeTitleBarMenuItem

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
value	ResourceStr	Yes	Icon resource. Atomic service API: This API can be used in atomic services since API version 11.
symbolStyle¹⁸⁺	SymbolGlyphModifier	No	Symbol icon resource, which has higher priority than value. Atomic service API: This API can be used in atomic services since API version 18.
label¹³⁺	ResourceStr	No	Icon label. Atomic service API: This API can be used in atomic services since API version 13.
isEnabled	boolean	No	Whether to enable the item. Default value: false true: The item is enabled. false: The item is disabled. This property cannot be triggered by the item property. Atomic service API: This API can be used in atomic services since API version 11.
action	() => void	No	Action to perform. This parameter is not available for the item attribute. Atomic service API: This API can be used in atomic services since API version 11.
accessibilityLevel¹⁸⁺	string	No	Accessibility level. It determines whether the component can be recognized by accessibility services. The options are as follows: “auto”: It is treated as “yes” by the system. “yes”: The component can be recognized by accessibility services. “no”: The component cannot be recognized by accessibility services. “no-hide-descendants”: Neither the component nor its child components can be recognized by accessibility services. Default value: “auto” Atomic service API: This API can be used in atomic services since API version 18.
accessibilityText¹⁸⁺	ResourceStr	No	Accessibility text, that is, accessible label name. If a component does not contain text information, it will not be announced by the screen reader when selected. In this case, the screen reader user cannot know which component is selected. To solve this problem, you can set accessibility text for components without text information. When such a component is selected, the screen reader announces the specified accessibility text, informing the user which component is selected. Default value: value of the label property if it is set and an empty string otherwise. Atomic service API: This API can be used in atomic services since API version 18.
accessibilityDescription¹⁸⁺	ResourceStr	No	Accessible description. You can provide comprehensive text explanations to help users understand the operation they are about to perform and its potential consequences, especially when these cannot be inferred from the component’s attributes and accessibility text alone. If a component contains both text information and the accessible description, the text is announced first and then the accessible description, when the component is selected. Default value: “Double-tap to activate” Atomic service API: This API can be used in atomic services since API version 18.

Events

The universal events are not supported.

Example

Example 1: Implementing a Simple Title Bar

This example showcases how to implement a simple title bar, a title bar with a back arrow, and a title bar with a list of menu items on the right side.

import { ComposeTitleBar, promptAction, ComposeTitleBarMenuItem } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  // Define an array of menu items for the right side of the title bar.
  private menuItems: Array<ComposeTitleBarMenuItem> = [
    {
      // Resource for the menu icon
      value: $r('sys.media.ohos_save_button_filled'),
      // Enable the icon.
      isEnabled: true,
      // Action triggered when the menu item is clicked.
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.media.ohos_ic_public_copy'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.media.ohos_ic_public_edit'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.media.ohos_ic_public_remove'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
  ]

  build() {
    Row() {
      Column() {
        // Divider.
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 1),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 2),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems,
        })
        Divider().height(2).color(0xCCCCCC)
        // Define the title bar with a profile picture.
        ComposeTitleBar({
          menuItems: [{ isEnabled: true, value: $r('sys.media.ohos_save_button_filled'),
            action: () => promptAction.showToast({ message: "show toast index 1" })
          }],
          title: "Title",
          subtitle: "Subtitle",
          item: { isEnabled: true, value: $r('sys.media.ohos_app_icon') }
        })
        Divider().height(2).color(0xCCCCCC)
      }
    }.height('100%')
  }
}

en-us_image_composetitlebar_example01

Example 2: Implementing Screen Reader Announcement for the Custom Button on the Right Side

This example customizes the screen reader announcement text by setting the accessibilityText, accessibilityDescription, and accessibilityLevel properties of the custom button on the right side of the title bar.

import { ComposeTitleBar, promptAction, ComposeTitleBarMenuItem } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  // Define an array of menu items for the right side of the title bar.
  private menuItems: Array<ComposeTitleBarMenuItem> = [
    {
      // Resource for the menu icon
      value: $r('sys.media.ohos_save_button_filled'),
      // Enable the icon.
      isEnabled: true,
      // Action triggered when the menu item is clicked.
      action: () => promptAction.showToast({ message: "show toast index 1" }),
      // The screen reader will prioritize this text over the label.
      accessibilityText: 'Save',
      // The screen reader can focus on this item.
      accessibilityLevel: 'yes',
      // The screen reader will ultimately announce this text.
      accessibilityDescription: 'Tap to save the icon'
    },
    {
      value: $r('sys.media.ohos_ic_public_copy'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" }),
      accessibilityText: 'Copy',
      // The screen reader will not focus on this item.
      accessibilityLevel: 'no',
      accessibilityDescription: 'Tap to copy the icon'
    },
    {
      value: $r('sys.media.ohos_ic_public_edit'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" }),
      accessibilityText: 'Edit',
      accessibilityLevel: 'yes',
      accessibilityDescription: 'Tap to edit the icon'
    },
    {
      value: $r('sys.media.ohos_ic_public_remove'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" }),
      accessibilityText: 'Remove',
      accessibilityLevel: 'yes',
      accessibilityDescription: 'Tap to remove the icon'
    },
  ]

  build() {
    Row() {
      Column() {
        // Divider.
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 1),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 2),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems,
        })
        Divider().height(2).color(0xCCCCCC)
        // Define the title bar with a profile picture.
        ComposeTitleBar({
          menuItems: [{ isEnabled: true, value: $r('sys.media.ohos_save_button_filled'),
            action: () => promptAction.showToast({ message: "show toast index 1" })
          }],
          title: "Title",
          subtitle: "Subtitle",
          item: { isEnabled: true, value: $r('sys.media.ohos_app_icon') }
        })
        Divider().height(2).color(0xCCCCCC)
      }
    }.height('100%')
  }
}

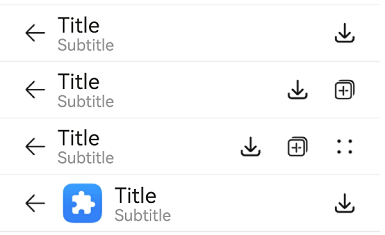

en-us_image_composetitlebar_example02

Example 3: Setting the Symbol Icon

This example demonstrates how to use symbolStyle in ComposeTitleBarMenuItem to set custom symbol icons.

import { ComposeTitleBar, promptAction, ComposeTitleBarMenuItem, SymbolGlyphModifier } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  // Define an array of menu items for the right side of the title bar.
  private menuItems: Array<ComposeTitleBarMenuItem> = [
    {
      // Resource for the menu icon
      value: $r('sys.symbol.house'),
      // Menu symbol icon
      symbolStyle: new SymbolGlyphModifier($r('sys.symbol.bell')).fontColor([Color.Red]),
      // Enable the icon.
      isEnabled: true,
      // Action triggered when the menu item is clicked.
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.symbol.house'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.symbol.car'),
      symbolStyle: new SymbolGlyphModifier($r('sys.symbol.heart')).fontColor([Color.Pink]),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
    {
      value: $r('sys.symbol.car'),
      isEnabled: true,
      action: () => promptAction.showToast({ message: "show toast index 1" })
    },
  ]

  build() {
    Row() {
      Column() {
        // Divider.
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 1),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems.slice(0, 2),
        })
        Divider().height(2).color(0xCCCCCC)
        ComposeTitleBar({
          title: "Title",
          subtitle: "Subtitle",
          menuItems: this.menuItems,
        })
        Divider().height(2).color(0xCCCCCC)
        // Define the title bar with a profile picture.
        ComposeTitleBar({
          menuItems: [{ isEnabled: true, value: $r('sys.symbol.heart'),
            action: () => promptAction.showToast({ message: "show toast index 1" })
          }],
          title: "Title",
          subtitle: "Subtitle",
          item: { isEnabled: true, value: $r('sys.media.ohos_app_icon') }
        })
        Divider().height(2).color(0xCCCCCC)
      }
    }.height('100%')
  }
}

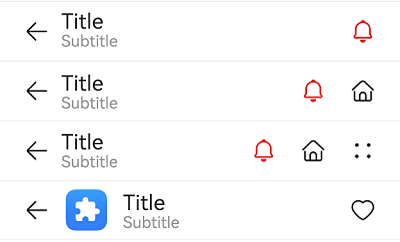

Setting the symbol icon
