Dialog Box (Dialog)

The dialog box is a modal window that commands attention while retaining the current context. It is frequently used to draw the user’s attention to vital information or prompt the user to complete a specific task. As all modal windows, this component requires the user to interact before exiting.

NOTE

This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { TipsDialog, SelectDialog, ConfirmDialog, AlertDialog, LoadingDialog, CustomContentDialog } from '@kit.ArkUI'

Child Components

Not supported

Attributes

The universal attributes are not supported.

TipsDialog

TipsDialog({controller: CustomDialogController, imageRes: Resource, imageSize?: SizeOptions, title?: ResourceStr, content?: ResourceStr, checkTips?: ResourceStr, ischecked?: boolean, checkAction?: (isChecked: boolean) => void, primaryButton?: ButtonOptions, secondaryButton?: ButtonOptions})

Displays an image-attached confirmation dialog box. If necessary, the confirmation dialog box can be displayed in a graphical manner.

Decorator type: @CustomDialog

System capability: SystemCapability.ArkUI.ArkUI.Full

SelectDialog

SelectDialog({controller: CustomDialogController, title: ResourceStr, content?: ResourceStr, selectedIndex?: number, confirm?: ButtonOptions, radioContent: Array<SheetInfo>})

Displays a dialog box from which the user can select options presented in a list or grid.

Decorator type: @CustomDialog

System capability: SystemCapability.ArkUI.ArkUI.Full

ConfirmDialog

ConfirmDialog({controller: CustomDialogController, title: ResourceStr, content?: ResourceStr, checkTips?: ResourceStr, ischecked?: boolean, primaryButton?: ButtonOptions, secondaryButton?: ButtonOptions})

Displays an error dialog box that informs the user of an operational error (for example, a network error or low battery level) or an incorrect operation (for example, fingerprint enrollment).

Decorator type: @CustomDialog

System capability: SystemCapability.ArkUI.ArkUI.Full

AlertDialog

AlertDialog({controller: CustomDialogController, primaryTitle?: ResourceStr, secondaryTitle?: ResourceStr, content: ResourceStr, primaryButton?: ButtonOptions, secondaryButton?: ButtonOptions})

Displays an alert dialog box to prompt the user to confirm an action that is irreversible and may cause serious consequences, such as deletion, reset, editing cancellation, and stop.

Decorator type: @CustomDialog

System capability: SystemCapability.ArkUI.ArkUI.Full

LoadingDialog

LoadingDialog({controller: CustomDialogController, content?: ResourceStr})

Displays a loading dialog box to inform the user of the operation progress.

Decorator type: @CustomDialog

System capability: SystemCapability.ArkUI.ArkUI.Full

CustomContentDialog¹²⁺

CustomContentDialog({controller: CustomDialogController, contentBuilder: () => void, primaryTitle?: ResourceStr, secondaryTitle?: ResourceStr, contentAreaPadding?: Padding, buttons?: ButtonOptions[]})

Displays a dialog box that contains custom content and operation area.

Decorator type: @CustomDialog

Atomic service API: This API can be used in atomic services since API version 12.

System capability: SystemCapability.ArkUI.ArkUI.Full

PopoverDialog¹⁴⁺

PopoverDialog({visible: boolean, popover: PopoverOptions, targetBuilder: Callback<void>})

Displays a popover dialog box that is positioned relative to the target component. This dialog box can contain a variety of content types, including: TipsDialog, SelectDialog, ConfirmDialog, AlertDialog, LoadingDialog, and CustomContentDialog.

Decorator: \@Component

Atomic service API: This API can be used in atomic services since API version 14.

System capability: SystemCapability.ArkUI.ArkUI.Full

ButtonOptions

System capability: SystemCapability.ArkUI.ArkUI.Full

NOTE

The priority of buttonStyle and role is higher than that of fontColor and background. If buttonStyle and role are at the default values, the settings of fontColor and background take effect. If defaultFocus is set for multiple buttons, the default focus is the first button in the display order that has defaultFocus set to true.

PopoverOptions¹⁴⁺

Defines a set of options used to configure the popover dialog box, including its content and position.

Inherits CustomPopupOptions.

NOTE

The default value of radius is 32vp.

Atomic service API: This API can be used in atomic services since API version 14.

System capability: SystemCapability.ArkUI.ArkUI.Full

Events

The universal events are not supported.

Example

Example 1: Dialog Box with an Image Above Text

This example implements a dialog box with an image above the text content, through the use of imageRes, content, and other properties.

import { TipsDialog } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  dialogControllerImage: CustomDialogController = new CustomDialogController({
    builder: TipsDialog({
      imageRes: $r('sys.media.ohos_ic_public_voice'),
      content: 'Delete this app?',
      primaryButton: {
        value: 'Cancel',
        action: () => {
          console.info('Callback when the first button is clicked')
        },
      },
      secondaryButton: {
        value: 'Delete',
        role: ButtonRole.ERROR,
        action: () => {
          console.info('Callback when the second button is clicked')
        }
      },
      onCheckedChange: () => {
        console.info('Callback when the checkbox is clicked')
      }
    }),
  })

  build() {
    Row() {
      Stack() {
        Column(){
          Button("Text Below Image")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogControllerImage.open()
            })
        }.margin({bottom: 300})
      }.align(Alignment.Bottom)
      .width('100%').height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 2: List-only Dialog Box

This example presents a dialog box consisting solely of a list defined with selectedIndex and radioContent.

import { SelectDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  // Set the index of the default selected option.
  radioIndex = 0;
  dialogControllerList: CustomDialogController = new CustomDialogController({
    builder: SelectDialog({
      title:'Title',
      selectedIndex: this.radioIndex,
      confirm: {
        value: 'Cancel',
        action: () => {},
      },
      radioContent: [
        {
          title: 'List item',
          action: () => {
            this.radioIndex = 0
          }
        },
        {
          title: 'List item',
          action: () => {
            this.radioIndex = 1
          }
        },
        {
          title: 'List item',
          action: () => {
            this.radioIndex = 2
          }
        },
      ]
    }),
  })

  build() {
    Row() {
      Stack() {
        Column() {
          Button("List Dialog Box")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogControllerList.open()
            })
        }.margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 3: Dialog Box with Text and Check Boxes

This example illustrates a dialog box that combines text content with check boxes defined with content and checkTips.

import { ConfirmDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  isChecked = false;
  dialogControllerCheckBox: CustomDialogController = new CustomDialogController({
    builder: ConfirmDialog({
      title:'Title',
      content: 'This is where content is displayed. This is where content is displayed.',
      // Selected state of the check box
      isChecked: this.isChecked,
      // Content of the check box
      checkTips: 'Don't ask again after denying',
      primaryButton: {
        value: 'Deny',
        action: () => {},
      },
      secondaryButton: {
        value: 'Allow',
        action: () => {
          this.isChecked = false
          console.info('Callback when the second button is clicked')
        }
      },
      onCheckedChange: () => {
        console.info('Callback when the checkbox is clicked')
      },
    }),
    autoCancel: true,
    alignment: DialogAlignment.Bottom
  })

  build() {
    Row() {
      Stack() {
        Column(){
          Button("Text + Check Box Dialog Box")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogControllerCheckBox.open()
            })
        }
        .margin({bottom: 300})
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 4: Text-only Dialog Box

This example demonstrates a simple text-only dialog box defined with primaryTitle, secondaryTitle, and content.

import { AlertDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  dialogControllerConfirm: CustomDialogController = new CustomDialogController({
    builder: AlertDialog({
      primaryTitle: 'Primary title',
      secondaryTitle: 'Secondary title',
      content: 'This is where content is displayed.',
      primaryButton: {
        value: 'Cancel',
        action: () => {
        },
      },
      secondaryButton: {
        value: 'OK',
        role: ButtonRole.ERROR,
        action: () => {
          console.info('Callback when the second button is clicked')
        }
      },
    }),
  })

  build() {
    Row() {
      Stack() {
        Column() {
          Button("Text Dialog Box")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogControllerConfirm.open()
            })
        }
        .margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 5: Loading Dialog Box

This example implements a loading dialog box that contains a progress indicator.

import { LoadingDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  dialogControllerProgress: CustomDialogController = new CustomDialogController({
    builder: LoadingDialog({
      content: 'This is where content is displayed.',
    }),
  })

  build() {
    Row() {
      Stack() {
        Column() {
          Button("Progress Dialog Box")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogControllerProgress.open()
            })
        }
        .margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 6: Dialog Box with a Custom Theme

This example presents a dialog box with a custom theme, through the use of content, theme, and other properties.

import { CustomColors, CustomTheme, LoadingDialog } from '@kit.ArkUI'

class CustomThemeImpl implements CustomTheme {
  colors?: CustomColors;

  constructor(colors: CustomColors) {
    this.colors = colors;
  }
}

// Custom text content and colors for the dialog box theme
class CustomThemeColors implements CustomColors {
  fontPrimary = '#ffd0a300';
  iconSecondary = '#ffd000cd';
}

@Entry
@Component
struct Index {
  @State customTheme: CustomTheme = new CustomThemeImpl(new CustomThemeColors());
  dialogController: CustomDialogController = new CustomDialogController({
    builder: LoadingDialog({
      content: 'text',
      theme: this.customTheme,
    })
  });

  build() {
    Row() {
      Stack() {
        Column() {
          Button('dialog')
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogController.open();
            })
        }
        .margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 7: Dialog Box in Custom Color Mode

This example presents a dialog box in the specified light or dark mode, through the use of content, themeColorMode, and other properties.

import { LoadingDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  dialogController: CustomDialogController = new CustomDialogController({
    builder: LoadingDialog({
      content: 'Text',
      themeColorMode: ThemeColorMode.DARK, // Set the color mode to dark mode.
    })
  });

  build() {
    Row() {
      Stack() {
        Column() {
          Button('Dialog')
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogController.open();
            })
        }
        .margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

Example 8: Dialog Box with Custom Content

This example implements a dialog box with custom content defined with contentBuilder and buttons.

import { CustomContentDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  dialogController: CustomDialogController = new CustomDialogController({
    builder: CustomContentDialog({
      primaryTitle: 'Primary title',
      secondaryTitle: 'Secondary title',
      contentBuilder: () => {
        this.buildContent();
      },
      buttons: [
        {
          value: 'Button 1',
          buttonStyle: ButtonStyleMode.TEXTUAL,
          action: () => {
            console.info('Callback when the button is clicked')
          }
        },
        {
          value: 'Button 2',
          buttonStyle: ButtonStyleMode.TEXTUAL,
          role: ButtonRole.ERROR
        }
      ],
    }),
  });

  build() {
    Column() {
      Button("Dialog Box with Custom Content")
        .onClick(() => {
          this.dialogController.open()
        })
    }
    .width('100%')
    .height('100%')
    .justifyContent(FlexAlign.Center)
  }

  // Custom content area of the dialog box
  @Builder
  buildContent(): void {
    Column() {
      Text('Content area')
    }
    .width('100%')
  }
}

Example 9: Popover Dialog Box

This example demonstrates a popover dialog box for alert purposes, through the use of visible, popover, targetBuilder, and other properties.

import { AlertDialog, PopoverDialog, PopoverOptions } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  @State isShow: boolean = false;
  @State popoverOptions: PopoverOptions = {
    builder: () => {
      this.dialogBuilder();
    },
    width: 320,
  }

  // Content of the popover dialog box
  @Builder dialogBuilder() {
    AlertDialog({
      content: 'Popover dialog box',
      primaryButton: {
        value: 'Cancel',
        action: () => {
          this.isShow = false;
        },
      },
      secondaryButton: {
        value: 'OK',
        action: () => {
          this.isShow = false;
        },
      },
    });
  }

  // Builder for the button that triggers the popover dialog box
  @Builder buttonBuilder() {
    Button('Target Component')
    .onClick(() => {
      this.isShow = true;
    });
  }

  build() {
    Column() {
      PopoverDialog({
        visible: this.isShow,
        popover: this.popoverOptions,
        targetBuilder: () => {
          this.buttonBuilder();
        },
      })
    }
  }
}

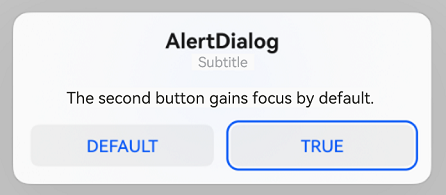

Example 10: Setting the Default Focus Button for a Dialog Box

This example demonstrates how to set a default focus button in a dialog box using AlertDialog, including the defaultFocus property.

import { AlertDialog } from '@kit.ArkUI'

@Entry
@Component
struct Index {
  dialogController: CustomDialogController = new CustomDialogController({
    builder: AlertDialog({
      primaryTitle: 'AlertDialog',
      secondaryTitle: 'Subtitle',
      content: 'The second button gains focus by default.',
      primaryButton: {
        value: 'DEFAULT',
        action: () => {}
      },
      secondaryButton: {
        value: 'TRUE',
        defaultFocus: true, // Set the button as the default focus button.
        action: () => {}
      },
    })
  });

  build() {
    Row() {
      Stack() {
        Column() {
          Button("AlertDialog")
            .width(96)
            .height(40)
            .onClick(() => {
              this.dialogController.open()
            })
        }
        .margin({ bottom: 300 })
      }
      .align(Alignment.Bottom)
      .width('100%')
      .height('100%')
    }
    .backgroundImageSize({ width: '100%', height: '100%' })
    .height('100%')
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton

harmony 鸿蒙EditableTitleBar
