USB Serial DDK Development

Overview

Non-standard serial port devices, such as temperature and humidity meters and special identity card readers, are used in industrial scenarios and on some legacy devices. If the system does not have a driver that adapts to the devices, the devices cannot be used after being connected. The USB Serial Driver Development Kit (DDK) is a toolset that helps you develop USB serial drivers at the application layer based on the user mode. The USB Serial DDK provides a series of APIs for the host to access devices, including APIs for enabling and disabling devices on the host and read/write data through serial ports. With these APIs, third-party peripheral devices can seamlessly integrate with the OpenHarmony ecosystem.

Basic Concepts

Before developing the SCSI Peripheral DDK, you must understand the following basic concepts:

• USB serial port

  USB-to-Serial is an interface conversion technology that allows data communication with traditional serial ports (such as RS-232 and RS-485) over USB interfaces. This technology is usually implemented by using a dedicated hardware adapter or a specific built-in chip.

• AMS

  The Ability Manager Service (AMS) is a system service used to coordinate the running relationships of abilities and schedule the lifecycle of abilities. You can use it to start and disable DriverExtensionAbility during driver development.

• BMS

  The Bundle Manager Service (BMS) is responsible for application installation, uninstallation, and data management on OpenHarmony.

• DDK

  DDK is a tool package provided by OpenHarmony for developing drivers for non-standard USB serial port devices based on the peripheral framework.

• Non-standard peripherals

  Non-standard peripherals (also called custom peripherals or dedicated peripherals) are peripherals that do not comply with general standards or are customized for specific application scenarios. This type of device usually requires special software support or special interfaces to implement communication with the host system.

• Standard peripherals

  Standard peripherals refer to peripherals (such as USB keyboards and mouse devices) that comply with industry standards and specifications. Such devices typically have uniform interface protocols, physical dimensions, and electrical characteristics, so that they can be used interchangeably between different systems.

Implementation Principles

A non-standard peripheral application obtains the USB serial port device ID by using the peripheral management service, and delivers the ID and the action to the USB serial port driver application through RPC. The USB serial port driver application can set the serial port attributes (such as the baud rate, data bit, and parity bit) and read the serial port data by calling the USB Serial DDK API. Then, the DDK API uses the HDI service to deliver instructions to the kernel driver, and the kernel driver uses instructions to communicate with the device.

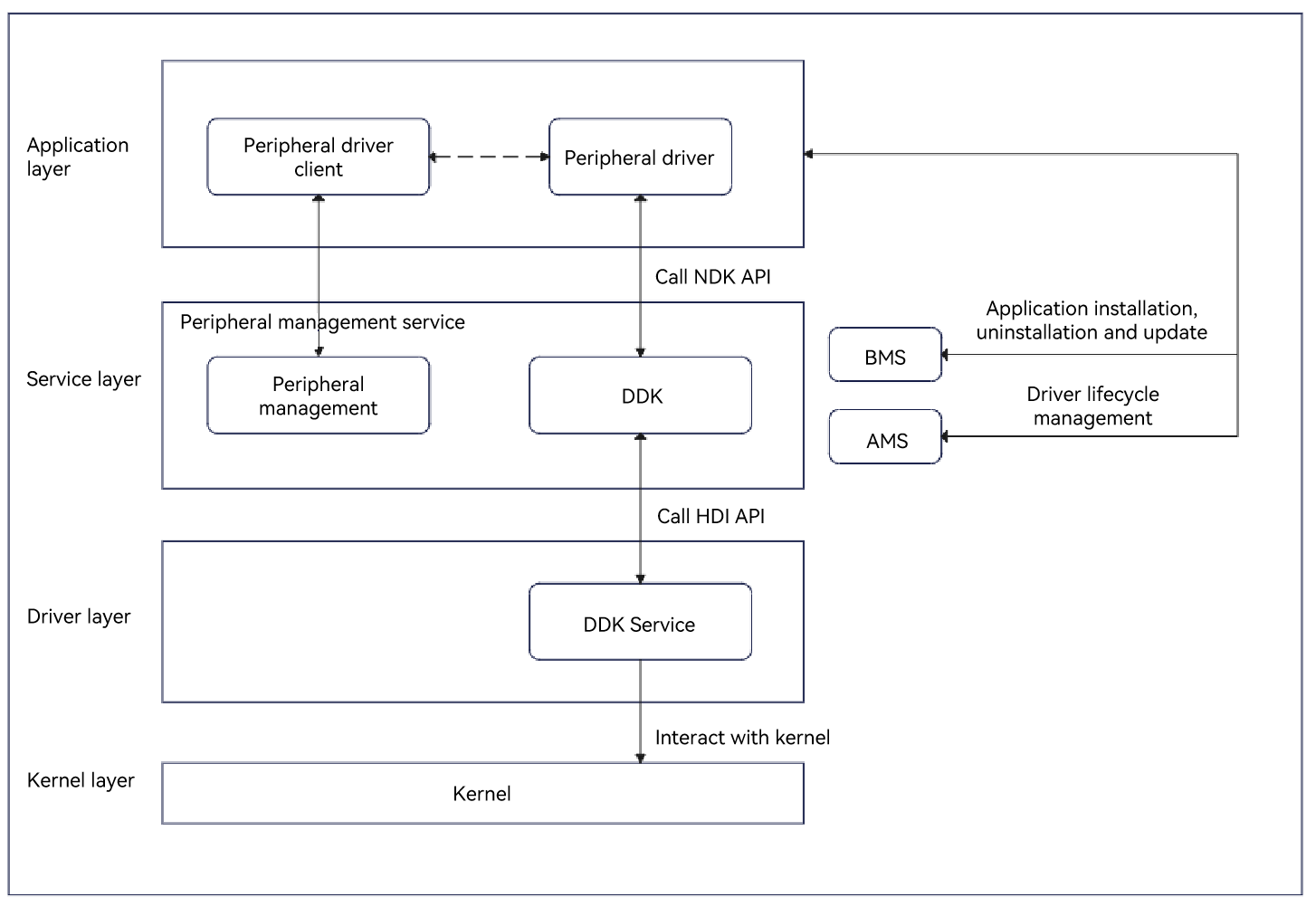

Figure 1 Principles of invoking the USB Serial DDK

Constraints

• The open APIs of USB Serial DDK can be used to develop drivers of non-standard USB peripherals that use USB serial ports.

• The open APIs of USB Serial DDK can be used only within the DriverExtensionAbility lifecycle.

• To use the open APIs of USB Serial DDK, you need to declare the matching ACL permissions in module.json5, for example, ohos.permission.ACCESS_DDK_USB_SERIAL.

Environment Setup

Before you get started, make necessary preparations by following instructions in Environment Preparation.

How to Develop

Available APIs

For details about the APIs, see USB Serial DDK.

How to Develop

To develop the USB serial port driver by using the USB Serial DDK, perform the following steps:

Adding Dynamic Link Libraries

Add the following libraries to CMakeLists.txt.

libusb_serial_ndk.z.so

Including Header Files

#include <serial/usb_serial_api.h>
#include <serial/usb_serial_types.h>

1. Initialize the USB Serial DDK.

   Use OH_UsbSerial_Init in usb_serial_api.h to initialize the USB Serial DDK.

   // Initialize the USB Serial DDK.
   OH_UsbSerial_Init();


2. Open the USB serial port device.

   Use OH_UsbSerial_Open in usb_serial_api.h to enable the device.

   UsbSerial_Device *dev = NULL;
   uint64_t deviceId = 1688858450198529;
   uint8_t interfaceIndex = 0;
   // Open the USB serial port device specified by deviceId and interfaceIndex.
   OH_UsbSerial_Open(deviceId, interfaceIndex, &dev);


3. Sets the parameters of the USB serial port device.

   Use OH_UsbSerial_SetParams in usb_serial_api.h to set the serial port parameters, or directly use OH_UsbSerial_SetBaudRate to set the baud rate, and use OH_UsbSerial_SetTimeout to set the timeout interval for reading data.

   UsbSerial_Params params;
   params.baudRate = 9600;
   params.nDataBits = 8;
   params.nStopBits = 1;
   params.parity = 0;
   // Set serial port parameters.
   OH_UsbSerial_SetParams(dev, &params);


   // Set the baud rate.
   uint32_t baudRate = 9600;
   OH_UsbSerial_SetBaudRate(dev, baudRate);


   // Set the timeout interval.
   int timeout = 500;
   OH_UsbSerial_SetTimeout(dev, timeout);


4. Set flow control and flush the buffer.

   Use OH_UsbSerial_SetFlowControl in usb_serial_api.h to set the flow control mode, use OH_UsbSerial_Flush to flush the buffer, use OH_UsbSerial_FlushInput to flush the input buffer, and use OH_UsbSerial_FlushOutput to flush the output buffer.

   // Set flow control.
   OH_UsbSerial_SetFlowControl(dev, USB_SERIAL_SOFTWARE_FLOW_CONTROL);


   // Flush the buffer.
   OH_UsbSerial_Flush(dev);


   // Flush the input buffer.
   OH_UsbSerial_FlushInput(dev);


   // Flush the output buffer.
   OH_UsbSerial_FlushOutput(dev);


5. Write or read data to or from a USB serial port device.

   Use OH_UsbSerial_Write in usb_serial_api.h to send data to the device, and use OH_UsbSerial_Read to read the data sent by the device.

   uint32_t bytesWritten = 0;
   // Command used by the test device to read data. The command varies depending on the device protocol.
   uint8_t writeBuff[8] = {0x01, 0x03, 0x00, 0x00, 0x00, 0x01, 0x84, 0xA};
   // Send data over the connection.
   OH_UsbSerial_Write(dev, writeBuff, sizeof(writeBuff), &bytesWritten);


   // Callback invoked to receive data.
   uint8_t readBuff[100];
   uint32_t bytesRead = 0;
   OH_UsbSerial_Read(dev, readBuff, sizeof(readBuff), &bytesRead);


6. Close the USB serial port device.

   After all requests are processed and before the program exits, use OH_UsbSerial_Close in usb_serial_api.h to close the device.

   // Close the device.
   OH_UsbSerial_Close(&dev);


7. Release the USB Serial DDK.

   After the USB serial port device is closed, use OH_UsbSerial_Release in usb_serial_api.h to release the USB Serial DDK.

   // Release the USB Serial DDK.
   OH_UsbSerial_Release();


Debugging and Verification

Upon completion of driver application development, you can install the application on the OpenHarmony device. The test procedure is as follows:

1. Click the driver application on the device. The application is started on the device.
2. Click the set button to set serial port attributes such as the baud rate.
3. Click the data read button to read the data of the serial port device.
