Enter/Exit Transition

You can use transition, a basic component transition API, to animate the appearance and disappearance of a component. You can even use it with TransitionEffect to up your animation game.

Table 1 Transition effect APIs

API Description Animation
IDENTITY Disables the transition effect. None.
OPACITY Applies the default opacity transition effect. The component appears by changing the opacity from 0 to 1 and disappears by changing the opacity from 1 to 0.
SLIDE Applies a sliding transition effect. The component appears by sliding in from the left edge of the window and disappears by sliding out from the right edge of the window.
translate Applies a translation transition effect. The component appears by moving from the position set by the translate API to the default position (value 0), and disappears by moving from the default position (value 0) to the position set by the translate API.
rotate Applies a rotation transition effect. The component appears by rotating from the position set by the rotate API to the default position (value 0), and disappears by rotating from the default position (value 0) to the position set by the rotate API.
opacity Applies an opacity transition effect. The component appears by changing the opacity from the set value to 1 (default value) and disappears by changing the opacity from 1 to the set value.
move Applies a transition effect by specifying which edge the component slides in and out of through TransitionEdge. The component appears by sliding in from the edge specified by TransitionEdge and disappears by sliding out of the same edge.
asymmetric Applies an asymmetric transition effect.
appear: transition effect for appearance.
disappear: transition effect for disappearance.
The component appears by applying the transition effect specified by appear and disappears by applying the transition effect specified by disappear.
combine Combines with other transition effects. The component appears and disappears by combing with other transition effects.
animation Defines the animation settings for the transition effect.
- If animation settings are not specified here, the animation settings of animateTo will be used.
- Animation settings cannot be configured through the animation API of the component.
- The onFinish callback of the animation parameter in TransitionEffect does not take effect.
The API call sequence is from top to bottom. This means that the animation settings of TransitionEffect at the upper level also take effect on TransitionEffect at the lower level .
  1. Create a TransitionEffect object.
   // The component appears by applying all transition effects for appearance and disappears by applying all transition effects for disappearance.
   // Define the animation settings for each transition effect.
   private effect: object =
     TransitionEffect.OPACITY // Apply an opacity transition effect. As the animation API is not called here, the animation settings of animateTo are used.
       // Apply a scaling transition effect and specify springMotion (0.6, 1.2) as the curve.
       .combine(TransitionEffect.scale({ x: 0, y: 0 }).animation({curve: curves.springMotion(0.6, 1.2) }))
       // Apply a rotation transition effect, whose animation settings follow TransitionEffect above, that is, springMotion (0.6, 1.2).
       .combine(TransitionEffect.rotate({ angle: 90 }))
       // Apply a translation transition effect, whose animation settings follow TransitionEffect above, that is, springMotion (0.6, 1.2).
       .combine(TransitionEffect.translate({ x: 150, y: 150 })
       // Apply a move transition effect and specify springMotion as the curve.
       .combine(TransitionEffect.move(TransitionEdge.END)).animation({curve: curves.springMotion()}))
       // Apply an asymmetric transition effect. As the animation API is not called here, the animation settings follow TransitionEffect above, that is, springMotion.
       .combine(TransitionEffect.asymmetric(TransitionEffect.scale({ x: 0, y: 0 }), TransitionEffect.rotate({angle: 90})));
  1. Set the transition effects to the component by calling transition.
   Text('test')
     .transition(effect)
  1. Add or delete the component to trigger transition.
   @state isPresent: boolean = true;
   ...
   if (isPresent) {
     Text('test')
       .transition(effect)
   }
   ...
   // Control the addition or deletion of the component.
   // Method 1: Place the control variable in the animateTo closure. In this case, the transition effect for which the animation API is not call will follow the animation settings of animateTo.
   animateTo({curve: curves.springMotion()}) {
     this.isPresent = false;
   }

   // Method 2: Directly delete or add the component. In this case, the transition effects follow the animation settings specified by animation.
   this.isPresent = false;

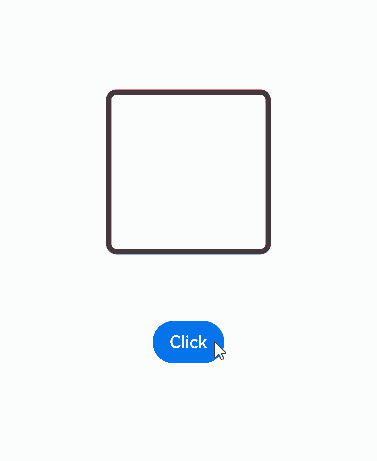

Below is the complete sample code and effect.

import curves from '@ohos.curves';

@Entry
@Component
struct TransitionEffectDemo {
  @State isPresent: boolean = false;

  // Step 1: Create a TransitionEffect object.
  private effect: TransitionEffect =
    // Apply the default opacity transition effect and specify springMotion (0.6, 0.8) as the curve.
  TransitionEffect.OPACITY.animation({ curve: curves.springMotion(0.6, 0.8) })
    // Combine with a scale transition effect, whose animation settings follow TransitionEffect above, that is, springMotion(0.6, 0.8).
    .combine(TransitionEffect.scale({ x: 0, y: 0 }))
      // Apply a rotation transition effect, whose animation settings follow TransitionEffect above, that is, springMotion(0.6, 0.8).
    .combine(TransitionEffect.rotate({ angle: 90 }))
      // Apply a translation transition effect, whose animation settings are specified by animation, which is springMotion().
    .combine(TransitionEffect.translate({ y: 150 }).animation({ curve: curves.springMotion() }))
      // Apply a movement transition effect, whose animation settings follow TransitionEffect above, that is, springMotion().
    .combine(TransitionEffect.move(TransitionEdge.END))

  build() {
    Stack() {
      if (this.isPresent) {
        Column() {
          Text('ArkUI')
            .fontWeight(FontWeight.Bold)
            .fontSize(20)
            .fontColor(Color.White)
        }
        .justifyContent(FlexAlign.Center)
        .width(150)
        .height(150)
        .borderRadius(10)
        .backgroundColor(0xf56c6c)
        // Step 2: Set the transition effects to the component through the transition API.
        .transition(this.effect)
      }

      // Border
      Column()
        .width(155)
        .height(155)
        .border({
          width: 5,
          radius: 10,
          color: Color.Black,
        })

      // Step 3: Add or delete the component to trigger transition. Control the addition or deletion of the component.
      Button('Click')
        .margin({ top: 320 })
        .onClick(() => {
          this.isPresent = !this.isPresent;
        })
    }
    .width('100%')
    .height('60%')
  }
}

en-us_image_0000001599818064
