Linear Layout (Row/Column)

Overview

Linear layout is the most frequently used layout in development, built with the Row or Column linear containers. The linear layout is the basis of other layouts. Its child elements are arranged in sequence linearly in the horizontal direction, as in a Row container, or vertical direction, as in a Column container.

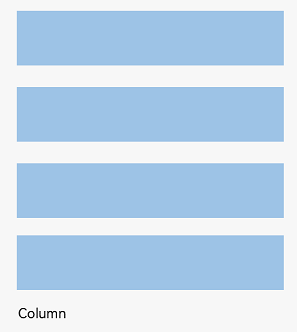

Figure 1 Child element arrangement in a Column container

arrangement-child-elements-column

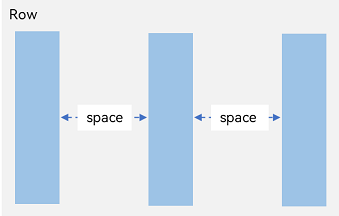

Figure 2 Child element arrangement in a Row container

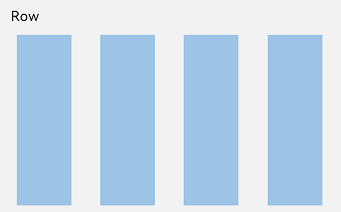

arrangement-child-elements-row

Basic Concepts

  • Layout container: container component that is able to lay out other elements as its child elements. The layout container calculates the size of its child elements and arranges the layout.

  • Layout child element: element inside the layout container.

  • Main axis: axis along which child elements are laid out by default in the linear layout container. The main axis is horizontal for the Row container and vertical for the Column container.

  • Cross axis: axis that runs perpendicular to the main axis. The cross axis is vertical for the Row container and horizontal for the Column container.

  • Spacing: distance between child elements.

Spacing of Child Elements in Arrangement Direction

In the layout container, use the space attribute to equally space child elements in the arrangement direction.

In Column Container

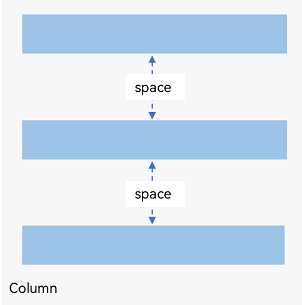

Figure 3 Layout child element spacing in the arrangement direction in the Column container

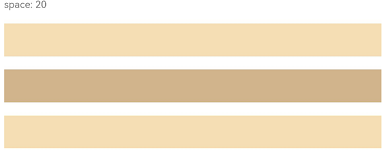

arrangement-direction-column

Column({ space: 20 }) {
  Text('space: 20').fontSize(15).fontColor(Color.Gray).width('90%')
  Row().width('90%').height(50).backgroundColor(0xF5DEB3)
  Row().width('90%').height(50).backgroundColor(0xD2B48C)
  Row().width('90%').height(50).backgroundColor(0xF5DEB3)
}.width('100%')

arrangement-direction-column-sample

In Row Container

Figure 4 Layout child element spacing in the arrangement direction in the Row container

arrangement-direction-row

Row({ space: 35 }) {
  Text('space: 35').fontSize(15).fontColor(Color.Gray)
  Row().width('10%').height(150).backgroundColor(0xF5DEB3)
  Row().width('10%').height(150).backgroundColor(0xD2B48C)
  Row().width('10%').height(150).backgroundColor(0xF5DEB3)
}.width('90%')

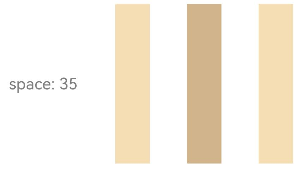

en-us_image_0000001562700509

Alignment of Child Elements Along Cross Axis

In the layout container, use the alignItems attribute to set the alignment mode of child elements along the cross axis. The alignment performance is consistent across screens of various sizes. The value is of the VerticalAlign Type type when the cross axis is in the vertical direction and the HorizontalAlign type when the cross axis is in the horizontal direction.

The layout container also provides the alignSelf attribute to control the alignment mode of a single child element along the cross axis. This attribute has a higher priority than the alignItems attribute. This means that, if alignSelf is set, it will overwrite the alignItems setting on the corresponding child element.

Horizontal Alignment of Child Elements in Column Container

Figure 5 Horizontal alignment of child elements in the Column container

horizontal-arrangement-child-column

  • HorizontalAlign.Start: Child elements are left aligned horizontally.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').alignItems(HorizontalAlign.Start).backgroundColor('rgb(242,242,242)')

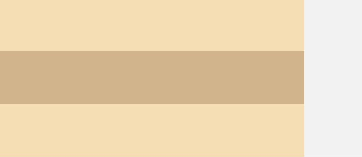

en-us_image_0000001511580964

  • HorizontalAlign.Center: Child elements are center-aligned horizontally.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').alignItems(HorizontalAlign.Center).backgroundColor('rgb(242,242,242)')

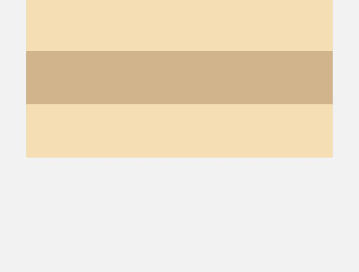

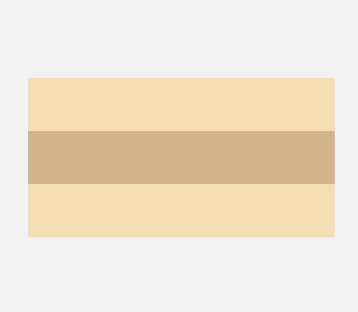

en-us_image_0000001562820897

  • HorizontalAlign.End: Child elements are right-aligned horizontally.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').alignItems(HorizontalAlign.End).backgroundColor('rgb(242,242,242)')

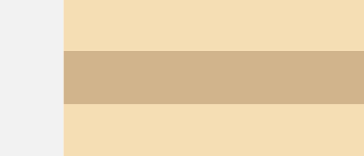

en-us_image_0000001511421348

Vertical Alignment of Child Elements in Row Container

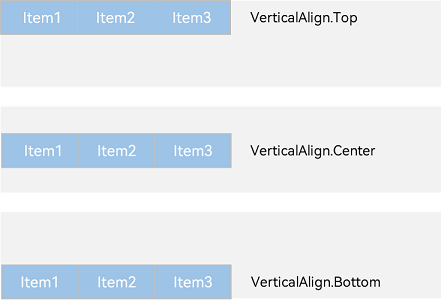

Figure 6 Vertical alignment of child elements in Row container

horizontal-arrangement-child-row

  • VerticalAlign.Top: Child elements are top-aligned vertically.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).alignItems(VerticalAlign.Top).backgroundColor('rgb(242,242,242)')

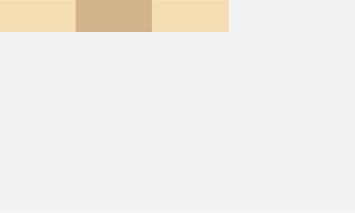

en-us_image_0000001563060765

  • VerticalAlign.Center: Child elements are center-aligned vertically.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).alignItems(VerticalAlign.Center).backgroundColor('rgb(242,242,242)')

en-us_image_0000001562700505

  • VerticalAlign.Bottom: Child elements are bottom-aligned vertically.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).alignItems(VerticalAlign.Bottom).backgroundColor('rgb(242,242,242)')

en-us_image_0000001563060781

Arrangement of Child Elements Along Main Axis

In the layout container, you can use the justifyContent attribute to set the arrangement mode of child elements along the main axis. The arrangement may begin from the start point or end point of the main axis, or the space of the main axis can be evenly divided.

Vertical Alignment of Child Elements in Column Container

Figure 7 Vertical alignment of child elements in the Column container

vertial-arrangement-child-column

  • justifyContent(FlexAlign.Start): The items are vertically aligned with each other toward the start edge of the container.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.Start)

en-us_image_0000001562700501

  • justifyContent(FlexAlign.Center): The elements are vertically aligned with each other toward the center of the container. The space between the first component and the start edge is the same as that between the last component and the end edge.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.Center)

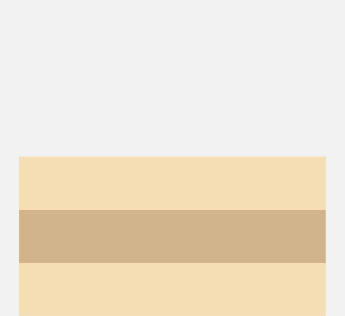

en-us_image_0000001562700517

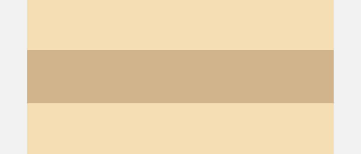

  • justifyContent(FlexAlign.End): The elements are vertically aligned with each other toward the end edge of the container.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.End)

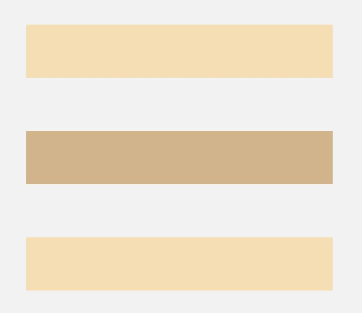

en-us_image_0000001562940585

  • justifyContent(FlexAlign.SpaceBetween): The elements are evenly distributed vertically. The space between any two adjacent elements is the same. The first element is aligned with the start edge, the last element is aligned with the end edge, and the remaining elements are distributed so that the space between any two adjacent elements is the same.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceBetween)

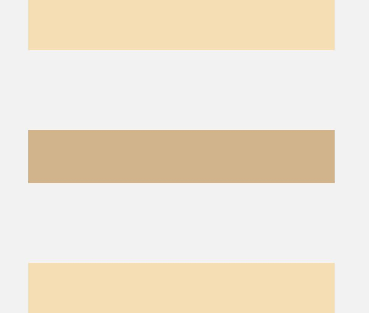

en-us_image_0000001511900532

  • justifyContent(FlexAlign.SpaceAround): The elements are evenly distributed vertically. The space between any two adjacent elements is the same. The space between the first element and start edge, and that between the last element and end edge are both half the size of the space between two adjacent elements.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceAround)

en-us_image_0000001562700525

  • justifyContent(FlexAlign.SpaceEvenly): The elements are evenly distributed vertically. The space between the first element and start edge, the space between the last element and end edge, and the space between any two adjacent elements are the same.
  Column({}) {
    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)

    Column() {
    }.width('80%').height(50).backgroundColor(0xD2B48C)

    Column() {
    }.width('80%').height(50).backgroundColor(0xF5DEB3)
  }.width('100%').height(300).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceEvenly)

en-us_image_0000001563060785

Horizontal Alignment of Child Elements in Row Container

Figure 8 Horizontal alignment of child elements in the Row container

vertial-arrangement-child-row

  • justifyContent(FlexAlign.Start): The items are horizontally aligned with each other toward the start edge of the container.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.Start)

en-us_image_0000001511421356

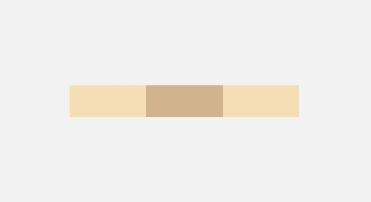

  • justifyContent(FlexAlign.Center): The elements are horizontally aligned with each other toward the center of the container. The space between the first component and the start edge is the same as that between the last component and the end edge.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.Center)

en-us_image_0000001511900516

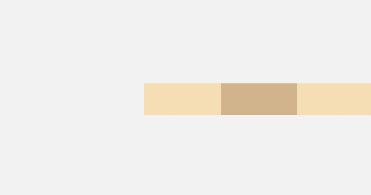

  • justifyContent(FlexAlign.End): The elements are horizontally aligned with each other toward the end edge of the container.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.End)

en-us_image_0000001562940601

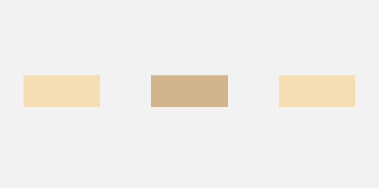

  • justifyContent(FlexAlign.SpaceBetween): The elements are evenly distributed horizontally. The space between any two adjacent elements is the same. The first element is aligned with the start edge, the last element is aligned with the end edge, and the remaining elements are distributed so that the space between any two adjacent elements is the same.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceBetween)

en-us_image_0000001562700521

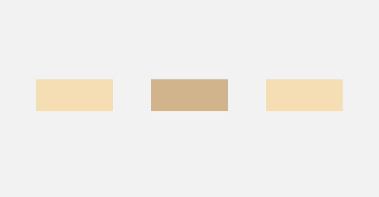

  • justifyContent(FlexAlign.SpaceAround): The elements are evenly distributed horizontally. The space between any two adjacent elements is the same. The space between the first element and start edge, and that between the last element and end edge are both half the size of the space between two adjacent elements.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceAround)

en-us_image_0000001562820893

  • justifyContent(FlexAlign.SpaceEvenly): The elements are evenly distributed horizontally. The space between the first element and start edge, the space between the last element and end edge, and the space between any two adjacent elements are the same.
  Row({}) {
    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)

    Column() {
    }.width('20%').height(30).backgroundColor(0xD2B48C)

    Column() {
    }.width('20%').height(30).backgroundColor(0xF5DEB3)
  }.width('100%').height(200).backgroundColor('rgb(242,242,242)').justifyContent(FlexAlign.SpaceEvenly)

en-us_image_0000001511421352

Adaptive Stretching

In linear layout, adaptive stretching is achieved by using the Blank component, which automatically fills the empty spaces in the container – Row or Column – along the main axis. Just add the width and height as a percentage, and then adaptive scaling will take effect once the screen width and height change.

@Entry
@Component
struct BlankExample {
  build() {
    Column() {
      Row() {
        Text('Bluetooth').fontSize(18)
        Blank()
        Toggle({ type: ToggleType.Switch, isOn: true })
      }.backgroundColor(0xFFFFFF).borderRadius(15).padding({ left: 12 }).width('100%')
    }.backgroundColor(0xEFEFEF).padding(20).width('100%')
  }
}

Figure 9 Portrait mode

en-us_image_0000001562820881

Figure 10 Landscape mode

en-us_image_0000001511421332

Adaptive Scaling

Adaptive scaling means that the size of a child element is automatically adjusted according to a preset ratio to fit into the container across devices of various screen sizes. In linear layout, adaptive scaling can be achieved using either of the following methods:

  • When the container size is determined, use layoutWeight to set the weight of a child element during layout. The container space is then allocated along the main axis among the element and sibling elements based on the set layout weight, ignoring the size settings of the elements themselves.
  @Entry
  @Component
  struct layoutWeightExample {
    build() {
      Column() {
        Text('1:2:3').width('100%')
        Row() {
          Column() {
            Text('layoutWeight(1)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(1).backgroundColor(0xF5DEB3).height('100%')

          Column() {
            Text('layoutWeight(2)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(2).backgroundColor(0xD2B48C).height('100%')

          Column() {
            Text('layoutWeight(3)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(3).backgroundColor(0xF5DEB3).height('100%')

        }.backgroundColor(0xffd306).height('30%')

        Text('2:5:3').width('100%')
        Row() {
          Column() {
            Text('layoutWeight(2)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(2).backgroundColor(0xF5DEB3).height('100%')

          Column() {
            Text('layoutWeight(5)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(5).backgroundColor(0xD2B48C).height('100%')

          Column() {
            Text('layoutWeight(3)')
              .textAlign(TextAlign.Center)
          }.layoutWeight(3).backgroundColor(0xF5DEB3).height('100%')
        }.backgroundColor(0xffd306).height('30%')
      }
    }
  }

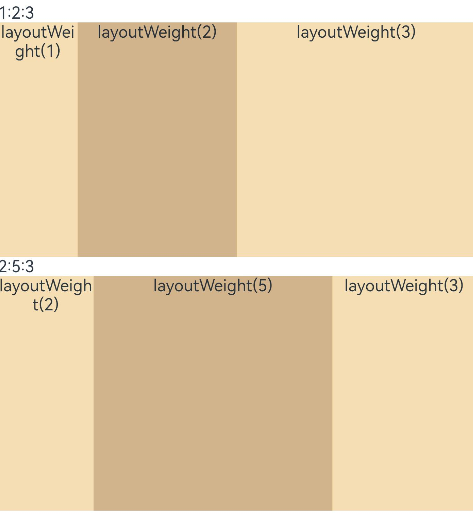

**Figure 11** Landscape mode

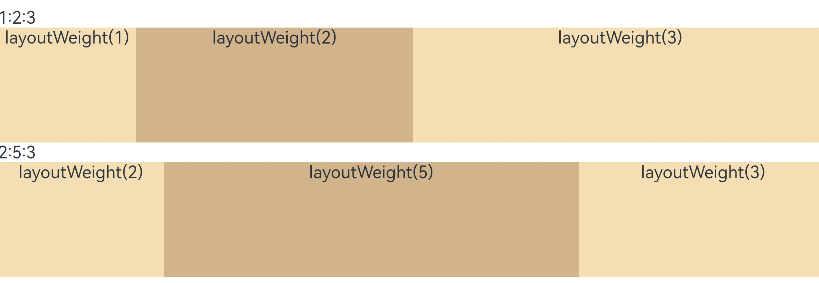

en-us_image_0000001511421336

**Figure 12** Portrait mode

en-us_image_0000001511580968

  • When the container size is determined, set the width of a child element in percentage. The container space is then allocated among the element and sibling elements based on the set percentage.
  @Entry
  @Component
  struct WidthExample {
    build() {
      Column() {
        Row() {
          Column() {
            Text('left width 20%')
              .textAlign(TextAlign.Center)
          }.width('20%').backgroundColor(0xF5DEB3).height('100%')

          Column() {
            Text('center width 50%')
              .textAlign(TextAlign.Center)
          }.width('50%').backgroundColor(0xD2B48C).height('100%')

          Column() {
            Text('right width 30%')
              .textAlign(TextAlign.Center)
          }.width('30%').backgroundColor(0xF5DEB3).height('100%')
        }.backgroundColor(0xffd306).height('30%')
      }
    }
  }

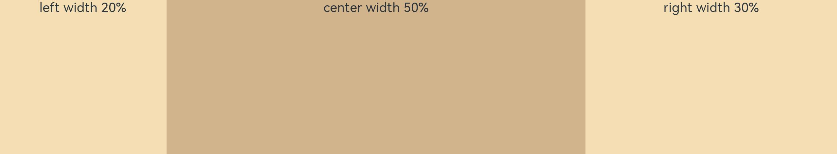

**Figure 13** Landscape mode

en-us_image_0000001563060777

**Figure 14** Portrait mode

en-us_image_0000001511740564

Adaptive Extension

Adaptive extension allows users to drag the scrollbar to display the page content outside the screen. It is applicable to the scenario where the content extends beyond the viewport in linear layout. Below are the methods to implement adaptive extension in linear layout:

  • Add a scrollbar to a List component: If the list items cannot be fully displayed on one screen, you can place the child elements in different components and employ a scrollbar to display them. Use the scrollBar attribute to set the scrollbar status and the edgeEffect attribute to set the rebound effect when the scrollbar has reached the edge.

  • Use a Scroll component: When one screen is not able to accommodate the full content, you can wrap a Scroll component at the outer layer of the Column or Row component to implement a scrollable linear layout. Example of using a Scroll component in the vertical layout:

  @Entry
  @Component
  struct ScrollExample {
    scroller: Scroller = new Scroller();
    private arr: number[] = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9];

    build() {
      Scroll(this.scroller) {
        Column() {
          ForEach(this.arr, (item?:number|undefined) => {
            if(item){
              Text(item.toString())
              .width('90%')
              .height(150)
              .backgroundColor(0xFFFFFF)
              .borderRadius(15)
              .fontSize(16)
              .textAlign(TextAlign.Center)
              .margin({ top: 10 })
            }
          }, (item:number) => item.toString())
        }.width('100%')
      }
      .backgroundColor(0xDCDCDC)
      .scrollable(ScrollDirection.Vertical) // Vertical scrolling.
      .scrollBar(BarState.On) // The scrollbar is always displayed.
      .scrollBarColor(Color.Gray) // The scrollbar color is gray.
      .scrollBarWidth(10) // The scrollbar width is 10.
      .edgeEffect(EdgeEffect.Spring) // The spring effect is produced when the scrollbar has reached the edge.
    }
  }

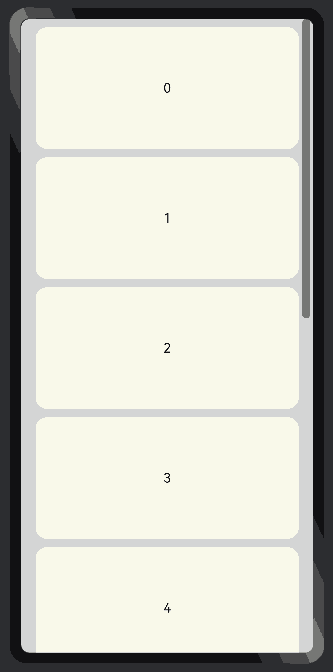

en-us_image_0000001511900524

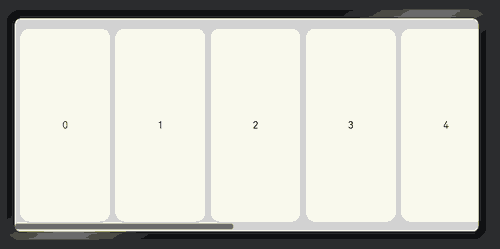

Example of using a Scroll component in the horizontal layout:

  @Entry
  @Component
  struct ScrollExample {
    scroller: Scroller = new Scroller();
    private arr: number[] = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9];

    build() {
      Scroll(this.scroller) {
        Row() {
          ForEach(this.arr, (item?:number|undefined) => {
            if(item){
              Text(item.toString())
              .height('90%')
              .width(150)
              .backgroundColor(0xFFFFFF)
              .borderRadius(15)
              .fontSize(16)
              .textAlign(TextAlign.Center)
              .margin({ left: 10 })
            }
          })
        }.height('100%')
      }
      .backgroundColor(0xDCDCDC)
      .scrollable(ScrollDirection.Horizontal) // Horizontal scrolling.
      .scrollBar(BarState.On) // The scrollbar is always displayed.
      .scrollBarColor(Color.Gray) // The scrollbar color is gray.
      .scrollBarWidth(10) // The scrollbar width is 10.
      .edgeEffect(EdgeEffect.Spring) // The spring effect is produced when the scrollbar has reached the edge.
    }
  }

en-us_image_0000001562940609

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkUI

harmony 鸿蒙Atomic Service Full Screen Launch Component (FullScreenLaunchComponent)

harmony 鸿蒙Arc Button (ArcButton)

harmony 鸿蒙Animation Smoothing

harmony 鸿蒙Animation Overview

harmony 鸿蒙Frame Animation (ohos.animator)

harmony 鸿蒙Implementing Property Animation

harmony 鸿蒙Property Animation Overview

harmony 鸿蒙Dialog Box Overview

harmony 鸿蒙Blur Effect

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://www.seaxiang.com/blog/56f8557f931f46bea288992b16043b06
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
