Context Usage

Context Overview

Context provides the capability of obtaining contextual information of an application.

The OpenHarmony application framework has two models: Feature Ability (FA) model and stage model. Correspondingly, there are two sets of context mechanisms. application/BaseContext is a common context base class. It uses the stageMode attribute to specify whether the context is used for the stage model.

FA model

Only the methods in app/Context can be used for the context in the FA model. Both the application-level context and ability-level context are instances of this type. If an ability-level method is invoked in the application-level context, an error occurs. Therefore, you must pay attention to the actual meaning of the Context instance.

Stage model

The stage model has the following types of contexts: application/Context, application/ApplicationContext, application/AbilityStageContext, application/ExtensionContext, application/AbilityContext, and application/FormExtensionContext. For details about these contexts and how to use them, see Context in the Stage Model.

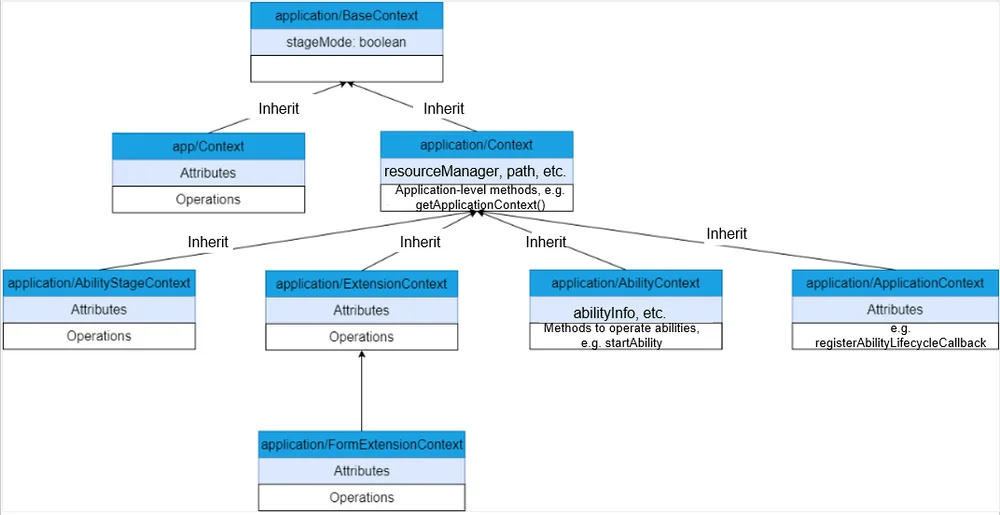

contextIntroduction

Context in the FA Model

Only the methods in app/Context can be used for the context in the FA model.

The FA model has only one context definition. All capabilities in the context are provided through methods. The context uses these methods to extend the capabilities of the FA.

d.ts statement

https://gitee.com/openharmony/interface_sdk-js/blob/master/api/app/context.d.ts

Example

import featureAbility from '@ohos.ability.featureAbility'
export default {
  onCreate() {
    // Obtain the context and call related APIs.
    let context = featureAbility.getContext();
    context.getBundleName((data, bundleName)=>{
      console.info("ability bundleName:" + bundleName)
    });
    console.info('Application onCreate')
  },
  onDestroy() {
    console.info('Application onDestroy')
  },
}

Common Context-related Methods in the FA Model

The following context-related methods are available in the FA model:

setDisplayOrientation(orientation: bundle.DisplayOrientation, callback: AsyncCallback<void>): void
setDisplayOrientation(orientation: bundle.DisplayOrientation): Promise<void>;

The methods are used to set the display orientation of the current ability.

Example

import featureAbility from '@ohos.ability.featureAbility'
import bundle from '@ohos.bundle';

export default {
  onCreate() {
    // Obtain the context and call related APIs.
    let context = featureAbility.getContext();
    context.setDisplayOrientation(bundle.DisplayOrientation.LANDSCAPE).then(() => {
        console.log("Set display orientation.")
    })
    console.info('Application onCreate')
  },
  onDestroy() {
    console.info('Application onDestroy')
  },
}

Context in the Stage Model

The following describes the contexts provided by the stage model in detail.

application/Context

application/Context is the base class context. It provides basic application information, such as resourceManager, applicationInfo, cacheDir, and area. It also provides basic application methods such as createModuleContext.

d.ts statement

https://gitee.com/openharmony/interface_sdk-js/blob/master/api/application/Context.d.ts

application/ApplicationContext

application/ApplicationContext is an application-level context. In addition to the capabilities provided by the base class context, the application-level context provides registerAbilityLifecycleCallback and unregisterAbilityLifecycleCallback to monitor the ability lifecycle in a process.

How to Obtain

Obtain the context by calling context.getApplicationContext() in Ability.

Example

import UIAbility from '@ohos.app.ability.UIAbility';

var lifecycleid;

export default class EntryAbility extends UIAbility {
    onCreate() {
        console.log("EntryAbility onCreate")
        let AbilityLifecycleCallback  =  {
            onAbilityCreate(ability){
                console.log("AbilityLifecycleCallback onAbilityCreate ability:" + JSON.stringify(ability));
            },
            onWindowStageCreate(ability, windowStage){
                console.log("AbilityLifecycleCallback onWindowStageCreate ability:" + JSON.stringify(ability));
                console.log("AbilityLifecycleCallback onWindowStageCreate windowStage:" + JSON.stringify(windowStage));
            },
            onWindowStageActive(ability, windowStage){
                console.log("AbilityLifecycleCallback onWindowStageActive ability:" + JSON.stringify(ability));
                console.log("AbilityLifecycleCallback onWindowStageActive windowStage:" + JSON.stringify(windowStage));
            },
            onWindowStageInactive(ability, windowStage){
                console.log("AbilityLifecycleCallback onWindowStageInactive ability:" + JSON.stringify(ability));
                console.log("AbilityLifecycleCallback onWindowStageInactive windowStage:" + JSON.stringify(windowStage));
            },
            onWindowStageDestroy(ability, windowStage){
                console.log("AbilityLifecycleCallback onWindowStageDestroy ability:" + JSON.stringify(ability));
                console.log("AbilityLifecycleCallback onWindowStageDestroy windowStage:" + JSON.stringify(windowStage));
            },
            onAbilityDestroy(ability){
                console.log("AbilityLifecycleCallback onAbilityDestroy ability:" + JSON.stringify(ability));
            },
            onAbilityForeground(ability){
                console.log("AbilityLifecycleCallback onAbilityForeground ability:" + JSON.stringify(ability));
            },
            onAbilityBackground(ability){
                console.log("AbilityLifecycleCallback onAbilityBackground ability:" + JSON.stringify(ability));
            },
            onAbilityContinue(ability){
                console.log("AbilityLifecycleCallback onAbilityContinue ability:" + JSON.stringify(ability));
            }
        }
        // 1. Obtain applicationContext through the context attribute.
        let applicationContext = this.context.getApplicationContext();
        // 2. Use applicationContext to register and listen for the ability lifecycle in the application.
        lifecycleid = applicationContext.registerAbilityLifecycleCallback(AbilityLifecycleCallback);
        console.log("registerAbilityLifecycleCallback number: " + JSON.stringify(lifecycleid));
    },
    onDestroy() {
        let applicationContext = this.context.getApplicationContext();
        applicationContext.unregisterAbilityLifecycleCallback(lifecycleid, (error, data) => {
            console.log("unregisterAbilityLifecycleCallback success, err: " + JSON.stringify(error));
        });
    }
}

d.ts statement

https://gitee.com/openharmony/interface_sdk-js/blob/master/api/application/ApplicationContext.d.ts

application/AbilityStageContext

application/AbilityStageContext is the context for the HAP file. In addition to those provided by the base class application/Context, this context contains HapModuleInfo and Configuration.

How to Obtain

Obtain the context from the context attribute in AbilityStage.

Example

export default class MyAbilityStage extends AbilityStage {
  onCreate() {
    // The context attribute is of the AbilityStageContext type.
    console.log('HapModuleInfo is ' + this.context.currentHapModuleInfo);
  }
}

d.ts statement

https://gitee.com/openharmony/interface_sdk-js/blob/master/api/application/AbilityStageContext.d.ts

application/AbilityContext

In the stage model, each ability has a context attribute.

Ability provides methods to manage the ability lifecycle, and AbilityContext provides methods to operate abilities (such as startAbility and connectAbility).

How to Obtain

Obtain the context from the context attribute in Ability.

Example

import UIAbility from '@ohos.app.ability.UIAbility';

export default class EntryAbility extends UIAbility {
    onCreate(want, launchParam) {
        console.log("[Demo] EntryAbility onCreate")
        globalThis.abilityWant = want;
    }

    onDestroy() {
        console.log("[Demo] EntryAbility onDestroy")
    }

    onWindowStageCreate(windowStage) {
        // Set the main page for this ability when the main window is created.
        console.log("[Demo] EntryAbility onWindowStageCreate")

        // Obtain AbilityContext and print the ability information.
        let context = this.context;
        console.log("[Demo] EntryAbility bundleName " + context.abilityInfo.bundleName)

        windowStage.loadContent("pages/index", (err, data) => {
            if (err.code) {
                console.error('Failed to load the content. Cause:' + JSON.stringify(err));
                return;
            }
            console.info('Succeeded in loading the content. Data: ' + JSON.stringify(data))
        });
    }

    onWindowStageDestroy() {
        // Release the UI related resources when the main window is destroyed.
        console.log("[Demo] EntryAbility onWindowStageDestroy")
    }

    onForeground() {
        // The ability is switched to run in the foreground.
        console.log("[Demo] EntryAbility onForeground")
    }

    onBackground() {
        // The ability is switched to run in the background.
        console.log("[Demo] EntryAbility onBackground")
    }
};

application/FormExtensionContext

For details, see FormExtensionContext.

Obtaining the Context on an ArkTS Page

In the stage model, in the onWindowStageCreate lifecycle of an ability, you can call SetUIContent of WindowStage to load an ArkTS page. In some scenarios, you need to obtain the context on the page to call related APIs.

How to Obtain

Use the API described in the table below to obtain the context associated with an ArkTS page.

API	Description
getContext(component: Object): Object	Obtains the Context object associated with a component on the page. Since API version 9, this API is supported in ArkTS widgets.

Example

// EntryAbility.ts
import UIAbility from '@ohos.app.ability.UIAbility';

export default class EntryAbility extends UIAbility {
    onCreate(want, launchParam) {
        console.log("[Demo] EntryAbility onCreate")
    }

    onDestroy() {
        console.log("[Demo] EntryAbility onDestroy")
    }

    onWindowStageCreate(windowStage) {
        // Load the index page and pass the current Context object.
        windowStage.setUIContent(this.context, "pages/index", null)
    }

    onWindowStageDestroy() {}

    onForeground() {}

    onBackground() {}
};

// pages/index.ets
import context from '@ohos.app.ability.context'

type Context = context.Context

@Entry
@Component
struct Index {
    build() {
        Row() {
            Column() {
                Text('GetContext')
                    .fontSize(50)
                    .fontWeight(FontWeight.Bold)
                    .onClick(() => {
                        // Obtain the Context object associated with the current component.
                        var context : Context = getContext(this) as Context
                        console.info("CacheDir:" + context.cacheDir)
                    })
            }
            .width('100%')
        }
        .height('100%')
    }
}

Common Incorrect Usage

Error 1: Use globalThis to obtain the context in the stage model.

Reason

In the FA model, each ability instance has a JS VM instance. Therefore, a global ability instance can be obtained from the global object of the JS engine. In the stage model, where all the processes of an application share a JS VM instance, there is no global ability instance, and using globalThis may cause an error or crash.
