前端页面调用应用侧函数

开发者使用Web组件将应用侧代码注册到前端页面中，注册完成之后，前端页面中使用注册的对象名称就可以调用应用侧的方法，实现在前端页面中调用应用侧方法。

如何建立应用侧与H5侧的交互通道

注册应用侧代码有两种方式，一种在Web组件初始化调用，使用javaScriptProxy()接口。另外一种在Web组件初始化完成后调用，使用registerJavaScriptProxy()接口。两种方式都需要和deleteJavaScriptRegister接口配合使用，防止内存泄漏。

在下面的示例中，将test()方法注册在前端页面中， 该函数可以在前端页面触发运行。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(): string {
      return 'ArkTS Hello World!';
    }
  }

  @Entry
  @Component
  struct WebComponent {
    webviewController: webview.WebviewController = new webview.WebviewController();
    // 声明需要注册的对象
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        // Web组件加载本地index.html页面
        Web({ src: $rawfile('index.html'), controller: this.webviewController})
          // 将对象注入到web端
          .javaScriptProxy({
            object: this.testObj,
            name: "testObjName",
            methodList: ["test"],
            controller: this.webviewController,
            // 可选参数
            asyncMethodList: [],
            permission: '{"javascriptProxyPermission":{"urlPermissionList":[{"scheme":"resource","host":"rawfile","port":"","path":""},' +
                        '{"scheme":"e","host":"f","port":"g","path":"h"}],"methodList":[{"methodName":"test","urlPermissionList":' +
                        '[{"scheme":"https","host":"xxx.com","port":"","path":""},{"scheme":"resource","host":"rawfile","port":"","path":""}]},' +
                        '{"methodName":"test11","urlPermissionList":[{"scheme":"q","host":"r","port":"","path":"t"},' +
                        '{"scheme":"u","host":"v","port":"","path":""}]}]}}'
          })
      }
    }
  }

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(): string {
      return "ArkUI Web Component";
    }

    toString(): void {
      console.log('Web Component toString');
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"],
                      // 可选参数, asyncMethodList
                      [],
                      // 可选参数, permission
                      '{"javascriptProxyPermission":{"urlPermissionList":[{"scheme":"resource","host":"rawfile","port":"","path":""},' +
                      '{"scheme":"e","host":"f","port":"g","path":"h"}],"methodList":[{"methodName":"test","urlPermissionList":' +
                      '[{"scheme":"https","host":"xxx.com","port":"","path":""},{"scheme":"resource","host":"rawfile","port":"","path":""}]},' +
                      '{"methodName":"test11","urlPermissionList":[{"scheme":"q","host":"r","port":"","path":"t"},' +
                      '{"scheme":"u","host":"v","port":"","path":""}]}]}}'
              );
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

说明：

  • 可选参数permission是一个json字符串，示例如下：

    {
"javascriptProxyPermission": {
  "urlPermissionList": [       // Object级权限，如果匹配，所有Method都授权
    {
      "scheme": "resource",    // 精确匹配，不能为空
      "host": "rawfile",       // 精确匹配，不能为空
      "port": "",              // 精确匹配，为空不检查
      "path": ""               // 前缀匹配，为空不检查
    },
    {
      "scheme": "https",       // 精确匹配，不能为空
      "host": "xxx.com",       // 精确匹配，不能为空
      "port": "8080",          // 精确匹配，为空不检查
      "path": "a/b/c"          // 前缀匹配，为空不检查
    }
  ],
  "methodList": [
    {
      "methodName": "test",
      "urlPermissionList": [   // Method级权限
        {
          "scheme": "https",   // 精确匹配，不能为空
          "host": "xxx.com",   // 精确匹配，不能为空
          "port": "",          // 精确匹配，为空不检查
          "path": ""           // 前缀匹配，为空不检查
        },
        {
          "scheme": "resource",// 精确匹配，不能为空
          "host": "rawfile",   // 精确匹配，不能为空
          "port": "",          // 精确匹配，为空不检查
          "path": ""           // 前缀匹配，为空不检查
        }
      ]
    },
    {
      "methodName": "test11",
      "urlPermissionList": [   // Method级权限
        {
          "scheme": "q",       // 精确匹配，不能为空
          "host": "r",         // 精确匹配，不能为空
          "port": "",          // 精确匹配，为空不检查
          "path": "t"          // 前缀匹配，为空不检查
        },
        {
          "scheme": "u",       // 精确匹配，不能为空
          "host": "v",         // 精确匹配，不能为空
          "port": "",          // 精确匹配，为空不检查
          "path": ""           // 前缀匹配，为空不检查
        }
      ]
    }
  ]
}
}

  • index.html前端页面触发应用侧代码。

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
          let str = testObjName.test();
          document.getElementById("demo").innerHTML = str;
          console.info('ArkTS Hello World! :' + str);
      }
  </script>
  </body>
  </html>

复杂类型使用方法

应用侧和前端页面之间传递Array

Array可以作为注册对象方法的参数或返回值，在应用侧和前端页面之间传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(): Array<Number> {
      return [1, 2, 3, 4]
    }

    toString(param: String): void {
      console.log('Web Component toString' + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
          testObjName.toString(testObjName.test());
      }
  </script>
  </body>
  </html>

非Function等复杂类型使用

非Function等复杂类型作为注册对象方法的参数或返回值，在应用侧和前端页面之间传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class Student {
    name: string = '';
    age: string = '';
  }

  class TestClass {
    constructor() {
    }

    // 传递的基础类型name:"jeck", age:"12"。
    test(): student {
      let st: student = { name: "jeck", age: "12" };
      return st;
    }

    toString(param: ESObject): void {
      console.log('Web Component toString' + param["name"]);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
          testObjName.toString(testObjName.test());
      }
  </script>
  </body>
  </html>

应用侧调用前端页面的Callback

Callback可以作为注册对象方法的参数或返回值，在应用侧和前端页面之间传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(param: Function): void {
      param("call callback");
    }

    toString(param: String): void {
      console.log('Web Component toString' + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
          testObjName.test(function(param){testObjName.toString(param)});
      }
  </script>
  </body>
  </html>

应用侧调用前端页面Object里的Function

前端页面Object里的Function可以作为注册对象方法的参数或返回值，在应用侧和前端页面之间传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(param: ESObject): void {
      param.hello("call obj func");
    }

    toString(param: String): void {
      console.log('Web Component toString' + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      // 写法1
      class Student {
          constructor(nameList) {
              this.methodNameListForJsProxy = nameList;
          }

          hello(param) {
              testObjName.toString(param)
          }
      }
      var st = new Student(["hello"])

      // 写法2
      //创建一个构造器，构造函数首字母大写
      function Obj1(){
          this.methodNameListForJsProxy=["hello"];
          this.hello=function(param){
              testObjName.toString(param)
          };
      }
      //利用构造器，通过new关键字生成对象
      var st1 = new Obj1();

      function callArkTS() {
          testObjName.test(st);
          testObjName.test(st1);
      }
  </script>
  </body>
  </html>

前端页面调用应用侧Object里的Function

应用侧Object里的Function可以作为注册对象方法的参数或返回值，在应用侧和前端页面之间传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class ObjOther {
    methodNameListForJsProxy: string[]

    constructor(list: string[]) {
      this.methodNameListForJsProxy = list
    }

    testOther(json: string): void {
      console.info(json)
    }
  }

  class TestClass {
    ObjReturn: ObjOther

    constructor() {
      this.ObjReturn = new ObjOther(["testOther"]);
    }

    test(): ESObject {
      return this.ObjReturn
    }

    toString(param: string): void {
      console.log('Web Component toString' + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
        testObjName.test().testOther("call other object func");
      }
  </script>
  </body>
  </html>

Promise场景

第一种使用方法，在应用侧new Promise，将Promise作为对象方法的参数或返回值，向前端页面传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(): Promise<string> {
      let p: Promise<string> = new Promise((resolve, reject) => {
        setTimeout(() => {
          console.log('执行完成');
          reject('fail');
        }, 10000);
      });
      return p;
    }

    toString(param: String): void {
      console.log(" " + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
        testObjName.test().then((param)=>{testObjName.toString(param)}).catch((param)=>{testObjName.toString(param)})
      }
  </script>
  </body>
  </html>

第二种使用方法，在前端页面new Promise，将Promise作为对象方法的参数或返回值，向应用侧传递。

  // xxx.ets
  import { webview } from '@kit.ArkWeb';
  import { BusinessError } from '@kit.BasicServicesKit';

  class TestClass {
    constructor() {
    }

    test(param:Function): void {
      setTimeout( () => { param("suc") }, 10000)
    }

    toString(param:String): void {
      console.log(" " + param);
    }
  }

  @Entry
  @Component
  struct Index {
    webviewController: webview.WebviewController = new webview.WebviewController();
    @State testObj: testClass = new TestClass();

    build() {
      Column() {
        Button('refresh')
          .onClick(() => {
            try {
              this.webviewController.refresh();
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('Register JavaScript To Window')
          .onClick(() => {
            try {
              this.webviewController.registerJavaScriptProxy(this.testObj, "testObjName", ["test", "toString"]);
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Button('deleteJavaScriptRegister')
          .onClick(() => {
            try {
              this.webviewController.deleteJavaScriptRegister("testObjName");
            } catch (error) {
              console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
            }
          })
        Web({ src: $rawfile('index.html'), controller: this.webviewController })
      }
    }
  }

  <!-- index.html -->
  <!DOCTYPE html>
  <html>
  <body>
  <button type="button" onclick="callArkTS()">Click Me!</button>
  <p id="demo"></p>
  <script>
      function callArkTS() {
        let funpromise
        var p = new Promise(function(resolve, reject){funpromise=(param)=>{resolve(param)}})
        testObjName.test(funpromise)
        p.then((param)=>{testObjName.toString(param)})
      }
  </script>
  </body>
  </html>

验证通道是否建立成功

  1. 打开web调试。

开启web调试请参考使用DevTools工具调试前端页面。

  1. 举例说明通道是否建立成功。

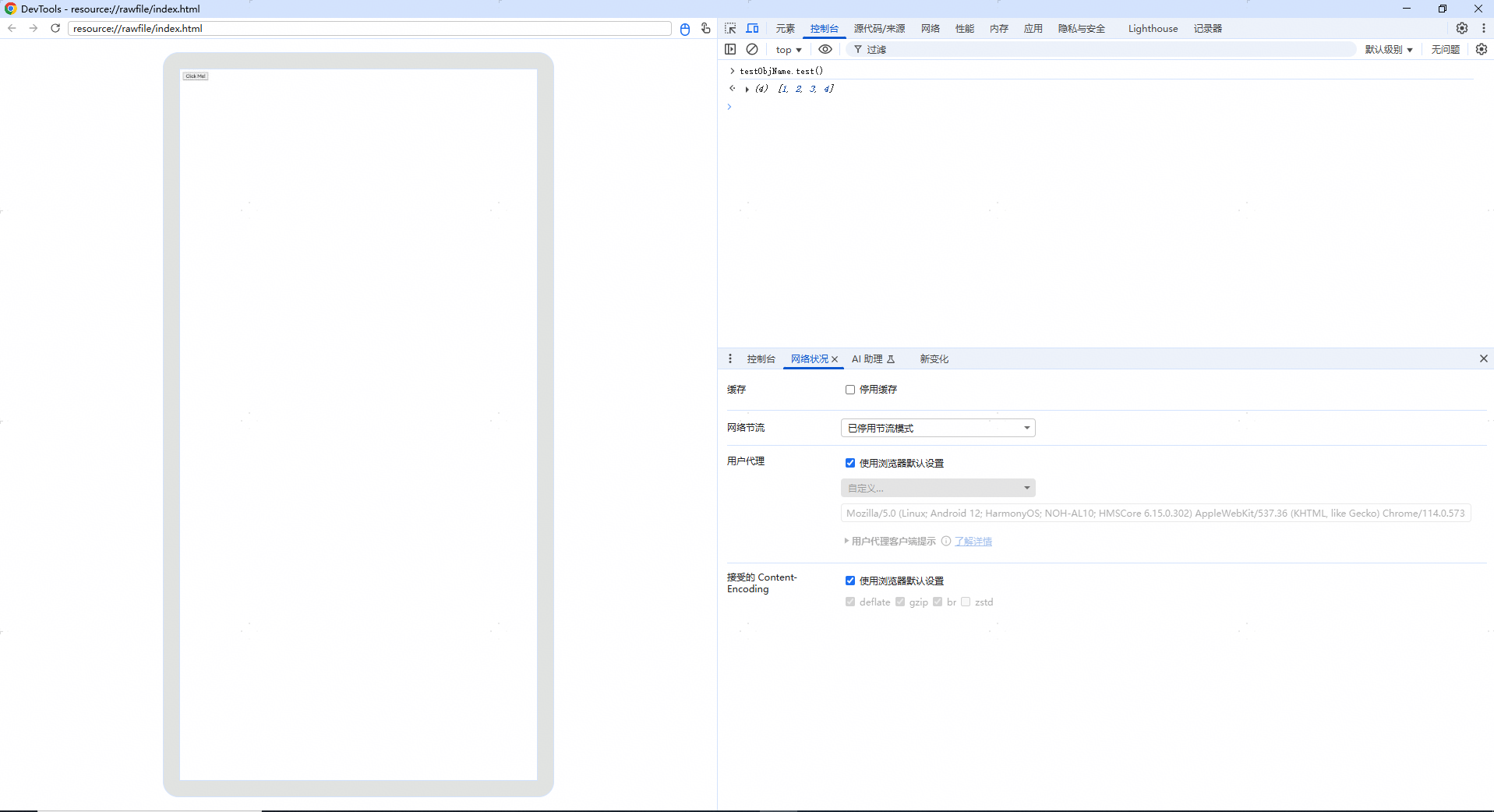

使用复杂类型使用方法中应用侧和前端页面之间传递Array作为示例，调试结果如下图所示：

DevTools工具验证成功示例

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkWeb（方舟Web）

harmony 鸿蒙托管网页中的媒体播放

harmony 鸿蒙应用侧与前端页面的相互调用(C/C++)

harmony 鸿蒙建立应用侧与前端页面数据通道(C/C++)

harmony 鸿蒙使用Web组件的广告过滤功能

harmony 鸿蒙建立应用侧与前端页面数据通道

harmony 鸿蒙使用Web组件与系统剪贴板交互处理网页内容

harmony 鸿蒙Web组件在不同的窗口间迁移

harmony 鸿蒙ArkWeb简介

harmony 鸿蒙Web页面显示内容滚动

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://www.seaxiang.com/blog/c9c3fa0a667b461889d54f7bd22770fd
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
