API Switching Overview

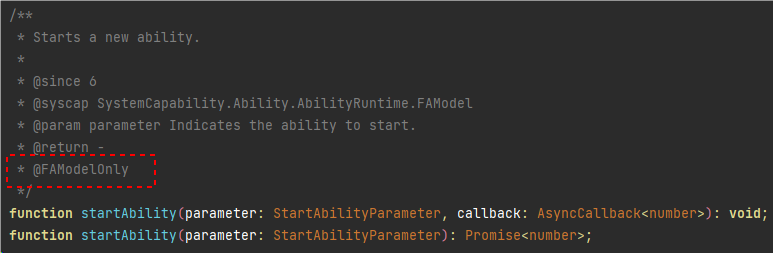

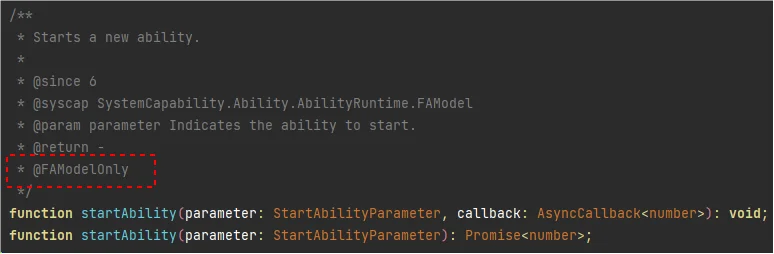

Due to the differences in the thread model and process model, certain APIs can be used only in the FA model. They are marked with FAModelOnly in the SDK. When switching an application from the FA model to the stage model, replace the APIs marked with FAModelOnly in the application with the APIs supported in the stage model. This topic uses the switching of startAbility() as an example.

api-switch-overview

Sample code of startAbility() in the FA model:

  import featureAbility from '@ohos.ability.featureAbility';
  import Want from '@ohos.app.ability.Want';
  import hilog from '@ohos.hilog';

  const TAG: string = 'PagePageAbilityFirst';
  const domain: number = 0xFF00;

  @Entry
  @Component
  struct PagePageAbilityFirst {

    build() {
      Column() {
        List({ initialIndex: 0 }) {
          ListItem() {
            Flex({ justifyContent: FlexAlign.SpaceBetween, alignContent: FlexAlign.Center }) {
              //...
            }
            .onClick(() => {
              (async (): Promise<void> => {
                try {
                  hilog.info(domain, TAG, 'Begin to start ability');
                  let want: Want = {
                    bundleName: 'com.samples.famodelabilitydevelop',
                    moduleName: 'entry',
                    abilityName: 'com.samples.famodelabilitydevelop.PageAbilitySingleton'
                  };
                  await featureAbility.startAbility({ want: want });
                  hilog.info(domain, TAG, `Start ability succeed`);
                }
                catch (error) {
                  hilog.error(domain, TAG, 'Start ability failed with ' + error);
                }
              })()
            })
          }
          //...
        }
        //...
      }
      //...
    }
  }

Sample code of startAbility() in the stage model:

  import { hilog } from '@kit.PerformanceAnalysisKit';
  import { Want, common, Caller } from '@kit.AbilityKit';
  import { BusinessError } from '@kit.BasicServicesKit';

  const TAG: string = '[Page_UIAbilityComponentsInteractive]';
  const DOMAIN_NUMBER: number = 0xFF00;

  @Entry
  @Component
  struct Page_UIAbilityComponentsInteractive {
    private context = this.getUIContext().getHostContext() as common.UIAbilityContext;
    caller: Caller|undefined = undefined;
    build() {
      Column() {
        //...
        List({ initialIndex: 0 }) {
          ListItem() {
            Row() {
              //...
            }
            .onClick(() => {
              // Context is a member of the ability object and is required for invoking inside a non-ability object.
              // Pass in the Context object.
              let wantInfo: Want = {
                deviceId: '', // An empty deviceId indicates the local device.
                bundleName: 'com.samples.stagemodelabilitydevelop',
                moduleName: 'entry', // moduleName is optional.
                abilityName: 'FuncAbilityA',
                parameters: { // Custom information.
                  info: 'From the UIAbilityComponentsInteractive page of EntryAbility',
                },
              };
              // context is the UIAbilityContext of the initiator UIAbility.
              this.context.startAbility(wantInfo).then(() => {
                hilog.info(DOMAIN_NUMBER, TAG, 'startAbility success.');
              }).catch((error: BusinessError) => {
                hilog.error(DOMAIN_NUMBER, TAG, 'startAbility failed.');
              });
            })
          }
          //...
        }
        //...
      }
      //...
    }
  }
