LazyForEach: Lazy Data Loading

For details about API parameters, see LazyForEach.

LazyForEach iterates over provided data sources and creates corresponding components during each iteration. When LazyForEach is used in a scrolling container, the framework creates components as required within the visible area of the scrolling container. When a component is out of the visible area, the framework destroys and reclaims the component to reduce memory usage.

Constraints

  • LazyForEach must be used in a container component. Only the List, Grid, Swiper, and WaterFlow components support lazy loading (the cachedCount property can be configured, that is, only the visible part and a small amount of data before and after the visible part are loaded for caching). For other components, all data is loaded at once.
  • LazyForEach depends on the generated key to determine whether to re-render the child component. If the key does not change, LazyForEach cannot trigger a re-render for the corresponding child component.
  • Only one LazyForEach can be used in a container component. Take List as an example. Containing ListItem, ForEach, and LazyForEach together in this component, or containing multiple LazyForEach at the same time is not recommended.
  • In each iteration, only one child component must be created for LazyForEach. That is, the child component generation function of LazyForEach has only one root component.
  • The generated child components must be allowed in the parent container component of LazyForEach.
  • LazyForEach can be included in an if/else statement, and can also contain such a statement.
  • The ID generation function must generate a unique value for each piece of data. Rendering issues will arise with components assigned duplicate IDs.
  • LazyForEach must use the DataChangeListener object to re-render UI. If the first parameter dataSource is re-assigned a value, an exception occurs. When dataSource uses a state variable, the change of the state variable does not trigger the UI re-renders performed by LazyForEach.
  • For better rendering performance, when the onDataChange API of the DataChangeListener object is used to update the UI, an ID different from the original one needs to be generated to trigger component re-rendering.
  • Using \@Reusable to decorate components on the LazyForEach list can trigger node reuse. For details, see List Scrolling Used with LazyForEach.
  • Use LazyForEach and \@ReusableV2 together to trigger node reuse. For details, see Using in LazyForEach.

Key Generation Rules

During LazyForEach rendering, the system generates a unique, persistent key for each item to identify the owing component. When the key changes, the ArkUI framework considers that the array element has been replaced or modified and creates a component based on the new key.

LazyForEach provides a parameter named keyGenerator, which is in effect a function through which you can customize key generation rules. If no keyGenerator function is defined, the ArkUI framework uses the default key generation function, that is, (item: Object, index: number) => { return viewId + ‘-’ + index.toString(); }, wherein viewId is generated during compiler conversion. The viewId values in the same LazyForEach component are the same.

Component Creation Rules

After the key generation rules are determined, the itemGenerator function – the second parameter in LazyForEach – creates a component for each array item of the data source based on the rules. There are two cases for creating a component: initial render and non-initial render.

Initial Render

Generating Different Key Values

When used for initial render, LazyForEach generates a unique key for each array item of the data source based on the key generation rules, and creates a component.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

In the preceding code snippets, the key generation rule is the return value item of the keyGenerator function. During loop rendering, LazyForEach generates keys in the sequence of Hello 0, Hello 1, …, Hello 20 for the array item of the data source, creates the corresponding ListItem child components and render them on the GUI.

The figure below shows the effect.

Figure 1 Initial render of LazyForEach LazyForEach-Render-DifferentKey

Incorrect Rendering When Keys Are the Same

When the keys generated for different data items are the same, the behavior of the framework is unpredictable. For example, in the following code, the keys of the data items rendered by LazyForEach are the same. During the swipe process, LazyForEach preloads child components for the current page. Because the new child component and the destroyed component have the same key, the framework may incorrectly obtain the cache. As a result, the child component rendering is abnormal.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
      }, (item: string) => 'same key')
    }.cachedCount(5)
  }
}

The figure below shows the effect.

Figure 2 LazyForEach rendering when keys are the same LazyForEach-Render-SameKey

Non-Initial Render

When the LazyForEach data source is changed and a re-render is required, call a listener API based on the data source change to notify LazyForEach. Below are some use cases.

Adding Data

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          // Click to add a child component.
          this.data.pushData(`Hello ${this.data.totalCount()}`);
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

When the child component of LazyForEach is clicked, the pushData method of the data source is called first. This method adds data to the end of the data source and then calls the notifyDataAdd method. In the notifyDataAdd method, the listener.onDataAdd method is called to notify LazyForEach that data is added, and LazyForEach creates a child component at the position indicated by the specified index.

The figure below shows the effect.

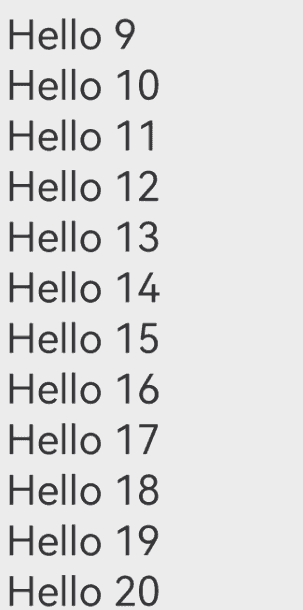

Figure 3 Adding data to LazyForEach LazyForEach-Add-Data

Deleting Data

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public getAllData(): string[] {
    return this.dataArray;
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
  }

  public deleteData(index: number): void {
    this.dataArray.splice(index, 1);
    this.notifyDataDelete(index);
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          // Click to delete a child component.
          this.data.deleteData(this.data.getAllData().indexOf(item));
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

When the child component of LazyForEach is clicked, the deleteData method of the data source is called first. This method deletes data that matches the specified index from the data source and then calls the notifyDataDelete method. In the notifyDataDelete method, the listener.onDataDelete method is called to notify LazyForEach that data is deleted, and LazyForEach deletes the child component at the position indicated by the specified index.

The figure below shows the effect.

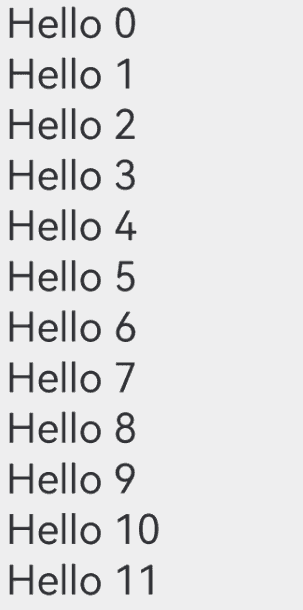

Figure 4 Deleting data from LazyForEach LazyForEach-Delete-Data

Swapping Data

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public getAllData(): string[] {
    return this.dataArray;
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
  }

  public moveData(from: number, to: number): void {
    let temp: string = this.dataArray[from];
    this.dataArray[from] = this.dataArray[to];
    this.dataArray[to] = temp;
    this.notifyDataMove(from, to);
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          this.moved.push(this.data.getAllData().indexOf(item));
          if (this.moved.length === 2) {
          	// Click to exchange child components.
          	this.data.moveData(this.moved[0], this.moved[1]);
            this.moved = [];
          }
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

When a child component of LazyForEach is clicked, the index of the data to be moved is stored in the moved member variable. When another child component of LazyForEach is clicked, the first child component clicked is moved here. The moveData method of the data source is called to move the data from the original location to the expected location, after which the notifyDataMove method is called. In the notifyDataMove method, the listener.onDataMove method is called to notify LazyForEach that data needs to be moved. LazyForEach then swaps data between the from and to positions.

The figure below shows the effect.

Figure 5 Swapping data in LazyForEach LazyForEach-Exchange-Data

Changing a Data Item

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
  }

  public changeData(index: number, data: string): void {
    this.dataArray.splice(index, 1, data);
    this.notifyDataChange(index);
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }


  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          this.data.changeData(index, item + '00');
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

When the child component of LazyForEach is clicked, the data is changed first, and then the changeData method of the data source is called. In this method, the notifyDataChange method is called. In the notifyDataChange method, the listener.onDataChange method is called to notify LazyForEach of data changes. LazyForEach then rebuilds the child component that matches the specified index.

The figure below shows the effect.

Figure 6 Changing a data item in LazyForEach LazyForEach-Change-SingleData

Changing Multiple Data Items

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
  }

  public reloadData(): void {
    this.notifyDataReload();
  }

  public modifyAllData(): void {
    this.dataArray = this.dataArray.map((item: string) => {
        return item + '0';
    })
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          this.data.modifyAllData();
          this.data.reloadData();
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

When a child component of LazyForEach is clicked, the modifyAllData method of the data source is called to change all data items, and then the reloadData method of the data source is called. In this method, the notifyDataReload method is called. In the notifyDataReload method, the listener.onDataReloaded method is called to notify LazyForEach that all subnodes need to be rebuilt. LazyForEach compares the keys of all original data items with those of all new data items on a one-by-one basis. If the keys are the same, the cache is used. If the keys are different, the child component is rebuilt.

The figure below shows the effect.

Figure 7 Changing multiple data items in LazyForEach LazyForEach-Reload-Data

Changing Data in Batches Precisely

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public operateData(): void {
    console.info(JSON.stringify(this.dataArray));
    this.dataArray.splice(4, 0, this.dataArray[1]);
    this.dataArray.splice(1, 1);
    let temp = this.dataArray[4];
    this.dataArray[4] = this.dataArray[6];
    this.dataArray[6] = temp
    this.dataArray.splice(8, 0, 'Hello 1', 'Hello 2');
    this.dataArray.splice(12, 2);
    console.info(JSON.stringify(this.dataArray));
    this.notifyDatasetChange([
      { type: DataOperationType.MOVE, index: { from: 1, to: 3 } },
      { type: DataOperationType.EXCHANGE, index: { start: 4, end: 6 } },
      { type: DataOperationType.ADD, index: 8, count: 2 },
      { type: DataOperationType.DELETE, index: 10, count: 2 }]);
  }

  public init(): void {
    this.dataArray.splice(0, 0, 'Hello a', 'Hello b', 'Hello c', 'Hello d', 'Hello e', 'Hello f', 'Hello g', 'Hello h',
      'Hello i', 'Hello j', 'Hello k', 'Hello l', 'Hello m', 'Hello n', 'Hello o', 'Hello p', 'Hello q', 'Hello r');
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    this.data.init()
  }

  build() {
    Column() {
      Text('change data')
        .fontSize(10)
        .backgroundColor(Color.Blue)
        .fontColor(Color.White)
        .borderRadius(50)
        .padding(5)
        .onClick(() => {
          this.data.operateData();
        })
      List({ space: 3 }) {
        LazyForEach(this.data, (item: string, index: number) => {
          ListItem() {
            Row() {
              Text(item).fontSize(35)
                .onAppear(() => {
                  console.info("appear:" + item)
                })
            }.margin({ left: 10, right: 10 })
          }

        }, (item: string) => item + new Date().getTime())
      }.cachedCount(5)
    }
  }
}

The onDatasetChange API allows you to notify LazyForEach at a time to add, delete, move, and exchange data. In the preceding example, after the text change data is clicked, the second data item is moved to the fourth, the fifth data item exchanges locations with the seventh one, data Hello 1 and Hello 2 are added from the ninth, and two data items are deleted from the eleventh.

Figure 8 Changing multiple data items in LazyForEach

LazyForEach-Change-MultiData

In the second example, values are directly changed in the array without using splice(). Result of operations is directly obtained by comparing the original array with the new array.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public operateData(): void {
    this.dataArray =
      ['Hello x', 'Hello 1', 'Hello 2', 'Hello b', 'Hello c', 'Hello e', 'Hello d', 'Hello f', 'Hello g', 'Hello h']
    this.notifyDatasetChange([
      { type: DataOperationType.CHANGE, index: 0 },
      { type: DataOperationType.ADD, index: 1, count: 2 },
      { type: DataOperationType.EXCHANGE, index: { start: 3, end: 4 } },
    ]);
  }

  public init(): void {
    this.dataArray = ['Hello a', 'Hello b', 'Hello c', 'Hello d', 'Hello e', 'Hello f', 'Hello g', 'Hello h'];
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    this.data.init()
  }

  build() {
    Column() {
      Text('Multi-Data Change')
        .fontSize(10)
        .backgroundColor(Color.Blue)
        .fontColor(Color.White)
        .borderRadius(50)
        .padding(5)
        .onClick(() => {
          this.data.operateData();
        })
      List({ space: 3 }) {
        LazyForEach(this.data, (item: string, index: number) => {
          ListItem() {
            Row() {
              Text(item).fontSize(35)
                .onAppear(() => {
                  console.info("appear:" + item)
                })
            }.margin({ left: 10, right: 10 })
          }

        }, (item: string) => item + new Date().getTime())
      }.cachedCount(5)
    }
  }
}

Figure 9 Changing multiple data items in LazyForEach

LazyForEach-Change-MultiData2

Pay attention to the following when using the onDatasetChange API:

  1. The onDatasetChange API cannot be used together with other data operation APIs.
  2. Index of the operations passed in the onDatasetChange API is searched from the original array before modification. Therefore, the index in operations does not always correspond to the index in Datasource and cannot be a negative number.

which is shown in the following example:

// Array before modification.
["Hello a","Hello b","Hello c","Hello d","Hello e","Hello f","Hello g","Hello h","Hello i","Hello j","Hello k","Hello l","Hello m","Hello n","Hello o","Hello p","Hello q","Hello r"]
//Array after modification.
["Hello a","Hello c","Hello d","Hello b","Hello g","Hello f","Hello e","Hello h","Hello 1","Hello 2","Hello i","Hello j","Hello m","Hello n","Hello o","Hello p","Hello q","Hello r"]

Hello b is changed from item 2 to item 4. Therefore, the first operation is written in { type: DataOperationType.MOVE, index: { from: 1, to: 3 } }. Hello e whose index is 4 and Hello g whose index is 6 are exchanged in the original array. Therefore, the second operation is written in { type: DataOperationType.EXCHANGE, index: { start: 4, end: 6 } }. Hello 1 and Hello 2 are inserted after Hello h whose index is 7 in the original array. Therefore, the third operation is written in { type: DataOperationType.ADD, index: 8, count: 2 }. Hello k whose index is 10 and Hello l whose index is 11 are deleted in the original array. Therefore, the fourth operation is written in { type: DataOperationType.DELETE, index: 10, count: 2 }.

  1. When onDatasetChange is called, the data can be operated only once for each index. If the data is operated multiple times, LazyForEach enables only the first operation to take effect.
  2. In operations where you can specify keys on your own, LazyForEach does not call the key generator to obtain keys. As such, make sure the specified keys are correct.
  3. If the API contains the RELOAD operation, other operations do not take effect.

Changing Data Subproperties

When LazyForEach is used for UI re-renders, a child component needs to be destroyed and rebuilt when the data item changes. This may result in low re-render performance when the child component structure is complex. This is where @Observed and @ObjectLink come into picture. By providing in-depth observation, @Observed and @ObjectLink enable precise re-renders of only components that use the changed properties. You can select a re-render mode that better suits your needs.

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Observed
class StringData {
  message: string;
  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData(`Hello ${i}`));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({data: item})
        }
        .onClick(() => {
          item.message += '0';
        })
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@Component
struct ChildComponent {
  @ObjectLink data: StringData
  build() {
    Row() {
      Text(this.data.message).fontSize(50)
        .onAppear(() => {
          console.info("appear:" + this.data.message)
        })
    }.margin({ left: 10, right: 10 })
  }
}

When the child component of LazyForEach is clicked, item.message is changed. As re-rendering depends on the listening of the @ObjectLink decorated member variable of ChildComponent on its subproperties. In this case, the framework only re-renders Text(this.data.message) and does not rebuild the entire ListItem child component.

Figure 10 Changing data subproperties in LazyForEach LazyForEach-Change-SubProperty

Using State Management V2

State management V2 provides the @ObservedV2 and @Trace decorators to implement in-depth property observation and uses @Local and @Param decorators to re-render or manage child components. Only the components that use the corresponding properties are re-rendered.

Observing Nested Class Property Changes

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

class StringData {
  firstLayer: FirstLayer;

  constructor(firstLayer: FirstLayer) {
    this.firstLayer = firstLayer;
  }
}

class FirstLayer {
  secondLayer: SecondLayer;

  constructor(secondLayer: SecondLayer) {
    this.secondLayer = secondLayer;
  }
}

class SecondLayer {
  thirdLayer: ThirdLayer;

  constructor(thirdLayer: ThirdLayer) {
    this.thirdLayer = thirdLayer;
  }
}

@ObservedV2
class ThirdLayer {
  @Trace forthLayer: String;

  constructor(forthLayer: String) {
    this.forthLayer = forthLayer;
  }
}

@Entry
@ComponentV2
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData(new FirstLayer(new SecondLayer(new ThirdLayer('Hello' + i)))));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          Text(item.firstLayer.secondLayer.thirdLayer.forthLayer.toString()).fontSize(50)
            .onClick(() => {
              item.firstLayer.secondLayer.thirdLayer.forthLayer += '!';
            })
        }
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@ObservedV2 and @Trace are used to decorate classes and properties in the classes. They can be used together to deeply observe the decorated classes and properties. In the example, @ObservedV2 and @Trace are used to observe the changes of multi-layer nested properties and re-render child components in the in-depth nested class structure. When you click child component Text to change the innermost @Trace decorated class member property of the nested class, only the components that depend on the property are re-rendered.

Observing Component Internal State

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@ObservedV2
class StringData {
  @Trace message: string;

  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@ComponentV2
struct MyComponent {
  data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData('Hello' + i));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          Row() {

            Text(item.message).fontSize(50)
              .onClick(() => {
                // Change the @Trace decorated variable in the @ObservedV2 decorated class to trigger the re-render of the Text component.
                item.message += '!';
              })
            ChildComponent()
          }
        }
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@ComponentV2
struct ChildComponent {
  @Local message: string = '?';

  build() {
    Row() {
      Text(this.message).fontSize(50)
        .onClick(() => {
          // Change the @Local decorated variable to trigger the re-render of the Text component.
          this.message += '?';
        })
    }
  }
}

@Local enables the variable changes in the custom component are observable. The variable must be initialized in the component. In the example, when you click the Text component to change item.message, the variable is updated and the component that uses the variable is re-rendered. When the @Local decorated variable message in ChildComponent changes, the child component can also be re-rendered.

Receiving External Input

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@ObservedV2
class StringData {
  @Trace message: string;

  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@ComponentV2
struct MyComponent {
  data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData('Hello' + i));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({ data: item.message })
            .onClick(() => {
              item.message += '!';
            })
        }
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@ComponentV2
struct ChildComponent {
  @Param @Require data: string = '';

  build() {
    Row() {
      Text(this.data).fontSize(50)
    }
  }
}

The @Param decorator enables the child component to receive external input parameters to implement data synchronization between the parent and child components. When a child component is created in MyComponent, the item.message variable is passed and associated with the data variable decorated by @Param. Click the component in ListItem to change item.message. The data change is passed from the parent component to the child component, and the child component is re-rendered.

Enabling Drag and Sort

If LazyForEach is used in a list, and the onMove event is set, you can enable drag and sort for the list items. If an item changes the position after you drag and sort the data, the onMove event is triggered to report the original index and target index of the item. The data source needs to be modified in the onMove event based on the reported start index and target index. The DataChangeListener API does not need to be called to notify the data source change.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public moveDataWithoutNotify(from: number, to: number): void {
    let tmp = this.dataArray.splice(from, 1);
    this.dataArray.splice(to, 0, tmp[0])
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Entry
@Component
struct Parent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear(): void {
    for (let i = 0; i < 100; i++) {
      this.data.pushData(i.toString())
    }
  }

  build() {
    Row() {
      List() {
        LazyForEach(this.data, (item: string) => {
            ListItem() {
              Text(item.toString())
                .fontSize(16)
                .textAlign(TextAlign.Center)
                .size({height: 100, width: "100%"})
            }.margin(10)
            .borderRadius(10)
            .backgroundColor("#FFFFFFFF")
          }, (item: string) => item)
          .onMove((from:number, to:number)=>{
            this.data.moveDataWithoutNotify(from, to)
          })
      }
      .width('100%')
      .height('100%')
      .backgroundColor("#FFDCDCDC")
    }
  }
}

Figure 11 Drag and sort in LazyForEach LazyForEach-Drag-Sort

FAQs

Unexpected Rendering Result

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  public deleteData(index: number): void {
    this.dataArray.splice(index, 1);
    this.notifyDataDelete(index);
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          // Click to delete a child component.
          this.data.deleteData(index);
        })
      }, (item: string) => item)
    }.cachedCount(5)
  }
}

Figure 12 Unexpected data deletion by LazyForEach LazyForEach-Render-Not-Expected

When child components are clicked to be deleted, there may be cases where the deleted child component is not the one clicked. If this is the case, the indexes of data items are not updated correctly. In normal cases, after a child component is deleted, all data items following the data item of the child component should have their index decreased by 1. If these data items still use the original indexes, the indexes in itemGenerator do not change, resulting in the unexpected rendering result.

The following shows the code snippet after optimization:

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  public deleteData(index: number): void {
    this.dataArray.splice(index, 1);
    this.notifyDataDelete(index);
  }

  public reloadData(): void {
    this.notifyDataReload();
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          // Click to delete a child component.
          this.data.deleteData(index);
          // Reset the indexes of all child components.
          this.data.reloadData();
        })
      }, (item: string, index: number) => item + index.toString())
    }.cachedCount(5)
  }
}

After a data item is deleted, the reloadData method is called to rebuild the subsequent data items to update the indexes. Use the reloadData method to rebuild a data item, you should ensure that the data item can generate a new key. item + index.toString() is used to rebuild the data items following the deleted data item. If item + Date.now().toString() is used instead, all data items generate new keys. As a result, all data items are rebuilt. This method has the same effect, but the performance is slightly poor.

Figure 13 Fixing unexpected data deletion LazyForEach-Render-Not-Expected-Repair

Image Flickering During Re-renders

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  public reloadData(): void {
    this.notifyDataReload();
  }
}

class StringData {
  message: string;
  imgSrc: Resource;
  constructor(message: string, imgSrc: Resource) {
      this.message = message;
      this.imgSrc = imgSrc;
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      // 'app.media.img' is only an example. Replace it with the actual one in use. Otherwise, the imageSource instance fails to be created, and subsequent operations cannot be performed.
      this.data.pushData(new StringData(`Hello ${i}`, $r('app.media.img')));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          Column() {
            Text(item.message).fontSize(50)
              .onAppear(() => {
                console.info("appear:" + item.message)
              })
            Image(item.imgSrc)
              .width(500)
              .height(200)
          }.margin({ left: 10, right: 10 })
        }
        .onClick(() => {
          item.message += '00';
          this.data.reloadData();
        })
      }, (item: StringData, index: number) => JSON.stringify(item))
    }.cachedCount(5)
  }
}

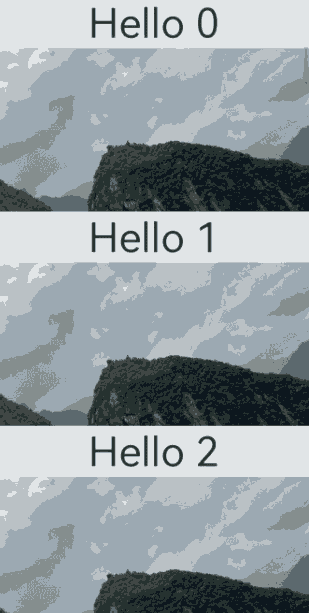

Figure 14 Unwanted image flickering with LazyForEach LazyForEach-Image-Flush

In the example, when a list item is clicked, only the message property of the item is changed. Yet, along with the text change comes the unwanted image flickering. This is because, with the LazyForEach update mechanism, the entire list item is rebuilt. As the Image component is updated asynchronously, flickering occurs. To address this issue, use @ObjectLink and @Observed so that only the Text component that uses the item.message property is re-rendered.

The following shows the code snippet after optimization:

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

// The @Observed class decorator and @ObjectLink are used for two-way data synchronization in scenarios involving nested objects or arrays.
@Observed
class StringData {
  message: string;
  imgSrc: Resource;
  constructor(message: string, imgSrc: Resource) {
      this.message = message;
      this.imgSrc = imgSrc;
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      // 'app.media.img' is only an example. Replace it with the actual one in use. Otherwise, the imageSource instance fails to be created, and subsequent operations cannot be performed.
      this.data.pushData(new StringData(`Hello ${i}`, $r('app.media.img')));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({data: item})
        }
        .onClick(() => {
          item.message += '0';
        })
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@Component
struct ChildComponent {
  // Use state variables instead of LazyForEach APIs to drive UI re-render.
  @ObjectLink data: StringData
  build() {
    Column() {
      Text(this.data.message).fontSize(50)
        .onAppear(() => {
          console.info("appear:" + this.data.message)
        })
      Image(this.data.imgSrc)
        .width(500)
        .height(200)
    }.margin({ left: 10, right: 10 })
  }
}

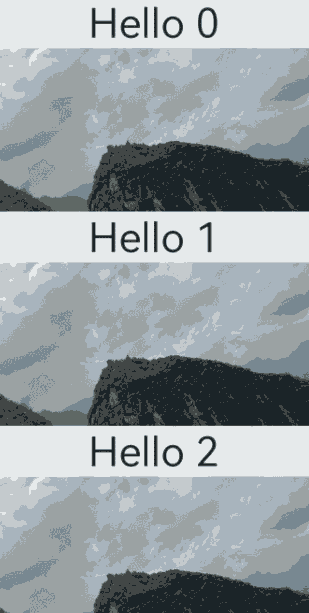

Figure 15 Fixing unwanted image flickering LazyForEach-Image-Flush-Repair

UI Not Re-rendered When @ObjectLink Property Is Changed

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Observed
class StringData {
  message: NestedString;
  constructor(message: NestedString) {
    this.message = message;
  }
}

@Observed
class NestedString {
  message: string;
  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData(new NestedString(`Hello ${i}`)));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({data: item})
        }
        .onClick(() => {
          item.message.message += '0';
        })
      }, (item: StringData, index: number) => JSON.stringify(item) + index.toString())
    }.cachedCount(5)
  }
}

@Component
struct ChildComponent {
  @ObjectLink data: StringData
  build() {
    Row() {
      Text(this.data.message.message).fontSize(50)
        .onAppear(() => {
          console.info("appear:" + this.data.message.message)
        })
    }.margin({ left: 10, right: 10 })
  }
}

Figure 16 UI not re-rendered when @ObjectLink property is changed LazyForEach-ObjectLink-NotRenderUI

The member variable decorated by @ObjectLink can observe only changes of its sub-properties, not changes of nested properties. Therefore, to instruct a component to re-render, we need to change the component sub-properties. For details, see \@Observed and \@ObjectLink Decorators.

The following shows the code snippet after optimization:

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}

@Observed
class StringData {
  message: NestedString;
  constructor(message: NestedString) {
    this.message = message;
  }
}

@Observed
class NestedString {
  message: string;
  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(new StringData(new NestedString(`Hello ${i}`)));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({data: item})
        }
        .onClick(() => {
          // The member variables decorated by @ObjectLink can only listen for the changes of their sub-properties. The in-depth nested properties cannot be observed.
          item.message = new NestedString(item.message.message + '0');
        })
      }, (item: StringData, index: number) => JSON.stringify(item) + index.toString())
    }.cachedCount(5)
  }
}

@Component
struct ChildComponent {
  @ObjectLink data: StringData
  build() {
    Row() {
      Text(this.data.message.message).fontSize(50)
        .onAppear(() => {
          console.info("appear:" + this.data.message.message)
        })
    }.margin({ left: 10, right: 10 })
  }
}

Figure 17 Fixing the UI-not-re-rendered issue LazyForEach-ObjectLink-NotRenderUI-Repair

Screen Flickering

List has an onScrollIndex callback function. When onDataReloaded is called in onScrollIndex, there is a risk of screen flickering.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  operateData():void {
    const totalCount = this.dataArray.length;
    const batch=5;
    for (let i = totalCount; i < totalCount + batch; i++) {
      this.dataArray.push(`Hello ${i}`)
    }
    this.notifyDataReload();
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 10; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item)
              .width('100%')
              .height(80)
              .backgroundColor(Color.Gray)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
      }, (item: string) => item)
    }.cachedCount(10)
    .onScrollIndex((start, end, center) => {
      if (end === this.data.totalCount() - 1) {
        console.log('scroll to end')
        this.data.operateData();
      }
    })
  }
}

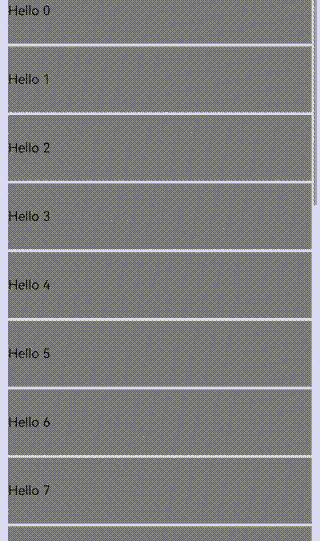

When List is scrolled to the bottom, screen flicks like the following. LazyForEach-Screen-Flicker

Replacing onDataReloaded by onDatasetChange cannot only fix this issue but also improves load performance.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  operateData():void {
    const totalCount = this.dataArray.length;
    const batch=5;
    for (let i = totalCount; i < totalCount + batch; i++) {
      this.dataArray.push(`Hello ${i}`)
    }
    // Replace notifyDataReload.
    this.notifyDatasetChange([{type:DataOperationType.ADD, index: totalCount-1, count:batch}])
  }
}

@Entry
@Component
struct MyComponent {
  private moved: number[] = [];
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 10; i++) {
      this.data.pushData(`Hello ${i}`)
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: string, index: number) => {
        ListItem() {
          Row() {
            Text(item)
              .width('100%')
              .height(80)
              .backgroundColor(Color.Gray)
              .onAppear(() => {
                console.info("appear:" + item)
              })
          }.margin({ left: 10, right: 10 })
        }
      }, (item: string) => item)
    }.cachedCount(10)
    .onScrollIndex((start, end, center) => {
      if (end === this.data.totalCount() - 1) {
        console.log('scroll to end')
        this.data.operateData();
      }
    })
  }
}

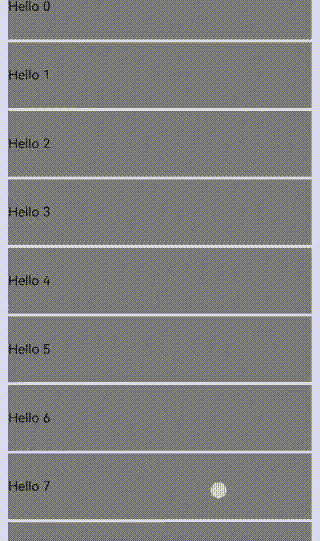

Fixed result LazyForEach-Screen-Flicker-Repair

Component Reuse Rendering Exception

If @Reusable and @ComponentV2 are used together, the component rendering is abnormal.

/** For details about the BasicDataSource code of the StringData array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: StringData[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): StringData {
    return this.dataArray[index];
  }

  public pushData(data: StringData): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
}


class StringData {
  message: string;

  constructor(message: string) {
    this.message = message;
  }
}

@Entry
@ComponentV2
struct MyComponent {
  data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 30; i++) {
      this.data.pushData(new StringData('Hello' + i));
    }
  }

  build() {
    List({ space: 3 }) {
      LazyForEach(this.data, (item: StringData, index: number) => {
        ListItem() {
          ChildComponent({ data: item })
            .onAppear(() => {
              console.log('onAppear: ' + item.message)
            })
        }
      }, (item: StringData, index: number) => index.toString())
    }.cachedCount(5)
  }
}

@Reusable
@Component
struct ChildComponent {
  @State data: StringData = new StringData('');

  aboutToAppear(): void {
    console.log('aboutToAppear: ' + this.data.message);
  }

  aboutToRecycle(): void {
    console.log('aboutToRecycle: ' + this.data.message);
  }

  // Update the data of the reused component.
  aboutToReuse(params: Record<string, ESObject>): void {
    this.data = params.data as StringData;
    console.log('aboutToReuse: ' + this.data.message);
  }

  build() {
    Row() {
      Text(this.data.message).fontSize(50)
    }
  }
}

The negative example shows that in @ComponentV2 decorated MyComponent, the LazyForEach list uses @Reusable decorated ChildComponent. As a result, the component fails to be rendered. The log shows that the component triggers onAppear but does not trigger aboutToAppear.

Change @ComponentV2 to @Component to rectify the rendering exception. After that, when the swipe event triggers the detach of a component node, the corresponding reusable component ChildComponent is added from the component tree to the reuse cache instead of being destroyed, the aboutToRecycle event is triggered, and log is recorded. When a new node needs to be displayed, the reusable component attaches to the node tree from the reuse cache, triggers aboutToReuse to update the component data, and output logs.

Component Re-Rendering Failure

You need to define a proper function for key generation and return a key associated with the target data. When the target data changes, LazyForEach re-renders the corresponding component only after identifying the key change.

/** For details about the BasicDataSource code of the string array, see the sample code at the end of this topic. **/

class MyDataSource extends BasicDataSource {
  private dataArray: string[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): string {
    return this.dataArray[index];
  }

  public pushData(data: string): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }

  public updateAllData(): void {
    this.dataArray = this.dataArray.map((item: string) => item + `!`);
    this.notifyDataReload();
  }
}

@Entry
@Component
struct MyComponent {
  private data: MyDataSource = new MyDataSource();

  aboutToAppear() {
    for (let i = 0; i <= 20; i++) {
      this.data.pushData(`Hello ${i}`);
    }
  }

  build() {
    Column() {
      Button(`update all`)
        .onClick(() => {
          this.data.updateAllData();
        })
      List({ space: 3 }) {
        LazyForEach(this.data, (item: string) => {
          ListItem() {
            Text(item).fontSize(50)
          }
        })
      }.cachedCount(5)
    }
  }
}

Click update all but the components are not re-rendered. LazyForEach-Refresh-Not-Expected

LazyForEach depends on the generated key to determine whether to re-render the child component. If the key is not changed during data update, LazyForEach does not re-render the corresponding component. For example, if the key generation function is not defined, the key is related only to the component index and the key remains unchanged during data update.

LazyForEach(this.data, (item: string) => {
  ListItem() {
    Text(item).fontSize(50)
  }
}, (item: string) => item) // Define a function for key generation.

After the function is defined, click update all to re-render the components. LazyForEach-Refresh-Not-Expected-Repair

BasicDataSource Sample Code

BasicDataSource Code of the String Array

// BasicDataSource implements the IDataSource API to manage listeners and notify LazyForEach of data updates.
class BasicDataSource implements IDataSource {
  private listeners: DataChangeListener[] = [];
  private originDataArray: string[] = [];

  public totalCount(): number {
    return 0;
  }

  public getData(index: number): string {
    return this.originDataArray[index];
  }

  // This method is called by the framework to add a listener to the LazyForEach data source.
  registerDataChangeListener(listener: DataChangeListener): void {
    if (this.listeners.indexOf(listener) < 0) {
      console.info('add listener');
      this.listeners.push(listener);
    }
  }

  // This method is called by the framework to remove the listener from the LazyForEach data source.
  unregisterDataChangeListener(listener: DataChangeListener): void {
    const pos = this.listeners.indexOf(listener);
    if (pos >= 0) {
      console.info('remove listener');
      this.listeners.splice(pos, 1);
    }
  }

  // Notify LazyForEach that all child components need to be reloaded.
  notifyDataReload(): void {
    this.listeners.forEach(listener => {
      listener.onDataReloaded();
    })
  }

  // Notify LazyForEach that a child component needs to be added for the data item with the specified index.
  notifyDataAdd(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataAdd(index);
      // Method 2: listener.onDatasetChange([{type: DataOperationType.ADD, index: index}]);
    })
  }

  // Notify LazyForEach that the data item with the specified index has changed and the child component needs to be rebuilt.
  notifyDataChange(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataChange(index);
      // Method 2: listener.onDatasetChange([{type: DataOperationType.CHANGE, index: index}]);
    })
  }

  // Notify LazyForEach that the child component needs to be deleted from the data item with the specified index.
  notifyDataDelete(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataDelete(index);
      // Method 2: listener.onDatasetChange([{type: DataOperationType.DELETE, index: index}]);
    })
  }

  // Notify LazyForEach that data needs to be swapped between the from and to positions.
  notifyDataMove(from: number, to: number): void {
    this.listeners.forEach(listener => {
      listener.onDataMove(from, to);
      // Method 2: listener.onDatasetChange ()
      //         [{type: DataOperationType.EXCHANGE, index: {start: from, end: to}}]);
    })
  }

  notifyDatasetChange(operations: DataOperation[]): void {
    this.listeners.forEach(listener => {
      listener.onDatasetChange(operations);
    })
  }
}

BasicDataSource Code of the StringData Array

class BasicDataSource implements IDataSource {
  private listeners: DataChangeListener[] = [];
  private originDataArray: StringData[] = [];

  public totalCount(): number {
    return 0;
  }

  public getData(index: number): StringData {
    return this.originDataArray[index];
  }

  registerDataChangeListener(listener: DataChangeListener): void {
    if (this.listeners.indexOf(listener) < 0) {
      console.info('add listener');
      this.listeners.push(listener);
    }
  }

  unregisterDataChangeListener(listener: DataChangeListener): void {
    const pos = this.listeners.indexOf(listener);
    if (pos >= 0) {
      console.info('remove listener');
      this.listeners.splice(pos, 1);
    }
  }

  notifyDataReload(): void {
    this.listeners.forEach(listener => {
      listener.onDataReloaded();
    })
  }

  notifyDataAdd(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataAdd(index);
    })
  }

  notifyDataChange(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataChange(index);
    })
  }

  notifyDataDelete(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataDelete(index);
    })
  }

  notifyDataMove(from: number, to: number): void {
    this.listeners.forEach(listener => {
      listener.onDataMove(from, to);
    })
  }

  notifyDatasetChange(operations: DataOperation[]): void {
    this.listeners.forEach(listener => {
      listener.onDatasetChange(operations);
    })
  }
}

你可能感兴趣的鸿蒙文章

harmony 鸿蒙\@AnimatableExtend Decorator: Definition of Animatable Attributes

harmony 鸿蒙Application State Management Overview

harmony 鸿蒙AppStorage: Storing Application-wide UI State

harmony 鸿蒙Basic Syntax Overview

harmony 鸿蒙\@Builder Decorator: Custom Builder Function

harmony 鸿蒙\@BuilderParam Decorator: Referencing the \@Builder Function

harmony 鸿蒙Creating a Custom Component

harmony 鸿蒙Mixing Use of Custom Components

harmony 鸿蒙Constraints on Access Modifiers of Custom Component Member Variables

harmony 鸿蒙Freezing a Custom Component

0  赞
  • 所属分类： 后端技术
  • 本文标签：
  • 版权声明： 原创文章如转载，请注明本文链接: https://www.seaxiang.com/blog/PBvAeq
热门推荐
标签云
Linux Java Spring Spring Boot docker 大数据 前端 生活 maven golang 软件 spring cloud fintech mac vscode 其他 区块链 以太坊 V神 开发者 技术 股票 git greenplum 分布式事务 chrome mysql flink kafka 设计模式 原理 鸿蒙 seo
最新文章
本文目录
