@ohos.graphics.text (Text)

The Text module provides a set of APIs for text layout and font management. It aims to deliver high-quality typesetting through features like character-to-glyph conversion, kerning, line breaking, alignment, and text measurement. Additionally, it provides font management capabilities, including font registration, font descriptors, and font collection management.

This module provides the following classes for creating complex text paragraphs:

• TextStyle: defines the font type, size, spacing, and other text properties.
• FontCollection: manages a collection of different fonts.
• FontDescriptor: provides information about font descriptors.
• ParagraphStyle: controls line break and word break strategies for the entire paragraph.
• ParagraphBuilder: used to create different paragraph objects.
• Paragraph: created by calling build() of the ParagraphBuilder class.
• LineTypeset: created by calling buildLineTypeset() of the ParagraphBuilder class.
• TextLine: paragraph text on a line-by-line basis, obtained by calling getTextLines() of the Paragraph class.
• Run: text typesetting unit, obtained by calling getGlyphRuns() of the TextLine class.

NOTE

The initial APIs of this module are supported since API version 12. Newly added APIs will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { text } from '@kit.ArkGraphics2D';

text.matchFontDescriptors¹⁸⁺

matchFontDescriptors(desc: FontDescriptor): Promise<Array<FontDescriptor>>

Obtains all system font descriptors that match the provided font descriptor. This API uses a promise to return the result.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |desc|FontDescriptor|Yes|Font descriptor to match against. If this parameter is left unspecified, all system font descriptors are returned. If a specific value is provided, the matching is performed based on the value provided. If the matching fails, an empty array is returned.|

Return value

|Type|Description| |-|-| |Promise<Array<FontDescriptor>>|Promise used to return all matched system font descriptors.|

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified;2. Incorrect parameter types;3. Parameter verification failed.

Example

import { text } from "@kit.ArkGraphics2D"
import { BusinessError } from '@kit.BasicServicesKit';

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        Button("font descriptor")
          .fontSize(30)
          .fontWeight(FontWeight.Bold)
          .width(300)
          .height(80)
          .onClick(() => {
            console.info(`Get font descriptor start`)
            let promise = text.matchFontDescriptors({
              weight: text.FontWeight.W400,
            })
            promise.then((data) => {
              console.info(`Font descriptor array size: ${data.length}`);
              console.info(`Font descriptor result: ${JSON.stringify(data)}`)
            }).catch((error: BusinessError) => {
              console.error(`Failed to match the font descriptor, error: ${JSON.stringify(error)}`);
            });
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

text.getSystemFontFullNamesByType¹⁴⁺

getSystemFontFullNamesByType(fontType: SystemFontType): Promise<Array<string>>

Obtains the full names of all fonts of the specified type. This API uses a promise to return the result.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |fontType|SystemFontType|Yes|Font type.|

Return value

|Type|Description| |-|-| |Promise<Array<string>>|Promise used to return the full names of all fonts of the specified type.|

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified;2. Incorrect parameter types; 3. Parameter verification failed.

Example

import { text } from "@kit.ArkGraphics2D"
import { BusinessError } from '@kit.BasicServicesKit';

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        Button("get font list")
          .fontSize(30)
          .fontWeight(FontWeight.Bold)
          .width(300)
          .height(80)
          .onClick(() => {
            let fontType:text.SystemFontType = text.SystemFontType.GENERIC
            let promise = text.getSystemFontFullNamesByType(fontType)
            promise.then((data) => {
              console.info(`then font list size: ${data.length}`)
              data.forEach((fontItem) => {
                console.info(fontItem)
              })
            }).catch((error: BusinessError) => {
              console.error(`Failed to get font fullNames by type, error: ${JSON.stringify(error)}`);
            });
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

text.getFontDescriptorByFullName¹⁴⁺

getFontDescriptorByFullName(fullName: string, fontType: SystemFontType): Promise<FontDescriptor>

Obtains the font descriptor based on the font name and type. This API uses a promise to return the result.

A font descriptor is a data structure that describes font features. It contains details of the font appearance and properties.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |fullName|string|Yes|Font name, corresponding to the value of fullName in the name table of the corresponding font file. It is obtained by calling getSystemFontFullNamesByType.| |fontType|SystemFontType|Yes|Font type.|

Return value

|Type|Description| |-|-| |Promise<FontDescriptor>|Promise used to return the font descriptor.|

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error.Possible causes:1.Mandatory parameters are left unspecified;2.Incorrect parameter types.

Example

import { text } from "@kit.ArkGraphics2D"
import { BusinessError } from '@kit.BasicServicesKit';

@Entry
@Component
struct Index {
  build() {
    Row() {
      Column() {
        Button("get fontDesciptor")
          .fontSize(30)
          .fontWeight(FontWeight.Bold)
          .width(300)
          .height(80)
          .onClick(() => {
            let fontType:text.SystemFontType = text.SystemFontType.GENERIC
            let promise = text.getFontDescriptorByFullName("HarmonyOS Sans", fontType)
            promise.then((fontdecriptor) => {
              console.info(`desc: ${JSON.stringify(fontdecriptor)}`)
            }).catch((error: BusinessError) => {
              console.error(`Failed to get fontDescriptor by fullName, error: ${JSON.stringify(error)}`);
            });
          })
      }
      .width('100%')
    }
    .height('100%')
  }
}

TextAlign

Enumerates the text alignment modes.

System capability: SystemCapability.Graphics.Drawing

Name	Value	Description
LEFT	0	Left-aligned.
RIGHT	1	Right-aligned.
CENTER	2	Center-aligned.
JUSTIFY	3	Justified, which means that each line (except the last line) is stretched so that every line has equal width, and the left and right margins are straight.
START	4	Aligned with the start position, which depends on TextDirection.
END	5	Aligned with the end position, which depends on TextDirection.

TextDirection

Enumerates the text directions.

System capability: SystemCapability.Graphics.Drawing

Name	Value	Description
RTL	0	Right to left (RTL).
LTR	1	Left to right (LTR).

BreakStrategy

Enumerates the text break strategies.

System capability: SystemCapability.Graphics.Drawing

Name	Value	Description
GREEDY	0	Fills the current line as much as possible without adding hyphens.
HIGH_QUALITY	1	Optimizes layout and may add hyphens when necessary.
BALANCED	2	Ensures consistent line width in a paragraph, adding hyphens if needed.

WordBreak

Enumerates the word break types.

System capability: SystemCapability.Graphics.Drawing

Name	Value	Description
NORMAL	0	Default mode that break words based on language-specific conventions.
BREAK_ALL	1	Allows breaks within any character in non-CJK text. (CJK means Chinese, Japanese, and Korean.) This value is suitable for Asian text that contains some non-Asian text. For example, it can be used to break consecutive English characters.
BREAK_WORD	2	Allows breaks between any two characters in non-CJK text. It prioritizes breaking at whitespace or other natural breakpoints to keep words intact. If no breakpoints are found, it breaks between any two characters. For CJK text, this behaves like NORMAL.
BREAK_HYPHEN18+	3	Attempts to break words at the end of a line using a hyphen. If a hyphen cannot be added, it behaves like BREAK_WORD.

Decoration

Describes a text decoration.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
textDecoration	TextDecorationType	Yes	Yes	Type of the decoration. The default value is NONE.
color	common2D.Color	Yes	Yes	Color of the decoration. The default value is transparent.
decorationStyle	TextDecorationStyle	Yes	Yes	Style of the decoration. The default value is SOLID.
decorationThicknessScale	number	Yes	Yes	Scale factor for the thickness of the decoration line. The value is a floating point number. The default value is 1.0.

TextDecorationType

Enumerates the text decoration types.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |————–|-|———–| |NONE |0|No decoration is used.| |UNDERLINE |1|An underline is used for decoration. | |OVERLINE |2|An overline is used for decoration. | |LINE_THROUGH |4|A strikethrough is used for decoration. |

TextDecorationStyle

Enumerates the text decoration styles.

System capability: SystemCapability.Graphics.Drawing

|Name|Value|Description| |——|-|——| |SOLID|0|Solid style.| |DOUBLE|1|Double style.| |DOTTED|2|Dotted style.| |DASHED|3|Dashed style.| |WAVY |4|Wavy style.|

FontWeight

Enumerates the font weights.

System capability: SystemCapability.Graphics.Drawing

|Name|Value|Description| |—–|-|——-| |W100|0|Font weight W100.| |W200|1|Font weight W200.| |W300|2|Font weight W300.| |W400|3|Font weight W400.| |W500|4|Font weight W500.| |W600|5|Font weight W600.| |W700|6|Font weight W700.| |W800|7|Font weight W800.| |W900|8|Font weight W900.|

FontWidth

Enumerates the font widths.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |—————-|-|———-| |ULTRA_CONDENSED|1|Ultra condensed.| |EXTRA_CONDENSED|2|Extra condensed.| |CONDENSED |3|Condensed.| |SEMI_CONDENSED |4|Semi condensed.| |NORMAL |5|Normal.| |SEMI_EXPANDED |6|Semi expanded.| |EXPANDED |7|Expanded.| |EXTRA_EXPANDED |8|Extra expanded.| |ULTRA_EXPANDED |9|Ultra expanded.|

FontStyle

Enumerates the font styles.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |——-|-|—————————————————-| |NORMAL|0|Normal. | |ITALIC|1|Italic. If no italic version is available for the current font, the oblique version will be used instead.| |OBLIQUE|2|Oblique. If no oblique version is available for the current font, the italic version will be used instead.|

TextHeightBehavior

Enumerates the text height modifier patterns.

System capability: SystemCapability.Graphics.Drawing

Name	Value	Description
ALL	0x0	Allows the first line of the paragraph to rise and the last line to drop.
DISABLE_FIRST_ASCENT	0x1	Prevents the first line of a paragraph from rising.
DISABLE_LAST_ASCENT	0x2	Prevents the last line of a paragraph from dropping.
DISABLE_ALL	0x1 |0x2	Combines the effects of disabling the first line from rising and the last line from dropping.

TextBaseline

Enumerates the text baseline types.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description| |———–|-|—-| |ALPHABETIC|0|Alphabetic baseline, where the letters in Latin alphabets sit on.| |IDEOGRAPHIC|1|Ideographic baseline, where the baseline is at the bottom of the text area. It is usually used for CJK text.|

EllipsisMode

Enumerates the ellipsis styles.

EllipsisMode.START and EllipsisMode.MIDDLE take effect only when text overflows in a single line.

System capability: SystemCapability.Graphics.Drawing

|Name|Value|Description | |——|-|———| |START|0|Places the ellipsis in the text header. It is valid only when maxLines is set to 1 in ParagraphStyle.| |MIDDLE|1|Places the ellipsis in the middle of the text. It is valid only when maxLines is set to 1 in ParagraphStyle.| |END |2|Places the ellipsis at the end of the text.|

TextShadow

Describes the text shadow.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |————-|—————————————————-|–|—|———————————| |color |common2D.Color|Yes| Yes|Color of the text shadow. The default value is black (255, 0, 0, 0). | |point |common2D.Point|Yes| Yes|Position of the text shadow relative to the text. The horizontal and vertical coordinates must be greater than or equal to 0. | |blurRadius |number |Yes| Yes|Blur radius. The value is a floating point number. The default value is 0.0px. |

RectStyle

Describes the style of a rectangle.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |—————–|—————————————————-|–|—|—————————————-| |color |common2D.Color|Yes| No|Color of the rectangle. | |leftTopRadius |number |Yes| No|Left top radius of the rectangle. | |rightTopRadius |number |Yes| No|Right top radius of the rectangle. | |rightBottomRadius|number |Yes| No|Right bottom radius of the rectangle. | |leftBottomRadius |number |Yes| No|Left bottom radius of the rectangle. |

FontFeature

Describes a font feature.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |———|—————————————————-|–|—|—————————————–| |name |string |Yes| No|String identified by the keyword in the font feature key-value pair. | |value |number |Yes| No|Value in the font feature key-value pair. |

FontVariation

Describes a font variation.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |———|—————————————————-|–|—|—————————————–| |axis |string |Yes| No|String identified by the keyword in the font variation key-value pair. | |value |number |Yes| No|Value in the font variation key-value pair. |

TextStyle

Describes a text style.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |————-|—————————————————-|–|–|———————————————————| |decoration |Decoration |Yes|Yes|Text decoration. By default, no decoration is used. | |color |common2D.Color|Yes|Yes|Text color. The default color is white. | |fontWeight |FontWeight |Yes|Yes|Font weight. The default value is W400. Currently, only the default system font supports font weight adjustment. For other fonts, if the weight is less than semi-bold (W600), there is no variation in stroke thickness. If the weight is greater than or equal to semi-bold, it might result in a fake bold effect. | |fontStyle |FontStyle |Yes|Yes|Font style. The default value is NORMAL. | |baseline |TextBaseline |Yes|Yes|Text baseline type. The default value is ALPHABETIC. | |fontFamilies|Array<string> |Yes|Yes|Array of font families. By default, the array is empty, indicating that all system fonts are matched. | |fontSize |number |Yes|Yes|Font size, in units of px. The value is a floating point number. The default value is 14.0.| |letterSpacing|number |Yes|Yes|Letter spacing, in units of px. The value is a floating point number. The default value is 0.0. A positive value causes characters to spread farther apart, and a negative value bring characters closer together.| |wordSpacing |number |Yes|Yes|Word spacing, in units of px. The value is a floating point number. The default value is 0.0. | |heightScale |number |Yes|Yes|Scale factor of the line height. The value is a floating point number. The default value is 1.0. This parameter is valid only when heightOnly is set to** true**. | |heightOnly |boolean |Yes|Yes|How the height of the text box is set. The value true means that the height of the text box is set based on the font size and the value of heightScale, and false means that the height is set based on the line height and line spacing. The default value is false.| |halfLeading |boolean |Yes|Yes|Whether half leading is enabled. Half leading is the leading split in half and applied equally to the top and bottom edges. The value true means that half leading is enabled, and false means the opposite. The default value is false.| |ellipsis |string |Yes|Yes|Ellipsis content, which will be used to replace the extra content. | |ellipsisMode|EllipsisMode |Yes|Yes|Ellipsis type. The default value is END, indicating that the ellipsis is at the end of a line. | |locale |string |Yes|Yes|Locale. For example, ‘en’ indicates English, ‘zh-Hans’ indicates Simplified Chinese, and ‘zh-Hant’ indicates Traditional Chinese. For details, see ISO 639-1. The default value is an empty string.| |baselineShift|number |Yes|Yes|Shift of the baseline. The value is a floating point number. The default value is 0.0px. | |fontFeatures|Array<FontFeature> |Yes|Yes|Array of font features.| |fontVariations|Array<FontVariation> |Yes|Yes|Array of font variations.| |textShadows |Array<TextShadow> |Yes|Yes|Array of shadows.| |backgroundRect|RectStyle |Yes|Yes|Rectangle style.|

StrutStyle

Describes the strut style, which determines the line spacing, baseline alignment mode, and other properties related to the line height when drawing texts. The strut style is disabled by default.

System capability: SystemCapability.Graphics.Drawing

|Name |Type |Read Only|Optional|Description | |————-|—————————————————-|—-|–|———————————————————————| |fontFamilies |Array<string> |Yes|Yes|List of font families. By default, the list corresponds to the system’s default fonts. | |fontStyle |FontStyle |Yes|Yes|Font style. The default value is NORMAL. | |fontWidth |FontWidth |Yes|Yes|Font width. The default value is NORMAL. | |fontWeight |FontWeight |Yes|Yes|Font weight. The default value is W400. The default system font supports font weight adjustment. For other fonts, if the weight is less than W600, there is no variation in stroke thickness. If the weight is greater than or equal to W600, it might result in a fake bold effect. | |fontSize |number |Yes|Yes|Font size, in units of px. The value is a floating point number. The default value is 14.0. | |height |number |Yes|Yes|Scale factor of the line height. The value is a floating point number. The default value is 1.0. | |leading |number |Yes|Yes|Custom leading to be applied to the strut. The value is a floating point number. The default value is -1.0. | |forceHeight |boolean |Yes|Yes|Whether to forcibly use the strut height for all lines. The value true means to forcibly use the strut height for all lines, and false means the opposite. The default value is false. | |enabled |boolean |Yes|Yes|Whether to enable the strut style. The value true means to enable the strut style, and false means the opposite. The default value is false. | |heightOverride|boolean |Yes|Yes|Whether to override the height. The value true means to override the height, and false means the opposite. The default value is false. | |halfLeading |boolean |Yes|Yes|Whether half leading is enabled. Half leading is the leading split in half and applied equally to the top and bottom edges. The value true means that half leading is enabled, and false means the opposite. The default value is false. |

FontDescriptor¹⁴⁺

Describes the font descriptor information.

System capability: SystemCapability.Graphics.Drawing

|Name|Type|Read Only|Optional|Description| |-|-|-|-|-| |path|string|No|Yes|Absolute path of the font. Any string is acceptable, but the value must adhere to the system’s path constraints. The default value is an empty string.| |postScriptName|string|No|Yes|Unique name of the font. Any string is acceptable. The default value is an empty string.| |fullName|string|No|Yes|Font name. Any string is acceptable. The default value is an empty string.| |fontFamily|string|No|Yes|Family name of the font. Any string is acceptable. The default value is an empty string.| |fontSubfamily|string|No|Yes|Subfamily name of the font. Any string is acceptable. The default value is an empty string.| |weight|FontWeight|No|Yes|Font weight. The default value is 0.| |width|number|No|Yes|Font width. The value is an integer ranging from 1 to 9. The default value is 0.| |italic|number|No|Yes|Whether the font is italic. The value 0 means that the font is not italic, and 1 means the opposite. The default value is 0.| |monoSpace|boolean|No|Yes|Whether the font is monospaced. The value true means that the font is monospaced, and false means the opposite. The default value is false.| |symbolic|boolean|No|Yes|Whether the font is symbolic. The value true means that the font is symbolic, and false means the opposite.|

FontCollection

Implements a collection of fonts.

getGlobalInstance

static getGlobalInstance(): FontCollection

Obtains a global FontCollection instance.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
FontCollection	FontCollection instance.

Example

import { text } from "@kit.ArkGraphics2D"

function textFunc() {
  let fontCollection = text.FontCollection.getGlobalInstance();
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

loadFontSync

loadFontSync(name: string, path: string|Resource): void

Loads a custom font. This API returns the result synchronously. In this API, name specifies the alias of the font, and the custom font effect can be displayed only when the value of name is set in fontFamilies in TextStyle. The supported font file formats are .ttf and .otf.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
name	string	Yes	Name of the font.
path	string |Resource	Yes	Path of the font file to import. The value must be file://absolute path of the font file or rawfile/directory or file name.

Example

import { text } from "@kit.ArkGraphics2D"

let fontCollection: text.FontCollection = new text.FontCollection();

@Entry
@Component
struct RenderTest {
  LoadFontSyncTest() {
    fontCollection.loadFontSync('Clock_01', 'file:///system/fonts/HarmonyClock_01.ttf')
    let fontFamilies: Array<string> = ["Clock_01"]
    let myTextStyle: text.TextStyle = {
      fontFamilies: fontFamilies
    };
    let myParagraphStyle: text.ParagraphStyle = {
      textStyle: myTextStyle,
    }
    let paragraphBuilder: text.ParagraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);

    let textData = "Test loadFontSync to load the font HarmonyClock_01.ttf."
    paragraphBuilder.addText(textData);
    let paragraph: text.Paragraph = paragraphBuilder.build();
    paragraph.layoutSync(600);
  }

  aboutToAppear() {
    this.LoadFontSyncTest();
  }

  build() {
  }
}

loadFont¹⁸⁺

loadFont(name: string, path: string|Resource): Promise<void>

Loads a custom font. This API uses a promise to return the result. In this API, name specifies the alias of the font, and the custom font effect can be displayed only when the value of name is set in fontFamilies in TextStyle. The supported font file formats are ttf and otf.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
name	string	Yes	Name of the font. Any string is acceptable.
path	string |Resource	Yes	Path of the font file to load. The value must be file://absolute path of the font file or rawfile/directory or file name.

Return value

Type	Description
Promise<void>	Promise that returns no value.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified;2. Incorrect parameter types; 3. Parameter verification failed.

Example

import { text } from "@kit.ArkGraphics2D"

let fontCollection: text.FontCollection = new text.FontCollection();

@Entry
@Component
struct RenderTest {
  async loadFontPromise() {
    fontCollection.loadFont('testName', 'file:///system/fonts/a.ttf').then((data) => {
      console.info(`Succeeded in doing loadFont ${JSON.stringify(data)} `);
    }).catch((error: Error) => {
      console.error(`Failed to do loadFont, error: ${JSON.stringify(error)} message: ${error.message}`);
    });
  }

  aboutToAppear() {
    this.loadFontPromise();
  }

  build() {
  }
}

clearCaches

clearCaches(): void

Clears the font cache.

The font cache has a memory limit and a clearing mechanism. It occupies limited memory. You are not advised to clear it unless otherwise required.

System capability: SystemCapability.Graphics.Drawing

Example

import { text } from "@kit.ArkGraphics2D"

@Entry
@Component
struct Index {
  build() {
    Column() {
      Button().onClick(() => {
        text.FontCollection.getGlobalInstance().clearCaches();
      })
    }
  }
}

ParagraphStyle

Describes a paragraph style.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
textStyle	TextStyle	Yes	Yes	Text style applied to the paragraph. The default value is the initial text style.
textDirection	TextDirection	Yes	Yes	Text direction. The default value is LTR.
align	TextAlign	Yes	Yes	Text alignment mode. The default value is START. This parameter is invalid when the tab parameter is configured.
wordBreak	WordBreak	Yes	Yes	Word break type. The default value is BREAK_WORD.
maxLines	number	Yes	Yes	Maximum number of lines. The value is an integer. The default value is 1e9.
breakStrategy	BreakStrategy	Yes	Yes	Text break strategy. The default value is GREEDY.
strutStyle	StrutStyle	Yes	Yes	Strut style. The default value is the initial StrutStyle object.
textHeightBehavior	TextHeightBehavior	Yes	Yes	Text height modifier pattern. The default value is ALL.

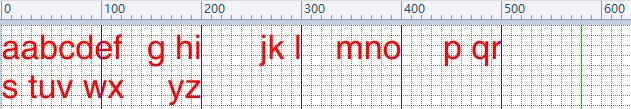

tab18+	TextTab	Yes	Yes	Alignment mode and position of the text after the tab character in a paragraph. By default, the tab character is replaced with a space. This parameter is invalid when it is used together with the align parameter or the ellipsis parameter in TextStyle.

PlaceholderAlignment

Enumerates the vertical alignment modes of a placeholder relative to the surrounding text.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |——————-|-|———————-| |OFFSET_AT_BASELINE|0|Aligns the baseline of the placeholder to the baseline of the text. | |ABOVE_BASELINE |1|Aligns the bottom edge of the placeholder to the baseline of the text.| |BELOW_BASELINE |2|Aligns the top edge of the placeholder to the baseline of the text.| |TOP_OF_ROW_BOX |3|Aligns the top edge of the placeholder to the top edge of the text.| |BOTTOM_OF_ROW_BOX |4|Aligns the bottom edge of the placeholder to the bottom edge of the text.| |CENTER_OF_ROW_BOX |5|Center-aligned.|

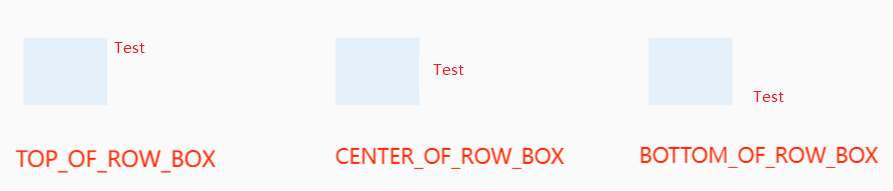

NOTE

The preceding figure shows only the last three alignment modes. The first three alignment modes are similar. The only difference is that the comparison position changes to the text baseline, which is the green line shown below.

PlaceholderSpan

Describes the placeholder style.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
width	number	Yes	No	Width of the placeholder, in units of px. The value is a floating point number.
height	number	Yes	No	Height of the placeholder, in units of px. The value is a floating point number.
align	PlaceholderAlignment	Yes	No	Vertical alignment of the placeholder relative to the surrounding text.
baseline	TextBaseline	Yes	No	Type of the text baseline.
baselineOffset	number	Yes	No	Offset to the text baseline, in units of px. The value is a floating point number.

Range

Describes a left-closed and right-open interval.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
start	number	Yes	No	Index of the leftmost point of the interval. The value is an integer.
end	number	Yes	No	Index of the rightmost point of the interval. The value is an integer.

Paragraph

Implements a carrier that stores the text content and style. You can perform operations such as layout and drawing.

Before calling any of the following APIs, you must use build() of the ParagraphBuilder class to create a Paragraph object.

layoutSync

layoutSync(width: number): void

Performs layout and calculates the positions of all glyphs.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
width	number	Yes	Maximum width of a single line, in units of px. The value is a floating point number.

Example

paragraph.layoutSync(100);

layout¹⁸⁺

layout(width: number): Promise<void>

Performs layout and calculates the positions of all glyphs. This API uses a promise to return the result.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
width	number	Yes	Maximum width of a single line, in units of px. The value is a floating point number.

Return value

Type	Description
Promise<void>	Promise that returns no value.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error. Possible causes: 1. Mandatory parameters are left unspecified;2. Incorrect parameter types;3. Parameter verification failed.

Example

import { drawing, text } from '@kit.ArkGraphics2D'
import { image } from '@kit.ImageKit';

let textStyle: text.TextStyle = {
  color: {
    alpha: 255,
    red: 255,
    green: 0,
    blue: 0
  },
  fontSize: 30,
};
let paragraphStyle: text.ParagraphStyle = {
  textStyle: textStyle,
};
let fontCollection: text.FontCollection = new text.FontCollection();
let paragraphBuilder = new text.ParagraphBuilder(paragraphStyle, fontCollection);
// Add a text string.
paragraphBuilder.addText("test");
// Create a paragraph object.
let paragraph = paragraphBuilder.build();

function textFunc(pixelmap: PixelMap) {
  // Construct a canvas using an image object.
  let canvas = new drawing.Canvas(pixelmap);
  // Draw a text string.
  paragraph.paint(canvas, 100, 10);
}

@Entry
@Component
struct Index {
  @State pixelmap?: PixelMap = undefined;
  fun: Function = textFunc;

  async prepareLayoutPromise() {
    // Calculate the layout of the paragraph object.
    paragraph.layout(200).then((data) => {
      console.info(`Succeeded in doing layout,  ${JSON.stringify(data)}`);
    }).catch((error: Error) => {
      console.error(`Failed to do layout, error: ${JSON.stringify(error)} message: ${error.message}`);
    });
  }

  aboutToAppear() {
    this.prepareLayoutPromise();
  }

  build() {
    Column() {
      Image(this.pixelmap).width(200).height(200);
      Button("layout")
        .width(100)
        .height(50)
        .onClick(() => {
          const color: ArrayBuffer = new ArrayBuffer(160000);
          let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
          if (this.pixelmap == undefined) {
            // Construct an image object.
            this.pixelmap = image.createPixelMapSync(color, opts);
          }
          // Draw the text.
          this.fun(this.pixelmap);
        })
    }
  }
}

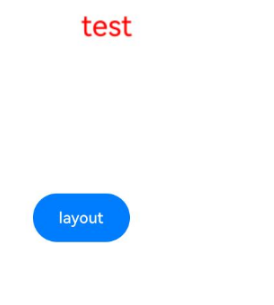

NOTE

The following figure shows the running result of the sample code of the layout API after the button is tapped.

paint

paint(canvas: drawing.Canvas, x: number, y: number): void

Paints the text on the canvas with the coordinate point (x, y) as the upper left corner.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
canvas	drawing.Canvas	Yes	Target canvas.
x	number	Yes	X coordinate of the upper left corner. The value is a floating point number.
y	number	Yes	Y coordinate of the upper left corner. The value is a floating point number.

Example

const color: ArrayBuffer = new ArrayBuffer(160000);
let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
let pixelMap: image.PixelMap = image.createPixelMapSync(color, opts);
let canvas = new drawing.Canvas(pixelMap);
paragraph.paint(canvas, 0, 0);

paintOnPath

paintOnPath(canvas: drawing.Canvas, path: drawing.Path, hOffset: number, vOffset: number): void

Draws text along a path on the canvas.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
canvas	drawing.Canvas	Yes	Target canvas.
path	drawing.Path	Yes	Path along which the text is drawn.
hOffset	number	Yes	Horizontal offset along the path direction. A positive number indicates a position that is ahead along the path from its start point, and a negative number indicates a position that is behind from the start point.
vOffset	number	Yes	Vertical offset along the path direction. A positive number indicates a position on the left side of the path, and a negative number indicates a position on the right side of the path.

Example

const color: ArrayBuffer = new ArrayBuffer(160000);
let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
let pixelMap: image.PixelMap = image.createPixelMapSync(color, opts);
let canvas = new drawing.Canvas(pixelMap);
let path = new drawing.Path();
path.arcTo(20, 20, 180, 180, 180, 90);
paragraph.paintOnPath(canvas, path, 0, 0);

getMaxWidth

getMaxWidth(): number

Obtains the maximum width of the line in the text.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Maximum line width, in units of px. The value is a floating point number.

Example

let maxWidth = paragraph.getMaxWidth();

getHeight

getHeight(): number

Obtains the total height of the text.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Total height, in units of px. The value is a floating point number.

Example

let height = paragraph.getHeight();

getLongestLine

getLongestLine(): number

Obtains the longest line in the text.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Longest line, in units of px. The value is a floating point number.

Example

let longestLine = paragraph.getLongestLine();

getLongestLineWithIndent¹³⁺

getLongestLineWithIndent(): number

Obtains the width of the longest line, including its indentation, in the text. You are advised to round up the return value. If the text content is empty, 0 is returned.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Width of the longest line, including its indentation. The value is a floating point number, in px.

Example

let longestLineWithIndent = paragraph.getLongestLineWithIndent();

getMinIntrinsicWidth

getMinIntrinsicWidth(): number

Obtains the minimum intrinsic width of the paragraph.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Minimum intrinsic width, in units of px. The value is a floating point number.

Example

let minIntrinsicWidth = paragraph.getMinIntrinsicWidth();

getMaxIntrinsicWidth

getMaxIntrinsicWidth(): number

Obtains the maximum intrinsic width of the paragraph.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Maximum intrinsic width, in units of px. The value is a floating point number.

Example

let maxIntrinsicWidth = paragraph.getMaxIntrinsicWidth();

getAlphabeticBaseline

getAlphabeticBaseline(): number

Obtains the alphabetic baseline.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Alphabetic baseline, in units of px. The value is a floating point number.

Example

let alphabeticBaseline = paragraph.getAlphabeticBaseline();

getIdeographicBaseline

getIdeographicBaseline(): number

Obtains the ideographic baseline.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Ideographic baseline, in units of px. The value is a floating point number.

Example

let ideographicBaseline = paragraph.getIdeographicBaseline();

getRectsForRange

getRectsForRange(range: Range, widthStyle: RectWidthStyle, heightStyle: RectHeightStyle): Array<TextBox>

Obtains the rectangles occupied by the characters in the range of the text under the given rectangle width and height.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
range	Range	Yes	Range of the text.
widthStyle	RectWidthStyle	Yes	Width of the rectangle.
heightStyle	RectHeightStyle	Yes	Height of the rectangle.

Return value

Type	Description
Array<TextBox>	Array holding the rectangles obtained.

Example

let range: text.Range = { start: 0, end: 1};
let rects = paragraph.getRectsForRange(range, text.RectWidthStyle.TIGHT, text.RectHeightStyle.TIGHT);

getRectsForPlaceholders

getRectsForPlaceholders(): Array<TextBox>

Obtains the rectangles occupied by all placeholders in the text.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<TextBox>	Array holding the rectangles obtained.

Example

let placeholderRects = paragraph.getRectsForPlaceholders();

getGlyphPositionAtCoordinate

getGlyphPositionAtCoordinate(x: number, y: number): PositionWithAffinity

Obtains the position of a glyph closest to the given coordinates.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
x	number	Yes	X coordinate. The value is a floating point number.
y	number	Yes	Y coordinate. The value is a floating point number.

Return value

Type	Description
PositionWithAffinity	Position of the glyph.

Example

let positionWithAffinity = paragraph.getGlyphPositionAtCoordinate(0, 0);

getWordBoundary

getWordBoundary(offset: number): Range

Obtains the range of the word where the glyph with a given offset is located.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
offset	number	Yes	Offset of the glyph. The value is an integer.

Return value

Type	Description
Range	Range of the word.

Example

let wordRange = paragraph.getWordBoundary(0);

getLineCount

getLineCount(): number

Obtains the number of text lines.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Number of text lines. The value is an integer.

Example

let lineCount = paragraph.getLineCount();

getLineHeight

getLineHeight(line: number): number

Obtains the height of a given line.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
line	number	Yes	Index of the line. The value is an integer ranging from 0 to getLineCount() – 1.

Return value

Type	Description
number	Line height.

Example

let lineHeight = paragraph.getLineHeight(0);

getLineWidth

getLineWidth(line: number): number

Obtains the width of a given line.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
line	number	Yes	Index of the line. The value is an integer ranging from 0 to getLineCount() – 1.

Return value

Type	Description
number	Line width.

Example

let lineWidth = paragraph.getLineWidth(0);

didExceedMaxLines

didExceedMaxLines(): boolean

Checks whether the number of lines in the paragraph exceeds the maximum.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
boolean	Check result. The value true means that the number of lines exceeds the maximum, and false means the opposite.

Example

let didExceed = paragraph.didExceedMaxLines();

getTextLines

getTextLines(): Array<TextLine>

Obtains all the text lines.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<TextLine>	Array of text lines.

Example

let lines = paragraph.getTextLines();

getActualTextRange

getActualTextRange(lineNumber: number, includeSpaces: boolean): Range

Obtains the actually visible text range in the specified line, excluding any overflow ellipsis.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
lineNumber	number	Yes	Line number of the text range, starting from 0. This API can only be used to obtain the bounds of existing lines. That is, the line number must start from 0, and the maximum line number is getLineCount - 1.
includeSpaces	boolean	Yes	Whether spaces are included. The value true means that spaces are contained, and false means the opposite.

Return value

Type	Description
Range	Text range obtained. If the line index is invalid, start and end are both 0.

Example

let rang = paragraph.getActualTextRange(0, true);

getLineMetrics

getLineMetrics(): Array<LineMetrics>

Obtains an array of line measurement information.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<LineMetrics>	Array of line measurement information.

Example

let arrLineMetrc =  paragraph.getLineMetrics();

getLineMetrics

getLineMetrics(lineNumber: number): LineMetrics|undefined

Obtains the line measurement information of a line.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
lineNumber	number	Yes	Line number, starting from 0.

Return value

Type	Description
LineMetrics	LineMetrics object containing the measurement information if the specified line number is valid and the measurement information exists. If the line number is invalid or the measurement information cannot be obtained, undefined is returned.

Example

let lineMetrics =  paragraph.getLineMetrics(0);

LineTypeset¹⁸⁺

Implements a carrier that stores the text content and style. It can be used to compute layout details for individual lines of text.

Before calling any of the following APIs, you must use buildLineTypeset() in the ParagraphBuilder class to create a LineTypeset object.

getLineBreak¹⁸⁺

getLineBreak(startIndex: number, width: number): number

Obtains the number of characters that can fit in the layout from the specified position within a limited width.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
startIndex	number	Yes	Start position (inclusive) for calculation. The value is an integer in the range [0, total number of text characters). If the parameter is invalid, an exception is thrown.
width	number	Yes	Layout width. The value is a floating point number greater than 0, in px.

Return value

Type	Description
number	Number of characters.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error.Possible causes:1.Mandatory parameters are left unspecified;2.Incorrect parameter types;3. Parameter verification failed.

Example

let startIndex = 0;
let width = 100.0;
let count = lineTypeset.getLineBreak(startIndex, width);

createLine¹⁸⁺

createLine(startIndex: number, count: number): TextLine

Generates a text line object based on the specified layout range.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
startIndex	number	Yes	Start position for layout calculation. The value is an integer in the range [0, total number of text characters).
count	number	Yes	Number of characters from the specified start position. The value is an integer in the range [0, total number of text characters). The sum of startIndex and count cannot be greater than the total number of text characters. When count is 0, the range is [startIndex, end of the text]. You can use getLineBreak to obtain the number of characters that can fit in the layout.

Return value

Type	Description
TextLine	TextLine object generated based on the characters in the text range.

Error codes

For details about the error codes, see Universal Error Codes.

ID	Error Message
401	Parameter error.Possible causes:1.Mandatory parameters are left unspecified;2.Incorrect parameter types;3. Parameter verification failed.

Example

let startIndex = 0;
let width = 100.0;
let count = lineTypeset.getLineBreak(startIndex, width);
let line : text.TextLine = lineTypeset.createLine(startIndex, count);

RunMetrics

Describes the layout information and measurement information of a run of text in a text line.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
textStyle	TextStyle	Yes	No	Text style.
fontMetrics	drawing.FontMetrics	Yes	No	Font measurement information.

LineMetrics

Describes the measurement information of a single line of text in the text layout.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
startIndex	number	Yes	No	Start index of the line in the text buffer.
endIndex	number	Yes	No	End index of the line in the text buffer.
ascent	number	Yes	No	Ascent, that is, the distance from the baseline to the top of the character.
descent	number	Yes	No	Descent, that is, the distance from the baseline to the bottom of the character.
height	number	Yes	No	Height of the line, which is Math.round(ascent + descent).
width	number	Yes	No	Width of the line.
left	number	Yes	No	Left edge of the line. The right edge is the value of left plus the value of width.
baseline	number	Yes	No	Y coordinate of the baseline in the line relative to the top of the paragraph.
lineNumber	number	Yes	No	Line number, starting from 0.
topHeight	number	Yes	No	Height from the top to the current line.
runMetrics	Map	Yes	No	Mapping between the text index range and the associated font measurement information.

TextBox

Describes the rectangle that holds the text.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
rect	common2D.Rect	Yes	No	Information about the rectangle.
direction	TextDirection	Yes	No	Text direction.

PositionWithAffinity

Describes the position and affinity of a glyph.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
position	number	Yes	No	Index of the glyph relative to the paragraph. The value is an integer.
affinity	Affinity	Yes	No	Affinity of the position.

RectWidthStyle

Enumerates the rectangle width styles.

System capability: SystemCapability.Graphics.Drawing

|Name|Value|Description | |—–|-|————————————–| |TIGHT|0|If letterSpacing is not set, the rectangle conforms tightly to the text it contains. However, if letterSpacing is set, a gap is introduced between the rectangle and text.| |MAX |1|The rectangle’s width is extended to align with the widest rectangle across all lines.|

RectHeightStyle

Enumerates the rectangle height styles.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |————————-|-|———————————————-| |TIGHT |0|Tight style. | |MAX |1|Extends the height to match the highest rectangle in all lines. | |INCLUDE_LINE_SPACE_MIDDLE|2|Includes half of the line spacing to both the top and bottom of the rectangle.| |INCLUDE_LINE_SPACE_TOP |3|Includes the line spacing to the top of the rectangle. | |INCLUDE_LINE_SPACE_BOTTOM|4|Includes the line spacing to the bottom of the rectangle. | |STRUT |5|Sets the height according to the strut style. |

Affinity

Enumerates the affinity modes.

System capability: SystemCapability.Graphics.Drawing

|Name |Value|Description | |———-|-|—————————–| |UPSTREAM |0|The position has affinity for the upstream side of the text position.| |DOWNSTREAM|1|The position has affinity for the downstream side of the text position.|

ParagraphBuilder

Implements a paragraph builder.

constructor

constructor(paragraphStyle: ParagraphStyle, fontCollection: FontCollection)

A constructor used to create a ParagraphBuilder object.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
paragraphStyle	ParagraphStyle	Yes	Paragraph style.
fontCollection	FontCollection	Yes	Font collection.

Example

import { text } from "@kit.ArkGraphics2D";

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color: { alpha: 255, red: 255, green: 0, blue: 0 },
    fontSize: 33,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle: myTextStyle,
    align: text.TextAlign.END,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

pushStyle

pushStyle(textStyle: TextStyle): void

Applies a new style to the current text blob.

NOTE

When you update the style of the current text blob, all text added afterward will use this new style.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
textStyle	TextStyle	Yes	Text style, which describes various visual attributes of text, such as font, font size, color, font weight, word spacing, line spacing, decoration (such as underline and strikethrough), and text shadow.

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color: { alpha: 255, red: 255, green: 0, blue: 0 },
    fontSize: 33,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle: myTextStyle,
    align: text.TextAlign.CENTER,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.pushStyle(myTextStyle);
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

popStyle

popStyle(): void

Restores the previous text style.

System capability: SystemCapability.Graphics.Drawing

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color: { alpha: 255, red: 255, green: 0, blue: 0 },
    fontSize: 33,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle: myTextStyle,
    align: text.TextAlign.END,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.pushStyle(myTextStyle);
  paragraphBuilder.popStyle();
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

addText

addText(text: string): void

Inserts a text string into the paragraph being built.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
text	string	Yes	Exact text string inserted into the paragraph. If an invalid Unicode character is provided, it is displayed as �.

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color: { alpha: 255, red: 255, green: 0, blue: 0 },
    fontSize: 33,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle: myTextStyle,
    align: text.TextAlign.END,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.addText("123666");
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

addPlaceholder

addPlaceholder(placeholderSpan: PlaceholderSpan): void

Inserts a placeholder into the paragraph being built.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
placeholderSpan	PlaceholderSpan	Yes	Placeholder span, which describes the size, alignment, baseline type, and baseline offset of the placeholder.

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc() {
  let myParagraphStyle: text.ParagraphStyle = {
    align: text.TextAlign.END,
  };
  let myPlaceholderSpan: text.PlaceholderSpan = {
    width: 10000,
    height: 10000000,
    align: text.PlaceholderAlignment.ABOVE_BASELINE,
    baseline: text.TextBaseline.ALPHABETIC,
    baselineOffset: 100000
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.addPlaceholder(myPlaceholderSpan);
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

build

build(): Paragraph

Creates a paragraph object that can be used for subsequent layout and rendering.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Paragraph	Paragraph object that can be used for subsequent rendering.

Example

import { drawing, text, common2D } from '@kit.ArkGraphics2D'
import { image } from '@kit.ImageKit';

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color : {alpha: 255, red: 255, green: 0, blue: 0},
    fontSize : 20,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle : myTextStyle,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.addText("123456789");
  let paragraph = paragraphBuilder.build();
  paragraph.layoutSync(200);
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

buildLineTypeset¹⁸⁺

buildLineTypeset(): LineTypeset

Builds a line typesetter.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
LineTypeset	LineTypeset object that can be used for subsequent rendering.

Example

import { text } from '@kit.ArkGraphics2D'

function test() {
  let myParagraphStyle: text.ParagraphStyle = {
    align: text.TextAlign.JUSTIFY,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.addText("123456789");
  let lineTypeset = paragraphBuilder.buildLineTypeset();
}

@Entry
@Component
struct Index {
  fun: Function = test;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

addSymbol

addSymbol(symbolId: number): void

Inserts a symbol into the paragraph being built.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
symbolId	number	Yes	Symbol code to insert. The value is a hexadecimal number in the range 0xF0000-0xF0C97. For details about the configurable symbol codes (unicode values in the list view), see HarmonyOS Symbol.

Example

import { text } from "@kit.ArkGraphics2D";

function textFunc() {
  let myTextStyle: text.TextStyle = {
    color: { alpha: 255, red: 255, green: 0, blue: 0 },
    fontSize: 33,
  };
  let myParagraphStyle: text.ParagraphStyle = {
    textStyle: myTextStyle,
    align: text.TextAlign.END,
  };
  let fontCollection = new text.FontCollection();
  let paragraphBuilder = new text.ParagraphBuilder(myParagraphStyle, fontCollection);
  paragraphBuilder.addSymbol(0xF0000);
  let paragraph = paragraphBuilder.build();
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

TypographicBounds¹⁸⁺

Describes the typographic boundaries of a text line. These boundaries depend on the typographic font and font size, not on the characters themselves. For example, for the string “ a b ” (which has a space before “a” and a space after “b”), the typographic boundaries include the spaces at the beginning and end of the line. Similarly, the strings “j” and “E” have identical typographic boundaries, which are independent of the characters themselves.

System capability: SystemCapability.Graphics.Drawing

|Name|Type|Read Only|Optional|Description| |-|-|-|-|-| |ascent|number|Yes|No|Ascent of a text line. The value is a floating point number.| |descent|number|Yes|No|Descent of a text line. The value is a floating point number.| |leading|number|Yes|No|Leading of a text line. The value is a floating point number.| |width|number|Yes|No|Width of the typographic boundaries. The value is a floating point number.|

NOTE

The following figure shows the meanings of ascent, descent, leading, top, baseline, bottom and next line top, where width is the width of the text line, including the left and right spaces; ascent is the highest point that the text line reaches upward; descent is the lowest point that the text line reaches downward; leading is the space between lines of text; top is the very highest point of the text line; baseline is where the characters sit; bottom is the lowest point of the text line; next line top is the highest point of the next text line.

The following figure shows the typographic boundaries of the string “ a b “.

The following figure shows the typographic boundaries of the strings “j” and “E”.

CaretOffsetsCallback¹⁸⁺

type CaretOffsetsCallback = (offset: number, index: number, leadingEdge: boolean) => boolean

Defines the callback used to receive the offset and index of each character in a text line object as its parameters.

System capability: SystemCapability.Graphics.Drawing

Parameters |Name|Type|Mandatory|Description| |-|-|-|-| |offset|number|Yes|Offset of each character in a text line. The value is a floating point number.| |index|number|Yes|Index of each character in a text line. The value is an integer.| |leadingEdge|boolean|Yes|Whether the cursor is located at the front of the character. The value true means that the cursor is located at the front of the character, that is, the offset does not contain the character width. The value false means that the cursor is located at the rear of the character, that is, the offset contains the character width.|

Return value

|Type|Description| |-|-| |boolean|Whether to stop calling the callback. The value true means to stop calling the callback, and false means to continue calling the callback.|

TextLine

Implements a carrier that describes the basic text line structure of a paragraph.

Before calling any of the following APIs, you must use getTextLines() of the Paragraph class or createLine() of the LineTypeset class to create a TextLine object.

getGlyphCount

getGlyphCount(): number

Obtains the number of glyphs in this text line.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Number of glyphs. The value is an integer.

Example

let glyphCount = lines[0].getGlyphCount();

getTextRange

getTextRange(): Range

Obtains the range of the text in this text line in the entire paragraph.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Range	Range of the text in this text line in the entire paragraph.

Example

let textRange = lines[0].getTextRange();

getGlyphRuns

getGlyphRuns(): Array<Run>

Obtains the array of glyph runs in the text line.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<Run>	Array of the runs obtained.

Example

let runs = lines[0].getGlyphRuns();

paint

paint(canvas: drawing.Canvas, x: number, y: number): void

Paints this text line on the canvas with the coordinate point (x, y) as the upper left corner.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
canvas	drawing.Canvas	Yes	Target canvas.
x	number	Yes	X coordinate of the upper left corner. The value is a floating point number.
y	number	Yes	Y coordinate of the upper left corner. The value is a floating point number.

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc(pixelmap: PixelMap) {
  let canvas = new drawing.Canvas(pixelmap);
  lines[0].paint(canvas, 0, 0);
}

@Entry
@Component
struct Index {
  @State pixelmap?: PixelMap = undefined;
  fun: Function = textFunc;
  build() {
    Column() {
      Image(this.pixelmap).width(200).height(200);
      Button().onClick(() => {
        if (this.pixelmap == undefined) {
          const color: ArrayBuffer = new ArrayBuffer(160000);
          let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
          this.pixelmap = image.createPixelMapSync(color, opts);
        }
        this.fun(this.pixelmap);
      })
    }
  }
}

createTruncatedLine¹⁸⁺

createTruncatedLine(width: number, ellipsisMode: EllipsisMode, ellipsis: string): TextLine

Creates a truncated text line object.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description | |-|-|-|——————————-| |width|number|Yes|Width of the line after truncation. The value is a floating point number. | |ellipsisMode|EllipsisMode|Yes|Ellipsis mode. Currently, only START and END are supported.| |ellipsis|string|Yes|String used to mark a truncation. |

Return value

Type	Description
TextLine	Truncated text line object.

Example

import { drawing, text, common2D } from '@kit.ArkGraphics2D'
import { image } from '@kit.ImageKit';

function textFunc(pixelmap: PixelMap) {
  let canvas = new drawing.Canvas(pixelmap);
  let truncatedTextLine = lines[0].createTruncatedLine(100, text.EllipsisMode.START, "...");
  truncatedTextLine.paint(canvas, 0, 100);
}

@Entry
@Component
struct Index {
  @State pixelmap?: PixelMap = undefined;
  fun: Function = textFunc;
  build() {
    Column() {
      Image(this.pixelmap).width(200).height(200);
      Button().onClick(() => {
        if (this.pixelmap == undefined) {
          const color: ArrayBuffer = new ArrayBuffer(160000);
          let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
          this.pixelmap = image.createPixelMapSync(color, opts);
        }
        this.fun(this.pixelmap);
      })
    }
  }
}

getTypographicBounds¹⁸⁺

getTypographicBounds(): TypographicBounds

Obtains the typographic boundaries of this text line. These boundaries depend on the typographic font and font size, but not on the characters themselves. For example, for the string “ a b ” (which has a space before “a” and a space after “b”), the typographic boundaries include the spaces at the beginning and end of the line. Similarly, the strings “j” and “E” have identical typographic boundaries, which are independent of the characters themselves.

NOTE

The following figure shows the typographic boundaries of the string “ a b “.

The following figure shows the typographic boundaries of the strings “j” and “E”.

System capability: SystemCapability.Graphics.Drawing

Return value

|Type|Description| |-|-| |TypographicBounds|Typographic boundaries of the text line.|

Example

let bounds = lines[0].getTypographicBounds();
console.info('textLine ascent:' + bounds.ascent + ', descent:' + bounds.descent + ', leading:' + bounds.leading + ', width:' + bounds.width);

getImageBounds¹⁸⁺

getImageBounds(): common2D.Rect

Obtains the image boundaries of this text line. The image boundaries, equivalent to visual boundaries, depend on the font, font size, and characters. For example, for the string “ a b ” (which has a space before “a” and a space after “b”), only “a b” are visible to users, and therefore the image boundaries do not include these spaces at the beginning and end of the line. For the strings “j” and “E”, their image boundaries are different. Specifically, the width of the boundary for “j” is narrower than that for “E”, and the height of the boundary for “j” is taller than that for “E”.

NOTE

The following figure shows the image boundaries of the string “ a b “.

The following figure shows the image boundaries of the strings “j” and “E”.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
common2D.Rect	Image boundary of the text line.

Example

let imageBounds = lines[0].getImageBounds();

getTrailingSpaceWidth¹⁸⁺

getTrailingSpaceWidth(): number

Obtains the width of the spaces at the end of this text line.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Number of spaces at the end of the text line. The value is a floating point number.

Example

let trailingSpaceWidth = lines[0].getTrailingSpaceWidth();

getStringIndexForPosition¹⁸⁺

getStringIndexForPosition(point: common2D.Point): number

Obtains the index of a character at the specified position in the original string.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |point|common2D.Point|Yes|Position of the character.|

Return value

Type	Description
number	Index of the character in the text line. The value is an integer.

Example

let point : common2D.Point = { x: 15.0, y: 2.0 };
let index = lines[0].getStringIndexForPosition(point);

getOffsetForStringIndex¹⁸⁺

getOffsetForStringIndex(index: number): number

Obtains the offset of a character with the specified index in this text line.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |index|number|Yes|Index of the character. The value is an integer.|

Return value

Type	Description
number	Offset of the character with the specified index. The value is a floating point number.

Example

let offset = lines[0].getOffsetForStringIndex(3);

enumerateCaretOffsets¹⁸⁺

enumerateCaretOffsets(callback: CaretOffsetsCallback): void

Enumerates the offset and index of each character in a text line.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |callback|CaretOffsetsCallback|Yes|Custom function, which contains the offset and index of each character in the text line.|

Example

function callback(offset: number, index: number, leadingEdge: boolean): boolean {
  console.info('textLine: offset: ' + offset + ', index: ' + index + ', leadingEdge: ' + leadingEdge);
  return index > 50;
}
lines[0].enumerateCaretOffsets(callback);

getAlignmentOffset¹⁸⁺

getAlignmentOffset(alignmentFactor: number, alignmentWidth: number): number

Obtains the offset of this text line after alignment based on the alignment factor and alignment width.

System capability: SystemCapability.Graphics.Drawing

Parameters

|Name|Type|Mandatory|Description| |-|-|-|-| |alignmentFactor|number|Yes|Alignment factor, which determines how text is aligned. The value is a floating point number. A value less than or equal to 0.0 means that the text is left-aligned; a value between 0.0 and 0.5 means that the text is slightly left-aligned; the value 0.5 means that is text is centered; a value between 0.5 and 1 means that the text is slightly right-aligned; a value greater than or equal to 1.0 means that the text is right-aligned.| |alignmentWidth|number|Yes|Alignment width, that is, the width of the text line. The value is a floating point number. If the width is less than the actual width of the text line, 0 is returned.|

Return value

Type	Description
number	Offset required for alignment. The value is a floating point number.

Example

let alignmentOffset = lines[0].getAlignmentOffset(0.5, 500);

Run

Implements a unit for text layout.

Before calling any of the following APIs, you must use getGlyphRuns() of the TextLine class to create a Run object.

getGlyphCount

getGlyphCount(): number

Obtains the number of glyphs in this run.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
number	Number of glyphs. The value is an integer.

Example

let glyphs = runs[0].getGlyphCount();

getGlyphs

getGlyphs(): Array<number>

Obtains the index of each glyph in this run.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<number>	Array holding the index of each glyph in the run.

Example

let glyph = runs[0].getGlyphs();

getGlyphs¹⁸⁺

getGlyphs(range: Range): Array<number>

Obtains the index of each glyph in the specified range of this run.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
range	Range	Yes	Range of the glyphs, where range.start indicates the start position of the range, and range.end indicates the length of the range. If the length is 0, the range is from range.start to the end of the run. If range.end or range.start is set to a negative value, null, or undefined, undefined is returned.

Return value

Type	Description
Array<number>	Array holding the index of each glyph in the run.

Example

import { text } from "@kit.ArkGraphics2D"

function textFunc() {
  let glyphs = runs[0].getGlyphs(); // Obtain the index of all glyphs of the run.
  let glyphsRange = runs[0].getGlyphs ({start:1, end:2}); // Obtain the indices of glyphs in the range starting from position 1, with a length of 2.
  glyphsRange = runs[0].getGlyphs({start:-1, end:2}); // -1 is an invalid value, and undefined is returned.
  glyphsRange = runs[0].getGlyphs({start:0, end:-10}); // -10 is an invalid value, and undefined is returned.
  let glyphsNull = runs[0].getGlyphs(null); // null is an invalid value, and undefined is returned.
  let glyphsUndefined = runs[0].getGlyphs(undefined); // undefined is an invalid value, and undefined is returned.
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

getPositions

getPositions(): Array

Obtains the position of each glyph relative to the respective line in this run.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<common2D.Point>	Array holding the position of each glyph relative to the respective line in the run.

Example

let positions = runs[0].getPositions();

getPositions¹⁸⁺

getPositions(range: Range): Array

Obtains the position array of each glyph relative to the respective line within the specified range of this run.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
range	Range	Yes	Range of the glyphs, where range.start indicates the start position of the range, and range.end indicates the length of the range. If the length is 0, the range is from range.start to the end of the run. If range.end or range.start is set to a negative value, null, or undefined, undefined is returned.

Return value

Type	Description
Array<common2D.Point>	Array holding the position of each glyph relative to the respective line in the run.

Example

import { text } from "@kit.ArkGraphics2D";

function textFunc() {
  let positions = runs[0].getPositions(); // Obtain the positions of all glyphs in the run.
  let positionsRange = runs[0].getPositions({start:1, end:2}); // Obtain the positions of glyphs in the range starting from position 1, with a length of 2.
  positionsRange = runs[0].getPositions({start:-1, end:2}); // -1 is an invalid value, and undefined is returned.
  positionsRange = runs[0].getPositions({start:0, end:-10}); // -10 is an invalid value, and undefined is returned.
  let positionsNull = runs[0].getPositions(null); // null is an invalid value, and undefined is returned.
  let positionsUndefined = runs[0].getPositions(undefined); // undefined is an invalid value, and undefined is returned.
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

getOffsets

getOffsets(): Array

Obtains the offset of each glyph in this run relative to its index.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Array<common2D.Point>	Array holding the offset of each glyph in the run relative to its index.

Example

let offsets = runs[0].getOffsets();

getFont

getFont(): drawing.Font

Obtains the Font object of this run.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
drawing.Font	Font object of this run.

Example

let font = runs[0].getFont();

paint

paint(canvas: drawing.Canvas, x: number, y: number): void

Paints this run on the canvas with the coordinate point (x, y) as the upper left corner.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
canvas	drawing.Canvas	Yes	Target canvas.
x	number	Yes	X coordinate of the upper left corner. The value is a floating point number.
y	number	Yes	Y coordinate of the upper left corner. The value is a floating point number.

Example

import { drawing } from '@kit.ArkGraphics2D'
import { text } from "@kit.ArkGraphics2D"
import { common2D } from "@kit.ArkGraphics2D"
import { image } from '@kit.ImageKit';

function textFunc(pixelmap: PixelMap) {
  let canvas = new drawing.Canvas(pixelmap);
  runs[0].paint(canvas, 0, 0);
}

@Entry
@Component
struct Index {
  @State pixelmap?: PixelMap = undefined;
  fun: Function = textFunc;
  build() {
    Column() {
      Image(this.pixelmap).width(200).height(200);
      Button().onClick(() => {
        if (this.pixelmap == undefined) {
          const color: ArrayBuffer = new ArrayBuffer(160000);
          let opts: image.InitializationOptions = { editable: true, pixelFormat: 3, size: { height: 200, width: 200 } }
          this.pixelmap = image.createPixelMapSync(color, opts);
        }
        this.fun(this.pixelmap);
      })
    }
  }
}

getStringRange¹⁸⁺

getStringRange(): Range

Obtains the range of glyphs generated by this run.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
Range	Range of the glyphs, where start indicates the start position of the range, which is the index relative to the entire paragraph, and end indicates the length of the range.

Example

let runStringRange = runs[0].getStringRange();
let location = runStringRange.start;
let length = runStringRange.end;

getStringIndices¹⁸⁺

getStringIndices(range?: Range): Array<number>

Obtains an array of character indices for glyphs within a specified range of this run, where the indices are offsets relative to the entire paragraph.

System capability: SystemCapability.Graphics.Drawing

Parameters

Name	Type	Mandatory	Description
range	Range	No	Range of the glyphs, where range.start indicates the start position of the range, and range.end indicates the length of the range. If the length is 0, the range is from range.start to the end of the run. If range.end or range.start is set to a negative value, null, or undefined, undefined is returned. If this parameter is not passed, the entire run is obtained.

Return value

Type	Description
Array<number>	Array of character indices.

Example

import { text } from "@kit.ArkGraphics2D";

function textFunc() {
  let indices = runs[0].getStringIndices(); // Obtain the indices of all characters in the run.
  let indicesRange = runs[0].getStringIndices({start:1, end:2}); // Obtain the indices of characters in the range starting from position 1, with a length of 2.
  indicesRange = runs[0].getStringIndices({start:-1, end:2}); // -1 is an invalid value, and undefined is returned.
  indicesRange = runs[0].getStringIndices({start:0, end:-10}); // -10 is an invalid value, and undefined is returned.
  let indicesNull = runs[0].getStringIndices(null); // null is an invalid value, and undefined is returned.
  let indicesUndefined = runs[0].getStringIndices(undefined); // undefined is an invalid value, and undefined is returned.
}

@Entry
@Component
struct Index {
  fun: Function = textFunc;
  build() {
    Column() {
      Button().onClick(() => {
        this.fun();
      })
    }
  }
}

getImageBounds¹⁸⁺

getImageBounds(): common2D.Rect

Obtains the image boundary of this run. The image boundary, equivalent to a visual boundary, is related to the font, font size, and characters. For example, for the string “ a b ” (which has a space before “a” and a space after “b”), only “a b” are visible to users, and therefore the image boundary does not include these spaces at the beginning and end.

NOTE

The following figure shows the image boundaries of the string “ a b “.

The following figure shows the image boundaries of the strings “j” and “E”.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
common2D.Rect	Image boundary of the run.

Example

let bounds = runs[0].getImageBounds();

getTypographicBounds¹⁸⁺

getTypographicBounds(): TypographicBounds

Obtain the typographic boundaries of this run. These boundaries depend on the typographic font and font size, but not on the characters themselves. For example, for the string “ a b ” (which has a space before “a” and a space after “b”), the typographic boundaries include the spaces at the beginning and end of the line.

NOTE

The following figure shows the typographic boundaries of the string “ a b “.

The following figure shows the typographic boundaries of the strings “j” and “E”.

System capability: SystemCapability.Graphics.Drawing

Return value

Type	Description
TypographicBounds	Typographic boundaries of the run.

Example

let typographicBounds = runs[0].getTypographicBounds();

TextTab¹⁸⁺

Implements a paragraph-style text tab, which stores the alignment mode and position.

System capability: SystemCapability.Graphics.Drawing

Name	Type	Read Only	Optional	Description
alignment	TextAlign	Yes	No	Alignment mode of the text following the tab character in a paragraph. It can be set to LEFT, RIGHT, and CENTER defined in TextAlign. Other enumerated values have the effect of left alignment. The default value is left alignment.
location	number	Yes	No	Alignment position of the text following the tab character. The value is a floating point number, in px. The minimum value is 1.0. When the value is less than 1.0, the tab character is replaced with a space.

Example

alignment is CENTER, location is 200, and the text is “12/t345”.

alignment is LEFT, location is 100, and the text is “abccccccccc/tdef”.

alignment is RIGHT, location is 100, and the text is “aabcdef/tg hi/tjkl/tmno/tp qr”.

SystemFontType¹⁴⁺

Enumerates the font types, which can be combined through bitwise OR operations.

System capability: SystemCapability.Graphics.Drawing

|Name|Value|Description| |-|-|-| |ALL|1 << 0|All font types, including the system font type, style font type, and user-installed font type.| |GENERIC|1 << 1|System font type.| |STYLISH|1 << 2|Style font type. The style font type is designed for 2-in-1 devices.| |INSTALLED|1 << 3|Font type that has been installed.| |CUSTOMIZED¹⁸⁺|1 << 4|Custom font type.|

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArkGraphics 2D

harmony 鸿蒙BufferHandle

harmony 鸿蒙ColorSpacePrimaries

harmony 鸿蒙DisplaySoloist_ExpectedRateRange

harmony 鸿蒙_drawing

harmony 鸿蒙NativeColorSpaceManager

harmony 鸿蒙NativeDisplaySoloist

harmony 鸿蒙NativeVsync

harmony 鸿蒙NativeWindow

harmony 鸿蒙OH_Drawing_BitmapFormat
