Silent Access via DatamgrService

When to Use

In a typical cross-application data access scenario, the data provider may be started multiple times.

To minimize the startup times of the data provider and speed up the access, OpenHarmony provides the silent access feature, which allows access to the database without starting the data provider.

In silent access, DatamgrService accesses and modifies data without starting the data provider.

However, DatamgrService supports basic database access and data hosting only. If service processing is required, the service processing logic must be encapsulated into APIs for the data consumer to call.

If the service processing is too complex to be encapsulated, use DataShareExtensionAbility to start the data provider.

Working Principles

DatamgrService can serve as a proxy to access the following data:

• Persistent data: data in the database of the data provider. It is stored in the sandbox directory of the data provider and can be shared in declaration mode by the data provider. Persistent data is configured as data tables for access.

• Process data: process data, in the JSON or byte format, managed by DatamgrService. It is stored in the DatamgrService sandbox directory, and is automatically deleted 10 days after no subscription.

• Dynamic data: data stored in the memory of a device. It is automatically deleted after the device is restarted. The dynamic data refers to only the data set by enableSilentProxy and disableSilentProxy.

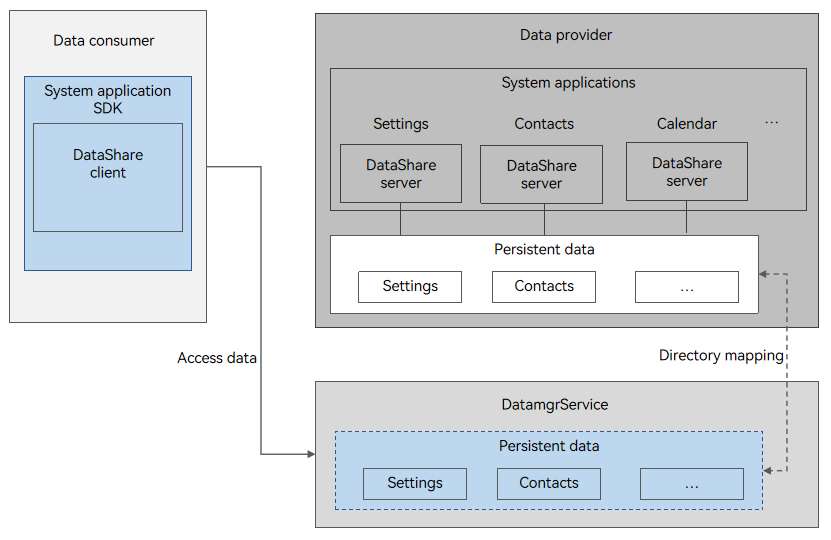

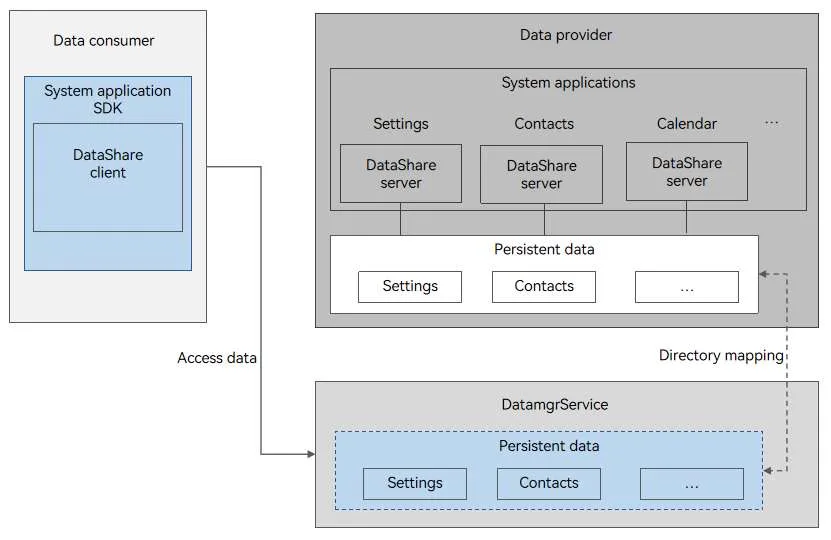

Figure 1 Silent access

• Different from DataShareExtensionAbility, in silent access, DatamgrService obtains the access rules configured by the data provider through directory mapping, performs preprocessing based on rules, and accesses the database.

• The URI of the data consumer must be in the datashareproxy://{bundleName}/{dataPath} format.

DatamgrService obtains the data provider application based on bundleName, reads the configuration, verifies the permission, and accesses data.

dataPath identifies the data. It can be customized and must be unique in the same data provider application.

• You can add parameters to the URI to specify the access mode and target object. When adding parameters to a URI, note that the URI must be in the datashareproxy://{bundleName}/{dataPath}?{arg1}&{arg2} format. Otherwise, the parameters do not take effect.

The parameters to add start with a question mark (?) and separated by an ampersand (&). Consecutive symbols (for example, ???? or &&&) are considered as one. Currently, only the appIndex and user parameters are supported.

• appIndex specifies the index of an application clone. The value must be an integer starting from 1. This parameter takes effect only for cloned applications. For details about appIndex, see BundleInfo. If appIndex is 0 or left empty, the data consumer accesses the application of the data provider.

  Currently, cloned applications are supported only in silent access mode.

• The value of user must be an integer. It is the user ID of the data provider. For details about the definition of user and how to obtain it, see user. If user is not set, the user ID of the data consumer is used. Currently, cross-user access supports the add, delete, modify, and query operations, and does not support subscription notification.

  Currently, only the main space and privacy space support cross-user access, and the data consumer must have the ohos.permission.INTERACT_ACROSS_LOCAL_ACCOUNTS permission.

Constraints

• Currently, only the RDB stores support silent access.
• The system supports a maximum of 32 concurrent query operations. Excess query requests need to be queued for processing.
• The proxy is not allowed to create a database for persistent data. To create a database, you must start the data provider.
• If the data provider is an application with a normal signature, the data read/write permission must be system_basic or higher.

Available APIs

Most of the APIs for silent access are executed asynchronously in callback or promise mode. In the following table, callback-based APIs are used as an example. For more information about the APIs, see Data Sharing.

Universal APIs

APIs for Accessing Persistent Data

APIs for Accessing Process Data

APIs for Accessing Dynamic Data

Accessing Persistent Data

The following walks you through on how to share an RDB store.

Data Provider Application Development

1. In the module.json5 file, set the data to be shared in proxyData. For details about the configuration, see module.json5 Configuration File.

Table 1 proxyData in module.json5

|Name |Description |Mandatory| |———————–|—————————————-|—-| |uri |URI of the data proxy, which is the unique identifier for cross-application data access. |Yes | |requiredReadPermission|Permission required for reading data from the data proxy. If this parameter is not set, other applications are not allowed to access data. For details about the permissions, see Application Permissions.
NOTE: The permission constraints for silent access are different from that for DataShareExtensionAbility. It is important to understand the difference and prevent confusion. For details, see DataShareExtensionAbility. |No | |requiredWritePermission|Permission required for writing data to the data proxy. If this parameter is not set, other applications are not allowed to write data to the data proxy. For details about the permissions, see Application Permissions.
NOTE: The permission constraints for silent access are different from that for DataShareExtensionAbility. It is important to understand the difference and prevent confusion. For details, see DataShareExtensionAbility. |No | |metadata |Metadata of the data source, including the name and resource fields.
The name field identifies the configuration, which has a fixed value of dataProperties.
The value of resource is $profile:{fileName}, indicating that the name of the configuration file is {fileName}.json.|Yes |

A data table contains all the data accessible through a URI. Ensure that all data in a table falls under the same permission scope. To effectively implement data isolation at the table level, you are advised to store data with different scopes in separate tables and configure appropriate permission constraints for each table. For security-critical data, you are advised to configure an allowlist of data consumers to prevent unauthorized access. For details, see the allowLists field in the my_config.json example.

module.json5 example

   // The following uses settingsdata as an example.
   "proxyData": [
     {
       "uri": "datashareproxy://com.ohos.settingsdata/entry/settingsdata/USER_SETTINGSDATA_SECURE",
       // Configure permissions based on actual situation. The permissions configured here are examples only.
       "requiredReadPermission": "ohos.permission.MANAGE_SECURE_SETTINGS",
       "requiredWritePermission": "ohos.permission.MANAGE_SECURE_SETTINGS",
       "metadata": {
         "name": "dataProperties",
         "resource": "$profile:my_config"
       }
     }
   ]

Table 2 Fields in my_config.json

|Name|Description |Mandatory| |—–|—————————————-|—-| |path|Data source path, in the Database_name/Table_name format. Currently, only RDB stores are supported. |Yes | |type|Database type. Currently, only rdb is supported. |Yes | |scope|Scope of the database.
1. module indicates that the database is located in this module.
2. application indicates that the database is located in this application.|No | |allowLists |List of applications that can access the data. allowLists consists of two fields: appIdentifier and onlyMain.
It allows a maximum of 256 records. In cross-application data access, the data consumers are checked against the settings here. If the data consumer is not listed in allowlists, the data access will be rejected. If allowLists is not configured, allowlist verification is skipped. No matter whether allowLists is configured, the read and write permissions in Table 1 are always verified.
- appIdentifier: unique identifier (string) of the application allocated by the cloud. The data provider should obtain it from the data consumer.
For details about appIdentifier, see SignatureInfo.
- onlyMain: a Boolean value indicating whether the data is accessible only to the application. The value true means only the application can access the data. The value false means both the application and its clone can access the data. This feature is available only to silent access.|No|

my_config.json example

   {
     "path": "DB00/TBL00",
     "type": "rdb",
     "scope": "application",
     "allowLists":[
           {"appIdentifier": "appIdentifier1", "onlyMain": false},
           {"appIdentifier": "appIdentifier2", "onlyMain": true}
     ]
   }

Data Consumer Application Development

1. Import dependencies.

   import { dataShare, dataSharePredicates, ValuesBucket } from '@kit.ArkData';
   import { UIAbility } from '@kit.AbilityKit';
   import { window } from '@kit.ArkUI';
   import { BusinessError } from '@kit.BasicServicesKit'

1. Define the URI string for communicating with the data provider.

   let dseUri = ('datashareproxy://com.ohos.settingsdata/entry/settingsdata/USER_SETTINGSDATA_SECURE');

1. Create a DataShareHelper instance.

   let dsHelper: dataShare.DataShareHelper|undefined = undefined;
   let abilityContext: Context;

   export default class EntryAbility extends UIAbility {
     onWindowStageCreate(windowStage: window.WindowStage) {
       abilityContext = this.context;
       dataShare.createDataShareHelper(abilityContext, dseUri, {
         isProxy: true
       }, (err, data) => {
         dsHelper = data;
       });
     }
   }

1. Use the DataShareHelper APIs to access the services provided by the provider, for example, adding, deleting, modifying, and querying data.

   // Construct a piece of data.
   let key1 = 'name';
   let key2 = 'age';
   let key3 = 'isStudent';
   let key4 = 'Binary';
   let valueName1 = 'ZhangSan';
   let valueName2 = 'LiSi';
   let valueAge1 = 21;
   let valueAge2 = 18;
   let valueIsStudent1 = false;
   let valueIsStudent2 = true;
   let valueBinary = new Uint8Array([1, 2, 3]);
   let valuesBucket: ValuesBucket = { key1: valueName1, key2: valueAge1, key3: valueIsStudent1, key4: valueBinary };
   let updateBucket: ValuesBucket = { key1: valueName2, key2: valueAge2, key3: valueIsStudent2, key4: valueBinary };
   let predicates = new dataSharePredicates.DataSharePredicates();
   let valArray = ['*'];
   if (dsHelper != undefined) {
     // Insert a piece of data.
     (dsHelper as dataShare.DataShareHelper).insert(dseUri, valuesBucket, (err, data) => {
       console.info(`dsHelper insert result:${data}`);
     });
     // Update data.
     (dsHelper as dataShare.DataShareHelper).update(dseUri, predicates, updateBucket, (err, data) => {
       console.info(`dsHelper update result:${data}`);
     });
     // Query data.
     (dsHelper as dataShare.DataShareHelper).query(dseUri, predicates, valArray, (err, data) => {
       console.info(`dsHelper query result:${data}`);
     });
     // Delete data.
     (dsHelper as dataShare.DataShareHelper).delete(dseUri, predicates, (err, data) => {
       console.info(`dsHelper delete result:${data}`);
     });
   }

1. Subscribe to data.

   function onCallback(err: BusinessError, node: dataShare.RdbDataChangeNode) {
     console.info("uri " + JSON.stringify(node.uri));
     console.info("templateId " + JSON.stringify(node.templateId));
     console.info("data length " + node.data.length);
     for (let i = 0; i < node.data.length; i++) {
       console.info("data " + node.data[i]);
     }
   }

   let key21: string = "p1";
   let value21: string = "select * from TBL00";
   let key22: string = "p2";
   let value22: string = "select name from TBL00";
   let template: dataShare.Template = {
     predicates: {
       key21: value21,
       key22: value22,
     },
     scheduler: ""
   }
   if(dsHelper != undefined)
   {
     (dsHelper as dataShare.DataShareHelper).addTemplate(dseUri, "111", template);
   }
   let templateId: dataShare.TemplateId = {
     subscriberId: "111",
     bundleNameOfOwner: "com.ohos.settingsdata"
   }
   if(dsHelper != undefined) {
     // When DatamgrService modifies data, onCallback is invoked to return the data queried based on the rules in the template.
     let result: Array<dataShare.OperationResult> = (dsHelper as dataShare.DataShareHelper).on("rdbDataChange", [dseUri], templateId, onCallback);
   }

Accessing Process Data

The following walks you through on how to host process data.

(Optional) Data Provider Application Development

In the module.json5 file, set the data to be hosted in proxyData. For details about the configuration, see module.json5 Configuration File.

NOTE

• The configuration of proxyData is optional.
• If proxyData is not configured, the hosted data cannot be accessed by other applications.

Table 3 proxyData in module.json5

module.json5 example

// The following is an example only. Configure it as required.
"proxyData": [
  {
    "uri": "datashareproxy://com.acts.ohos.data.datasharetest/weather",
    // Configure permissions based on actual situation. The permissions configured here are examples only.
    "requiredReadPermission": "ohos.permission.READ_WEATHER_DATA",
    "requiredWritePermission": "ohos.permission.KEEP_BACKGROUND_RUNNING"
  }
]

Data Consumer Application Development

1. Import dependencies.

   import { dataShare } from '@kit.ArkData';
   import { UIAbility } from '@kit.AbilityKit';
   import { window } from '@kit.ArkUI';
   import { BusinessError } from '@kit.BasicServicesKit';

1. Define the URI string for communicating with the data provider.

   let dseUri = ('datashareproxy://com.acts.ohos.data.datasharetest/weather');

1. Create a DataShareHelper instance.

   let dsHelper: dataShare.DataShareHelper|undefined = undefined;
   let abilityContext: Context;

   export default class EntryAbility extends UIAbility {
     onWindowStageCreate(windowStage: window.WindowStage) {
       abilityContext = this.context;
       dataShare.createDataShareHelper(abilityContext, dseUri, {isProxy : true}, (err, data) => {
         dsHelper = data;
       });
     }
   }

1. Use the DataShareHelper APIs to access the services provided by the provider, for example, adding, deleting, modifying, and querying data.

   // Construct two pieces of data. The first data is not configured with proxyDatas and cannot be accessed by other applications.
   let data : Array<dataShare.PublishedItem> = [
     {key:"city", subscriberId:"11", data:"xian"},
     {key:"datashareproxy://com.acts.ohos.data.datasharetest/weather", subscriberId:"11", data:JSON.stringify("Qing")}];
   // Publish data.
   if (dsHelper != undefined) {
     let result: Array<dataShare.OperationResult> = await (dsHelper as dataShare.DataShareHelper).publish(data, "com.acts.ohos.data.datasharetestclient");
   }

1. Subscribe to data.

   function onPublishCallback(err: BusinessError, node:dataShare.PublishedDataChangeNode) {
     console.info("onPublishCallback");
   }
   let uris:Array<string> = ["city", "datashareproxy://com.acts.ohos.data.datasharetest/weather"];
   if (dsHelper != undefined) {
     let result: Array<dataShare.OperationResult> = (dsHelper as dataShare.DataShareHelper).on("publishedDataChange", uris, "11", onPublishCallback);
   }

Accessing Dynamic Data

Only the data provider is involved. The following walks you through on how to dynamically enable silent access.

Data Provider Application Development

The data provider calls the enableSilentProxy API to dynamically enable silent access. This API must be used with the isSilentProxyEnable field in the data_share_config.json file. For details, see data_share_config.json configuration.

NOTE

• The configuration of the isSilentProxyEnable field is optional. The default value is true, indicating that silent access is enabled.
• To verify whether silent access is enabled, the system first checks the silent access status set by the enableSilentProxy or disableSilentProxy API called, and then checks the value of isSilentProxyEnable in the data_share_config.json file.
• If enableSilentProxy or disableSilentProxy has not been called, the value of isSilentProxyEnable in the data_share_config.json file is preferentially checked.
• Silent access is enabled by default if enableSilentProxy or disableSilentProxy has not been called and isSilentProxyEnable in the data_share_config.json file is not configured.

1. Import dependencies.

   import { dataShare } from '@kit.ArkData';
   import { UIAbility } from '@kit.AbilityKit';
   import { window } from '@kit.ArkUI';

1. Define the URI string for communicating with the data provider.

   let dseUri = ('datashareproxy:///com.ohos.settingsdata/entry/DB00/TBL00');

1. Create a DataShareHelper instance.

   let abilityContext: Context;

   export default class EntryAbility extends UIAbility {
     onWindowStageCreate(windowStage: window.WindowStage) {
       abilityContext = this.context;
       dataShare.enableSilentProxy(abilityContext, dseUri);
     }
   }
